Seat Beat Warning: Notes

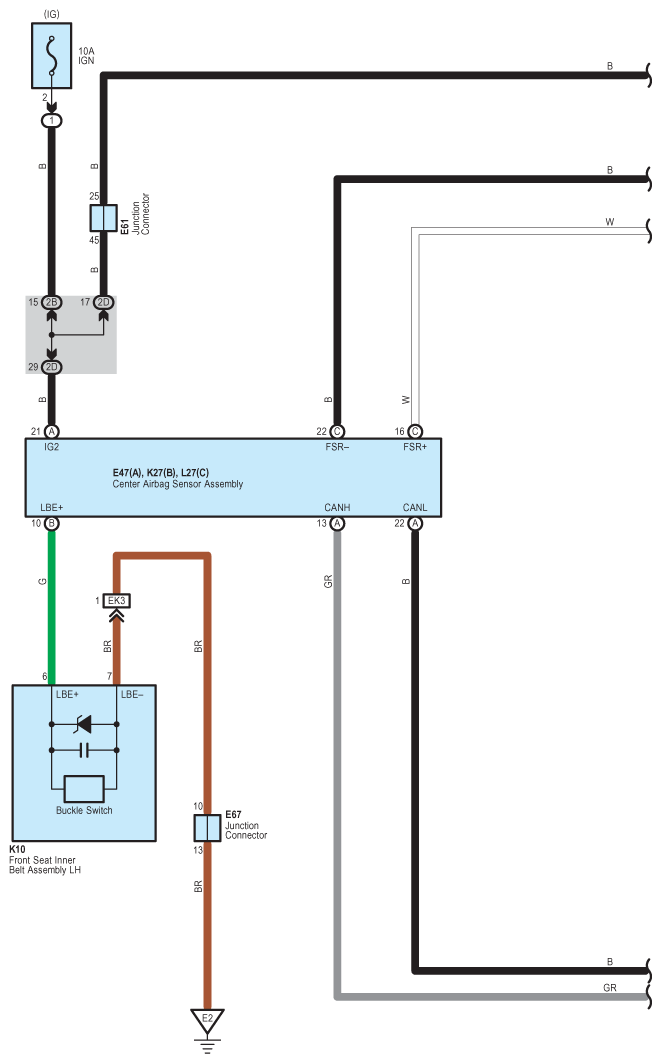

Fig 1: Seat Beat Warning - Circuit Diagram (1 Of 5)
G07575672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

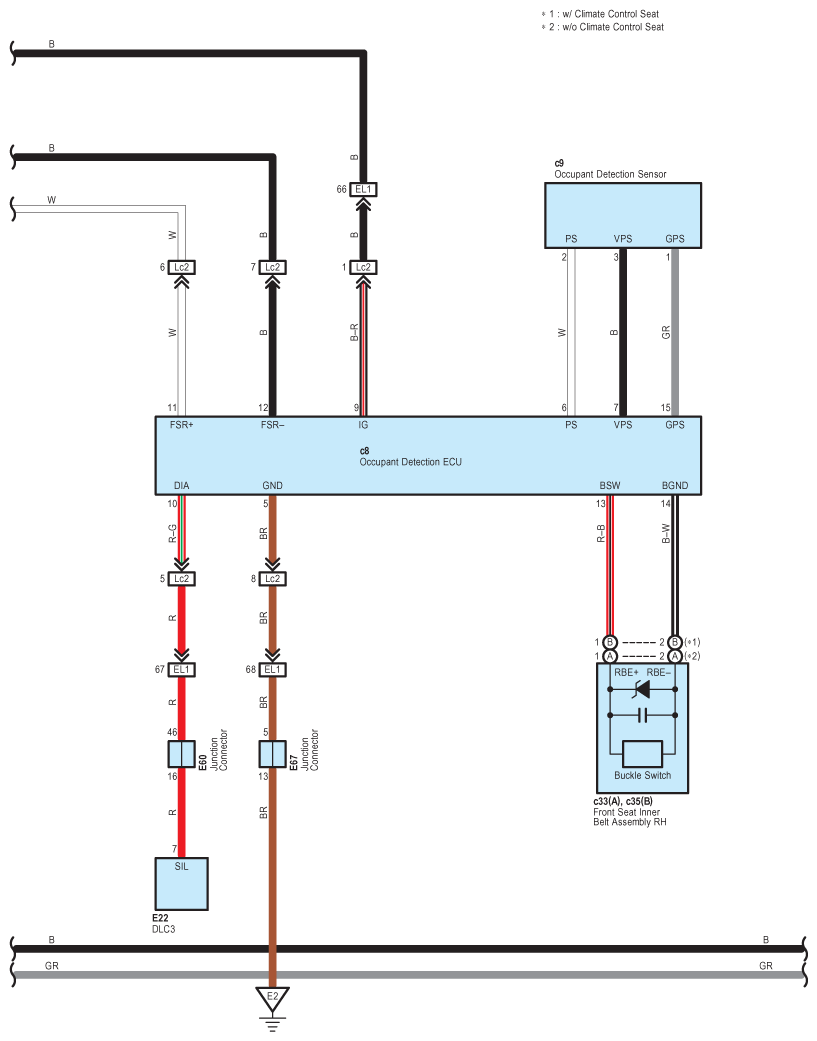

Fig 2: Seat Beat Warning - Circuit Diagram (2 Of 5)
G07575673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Seat Beat Warning - Circuit Diagram (3 Of 5)
G07575674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

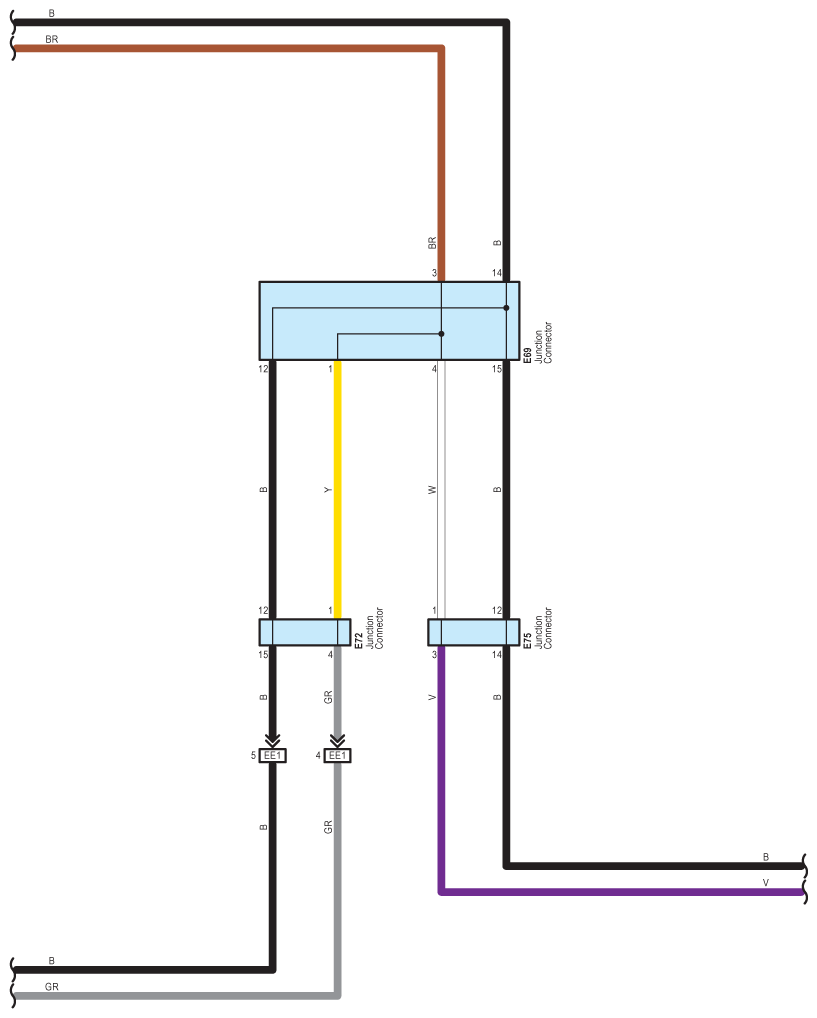

Fig 4: Seat Beat Warning - Circuit Diagram (4 Of 5)
G07575675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

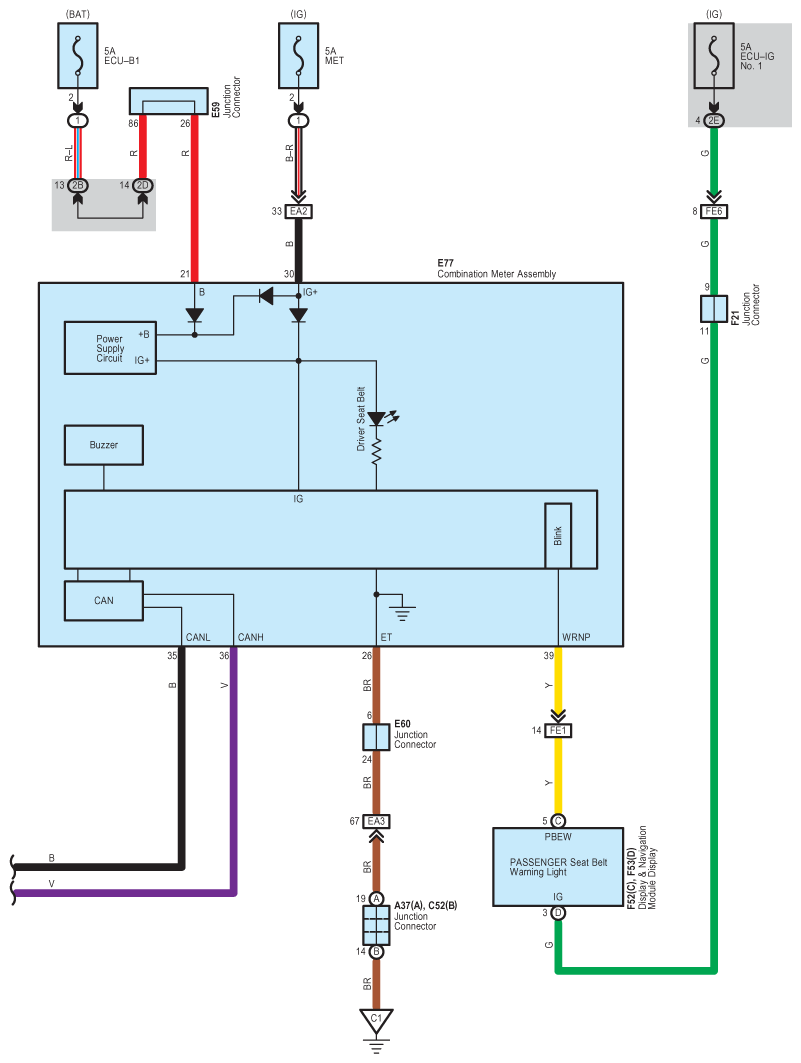

Fig 5: Seat Beat Warning - Circuit Diagram (5 Of 5)
G07575676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
