Power Steering Oil Pressure Switch: Components: Illustration

Fig 1: Identifying Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (1 Of 2)
GTY120873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

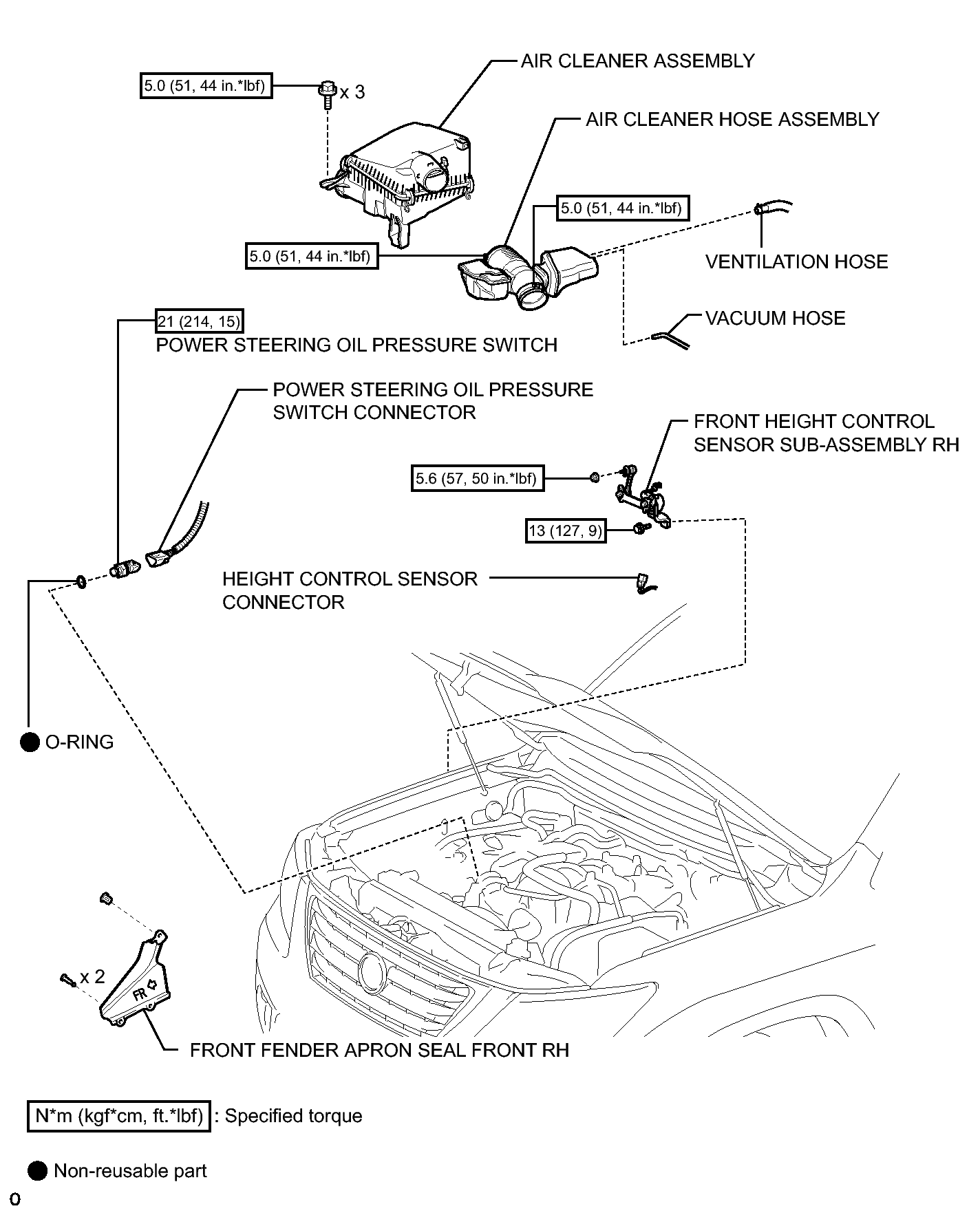

Fig 1: Identifying Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (2 Of 2)
GTY121001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
