Driver Side Junction Block
WARNING: This page is about a different car, the 2010 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

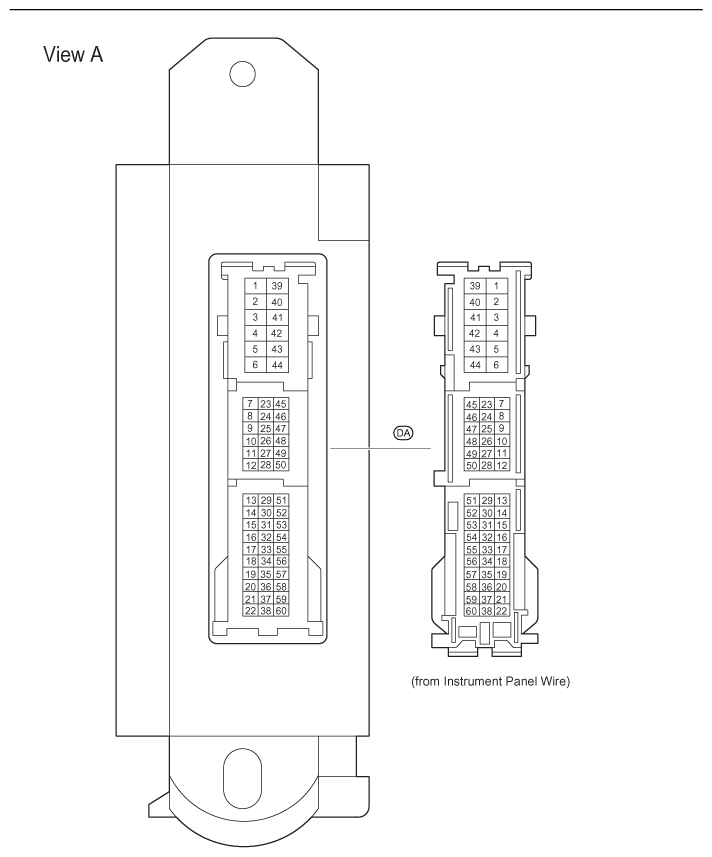

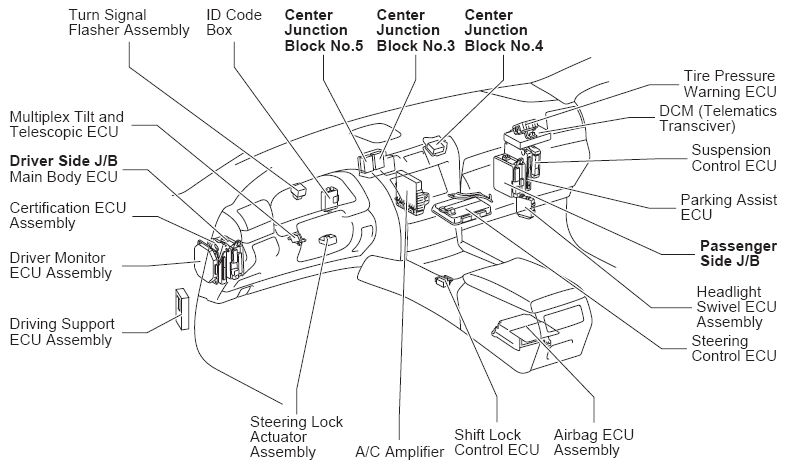

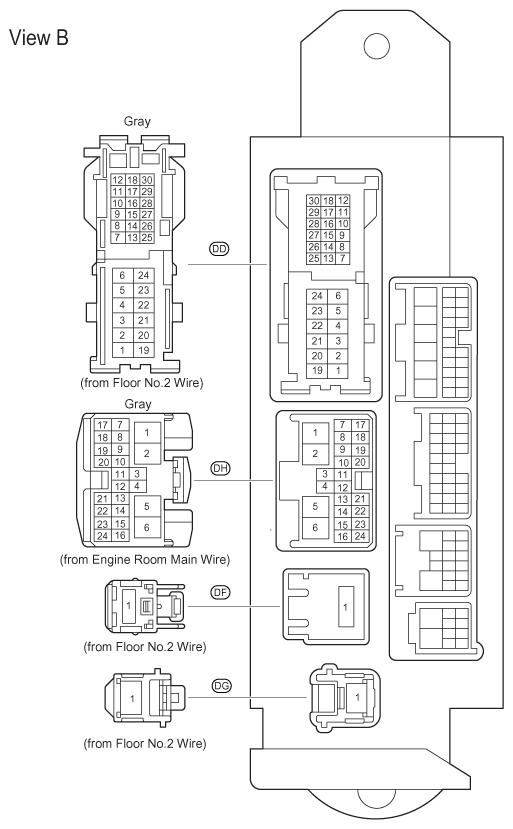

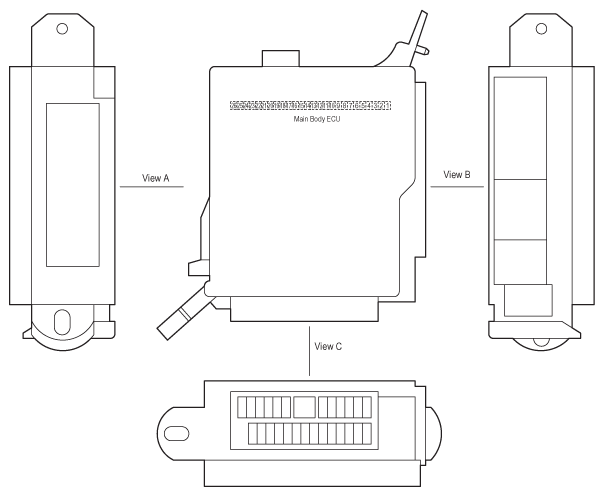

Cowl Side Left (See Figure)

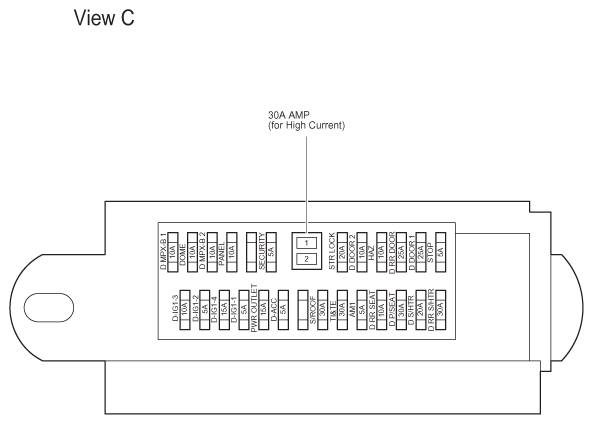

DRIVER SIDE J/B FUSE IDENTIFICATION LEGEND
| System | |
|---|---|
| AM1 | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | |
| Combination Meter | |
| Door Lock Control | |
| Illumination | |
| Interior Light | |
| Power Seat (Driver's Seat) | |
| Power Seat (Front Passenger's Seat) | |
| Power Seat (Rear Passenger's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Trunk Opener and Closer | |
| Power Window | |
| Remote Control Mirror | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| D-ACC | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | |
| Combination Meter | |
| Door Lock Control | |
| Illumination | |
| Interior Light | |
| Power Seat (Driver's Seat) | |
| Power Seat (Front Passenger's Seat) | |
| Power Seat (Rear Passenger's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Trunk Opener and Closer | |
| Power Window | |
| Remote Control Mirror | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| D-IG1-1 | Adaptive Front-Lighting System |
| Automatic Light Control and Light Auto Turn Off System | |
| Dynamic Radar Cruise Control | |
| Electric Tension Reducer | |
| Fog Light | |
| Headlight | |
| Headlight Cleaner | |
| Heated Steering Wheel System | |
| Illumination | |
| Lane Keeping Assist | |
| Power Tilt and Power Telescopic | |
| Pre-Collision System | |
| Remote Control Mirror | |
| Taillight | |
| Turn Signal and Hazard Warning Light | |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | |
| VGRS System | |
| Wiper and Washer | |
| D-IG1-2 | Dynamic Radar Cruise Control |
| Lane Keeping Assist | |
| Pre-Collision System | |
| SECURITY | Power Seat (Driver's Seat) |
| Power Tilt and Power Telescopic | |
| Power Trunk Opener and Closer | |
| Power Window | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| STOP | Air Suspension |
| Cruise Control | |
| Dynamic Radar Cruise Control | |
| Electric Parking Brake | |
| Hybrid System and Shift Control System | |
| Lane Keeping Assist | |
| Pre-Collision System | |
| Shift Lock | |
| Smart Access System with Push-Button Start | |
| Stop Light | |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | |
| D DOOR 2 | Door Closer |
| Door Lock Control | |
| Illumination | |
| Interior Light | |
| Power Seat (Driver's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Window | |
| Rear Window Defogger and Mirror Heater | |
| Remote Control Mirror | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| D MPX-B 1 | Adaptive Front-Lighting System |
| Door Closer | |
| Door Lock Control | |
| Garage Door Opener | |
| Heated Steering Wheel System | |
| Illumination | |
| Interior Light | |
| Power Seat (Driver's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Window | |
| Rear Window Defogger and Mirror Heater | |
| Remote Control Mirror | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| D MPX-B 2 | Active Stabilizer Suspension System |
| Adaptive Front-Lighting System | |
| Advanced Parking Guidance System | |
| Air Suspension | |
| Audio System and LEXUS Navigation System | |
| Brake Hold System | |
| Combination Meter | |
| Cruise Control | |
| Door Lock Control | |
| Dynamic Radar Cruise Control | |
| Electric Parking Brake | |
| Engine Control | |
| EPS | |
| Fog Light | |
| Fuel Lid Opener | |
| Headlight | |
| Hybrid System and Shift Control System | |
| Illumination | |
| Lane Keeping Assist | |
| LEXUS ENFORM or Safety Connect | |
| Power Seat (Front Passenger's Seat) | |
| Power Seat (Rear Passenger's Seat) | |
| Pre-Collision System | |
| Rear Seat Entertainment System (Console Type) | |
| Rear Seat Entertainment System (Roof Type) | |
| Seat Belt Warning | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| SRS | |
| Stop Light | |
| Taillight | |
| Tire Pressure Warning System | |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | |
| VGRS System | |
| D RR SEAT | Vibration Seat |
| D-IG1-3 | Active Stabilizer Suspension System |
| Air Conditioning | |
| Air Suspension | |
| Automatic Glare-Resistant EC Mirror | |
| Automatic Light Control and Light Auto Turn Off System | |
| Brake Hold System | |
| Climate Control Seat (Driver's Seat and Front Passenger's Seat) | |
| Combination Meter | |
| Cruise Control | |
| Door Closer | |
| Door Lock Control | |
| Dynamic Radar Cruise Control | |
| Electric Parking Brake | |
| Headlight | |
| Hybrid System and Shift Control System | |
| Illumination | |
| Interior Light | |
| Lane Keeping Assist | |
| Power Seat (Driver's Seat) | |
| Power Seat (Front Passenger's Seat) | |
| Power Seat (Rear Passenger's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Trunk Opener and Closer | |
| Power Window | |
| Pre-Collision System | |
| Rear Window Defogger and Mirror Heater | |
| Remote Control Mirror | |
| Shift Lock | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| Turn Signal and Hazard Warning Light | |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | |
| Wiper and Washer | |
| DOME | Clock |
| Interior Light | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| HAZ | Turn Signal and Hazard Warning Light |
| OBD | Data Link Connector 3 |
| PANEL | Illumination |
| D-IG1-4 | Heated Steering Wheel System |
| PWR OUTLET | Cigarette Lighter and Power Outlet (12V) |
| D S/HTR | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| Illumination | |
| STR LOCK | Smart Access System with Push-Button Start |
| D DOOR 1 | Door Closer |
| Door Lock Control | |
| Illumination | |
| Interior Light | |
| Power Seat (Driver's Seat) | |
| Power Shoulder Belt Anchorage | |
| Power Tilt and Power Telescopic | |
| Power Window | |
| Rear Window Defogger and Mirror Heater | |
| Remote Control Mirror | |
| Sliding Roof | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| D RR DOOR | Air Conditioning |
| Door Closer | |
| Door Lock Control | |
| Illumination | |
| Interior Light | |
| Power Seat (Rear Passenger's Seat) | |
| Power Window | |
| Rear Door Sunshade | |
| Smart Access System with Push-Button Start | |
| Theft Deterrent | |
| AMP | Audio System and LEXUS Navigation System |
| Rear Seat Entertainment System (Console Type) | |
| Rear Seat Entertainment System (Roof Type) | |
| D P/SEAT | Power Seat (Driver's Seat) |
| D RR S/HTR | Climate Control Seat (Rear Passenger's Seat) |
| S/ROOF | Sliding Roof |
| TI&TE | Power Tilt and Power Telescopic |
Cowl Side Left (See Figure)
