Fusible Link Block Assembly No. 1
WARNING: This page is about a different car, the 2010 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

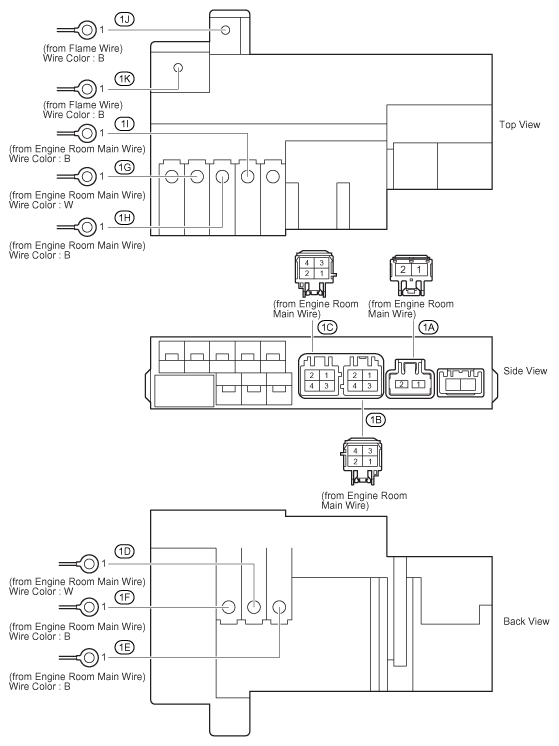

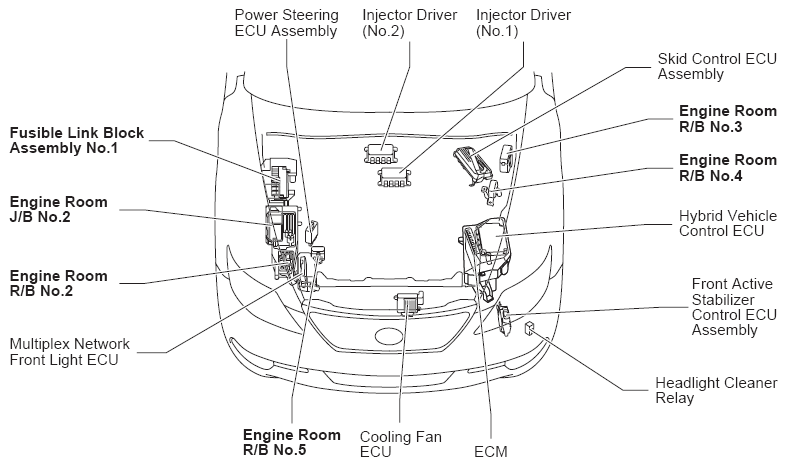

Engine Compartment Right (See Figure)

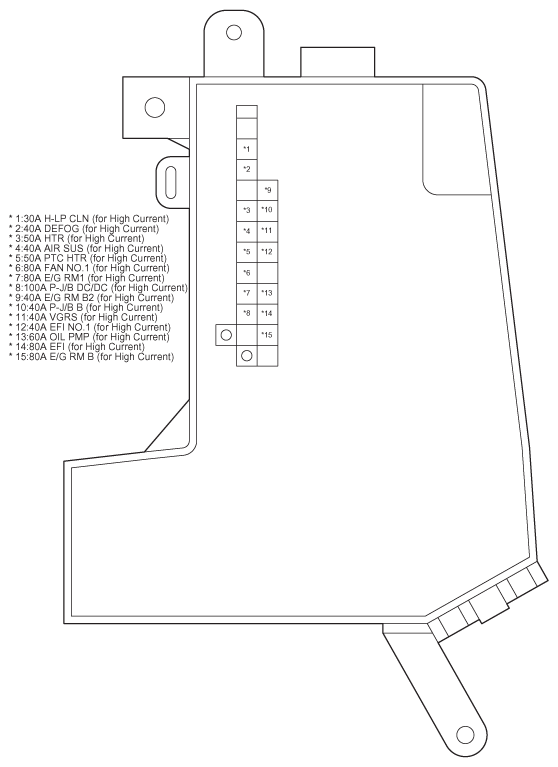

FUSIBLE LINK BLOCK ASSEMBLY NO. 1 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 10A | E/G R/M-IG1-1 | Air Conditioning |
| 30A | H-LP CLN | Headlight Cleaner |
| 40A | AIR SUS | Air Suspension |
| 40A | DEFOG | Rear Window Defogger and Mirror Heater |
| 40A | VGRS | VGRS System |
| 50A | HTR | Air Conditioning |
| 60A | OIL PMP | Hybrid System and Shift Control System |
| 80A | E/G RM 1 | Air Conditioning |
| 80A | E/G RM B | Automatic Light Control and Light Auto Turn Off System |
| Headlight | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 80A | E/G RM1 | Fog Light |
| Smart Access System with Push-Button Start | ||
| 80A | EFI | Engine Control |
| Smart Access System with Push-Button Start | ||
| 80A | FAN NO.1 | Cooling Fan |
| 100A | P-J/B DC/DC | Smart Access System with Push-Button Start |
