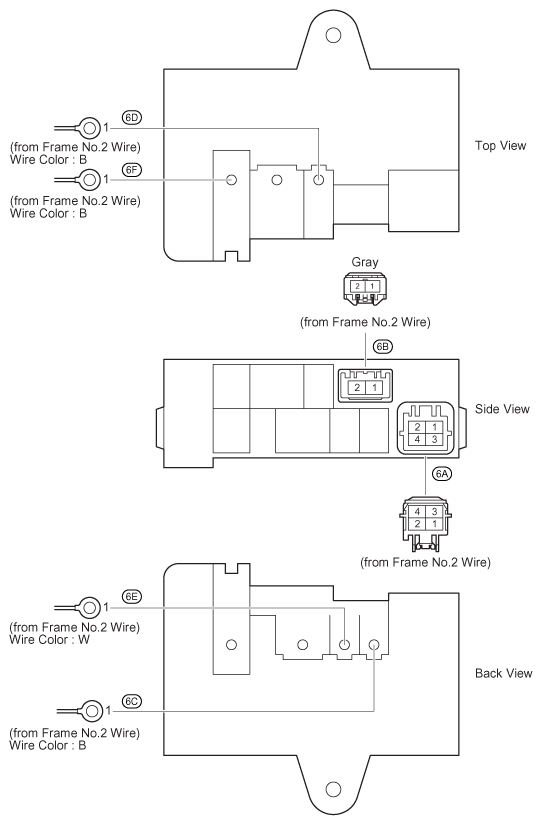

Fusible Link Block Assembly No. 2
WARNING: This page is about a different car, the 2010 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Luggage Room Left (See Body )

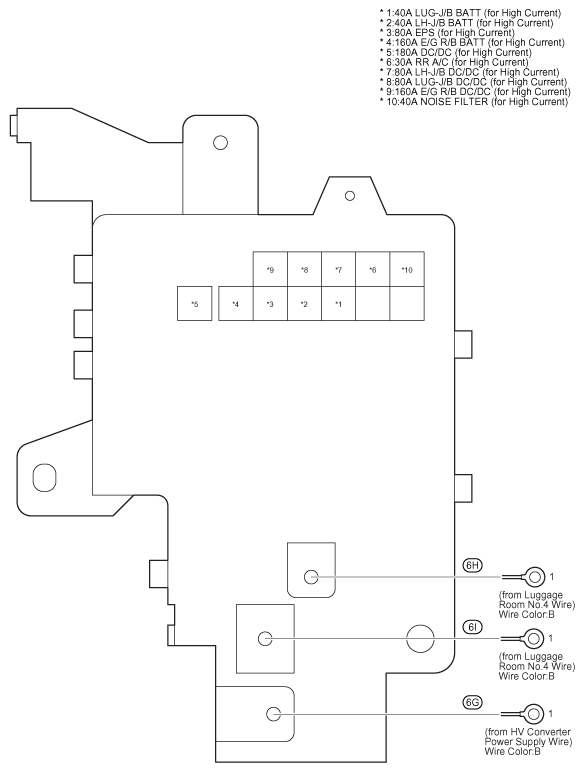

FUSIBLE LINK BLOCK ASSEMBLY NO. 2 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 30A | RR A/C | Air Conditioning |
| 40A | LUG-J/B BATT | Power Outlet (115V) |
| 80A | EPS | EPS |
| Hybrid System and Shift Control System | ||
| 80A | LH-J/B DC/DC | Illumination |
| Smart Access System with Push-Button Start | ||
| 80A | LUG-J/B DC/DC | Hybrid System and Shift Control System |
| 180A | DC/DC | Hybrid System and Shift Control System |
