Pattern Select Switch: Removal: Removal

  1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH  . Refer to REMOVAL - Step 7 .
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 11 .
  3. REMOVE PARKING BRAKE HOLE COVER  . Refer to REMOVAL - Step 13 .
  4. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY  . Refer to REMOVAL - Step 14 .
  5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

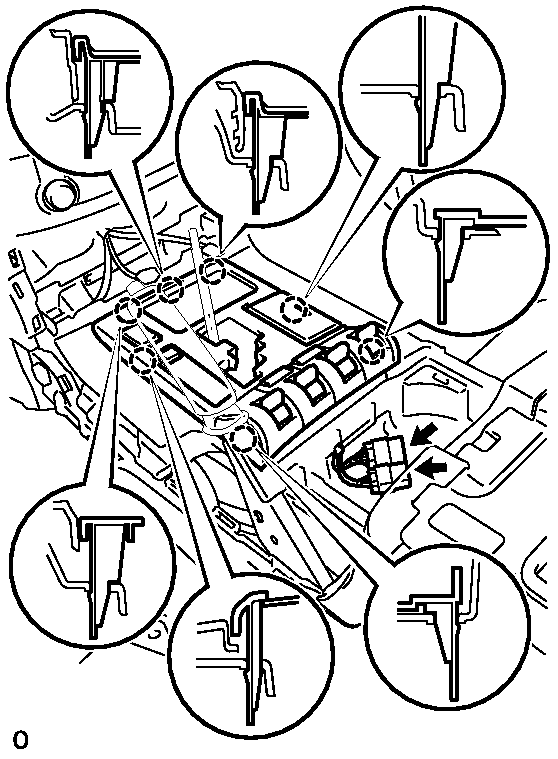

    Fig 1: Identifying Position Indicator Housing Assembly
    GTY128207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 connectors.
    2. Detach the 7 claws and remove the position indicator housing.
  6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY

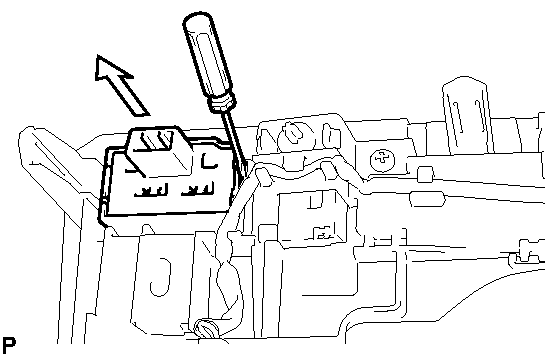

    Fig 2: Removing No. 1 Pattern Select Switch Assembly
    GTY149189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Using a small screwdriver, detach the 2 claws and remove the pattern select switch from the position indicator housing.
