Audio and Visual System (w/o Navigation System)

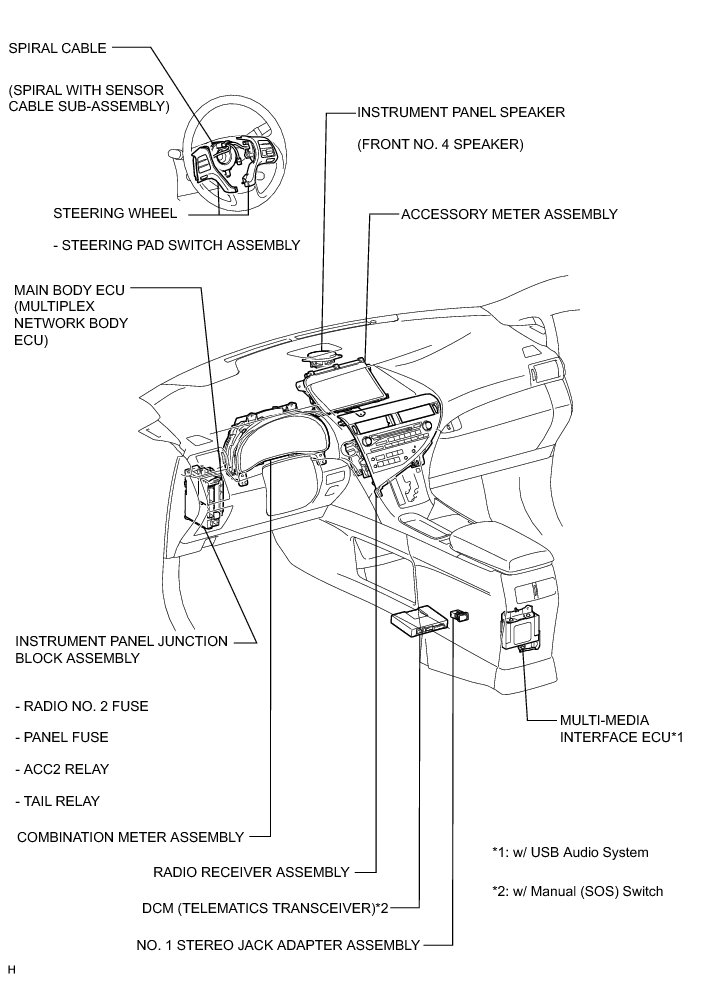

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): PARTS LOCATION
