Parts Location: Illustration

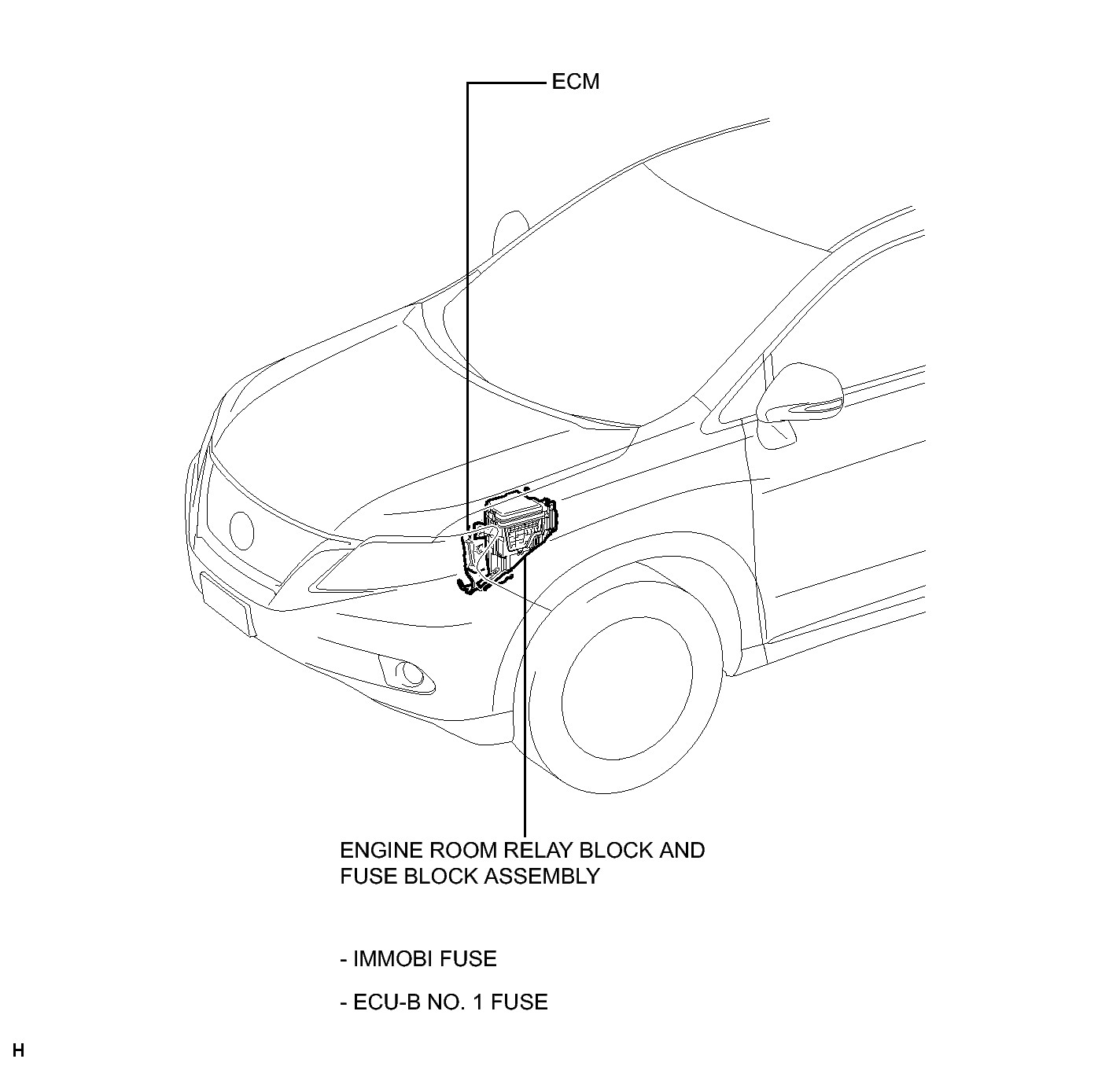

Fig 1: Identifying Smart Access System With Push-Button Start (for Entry Function) Components Location (1 of 4)
GTY278144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

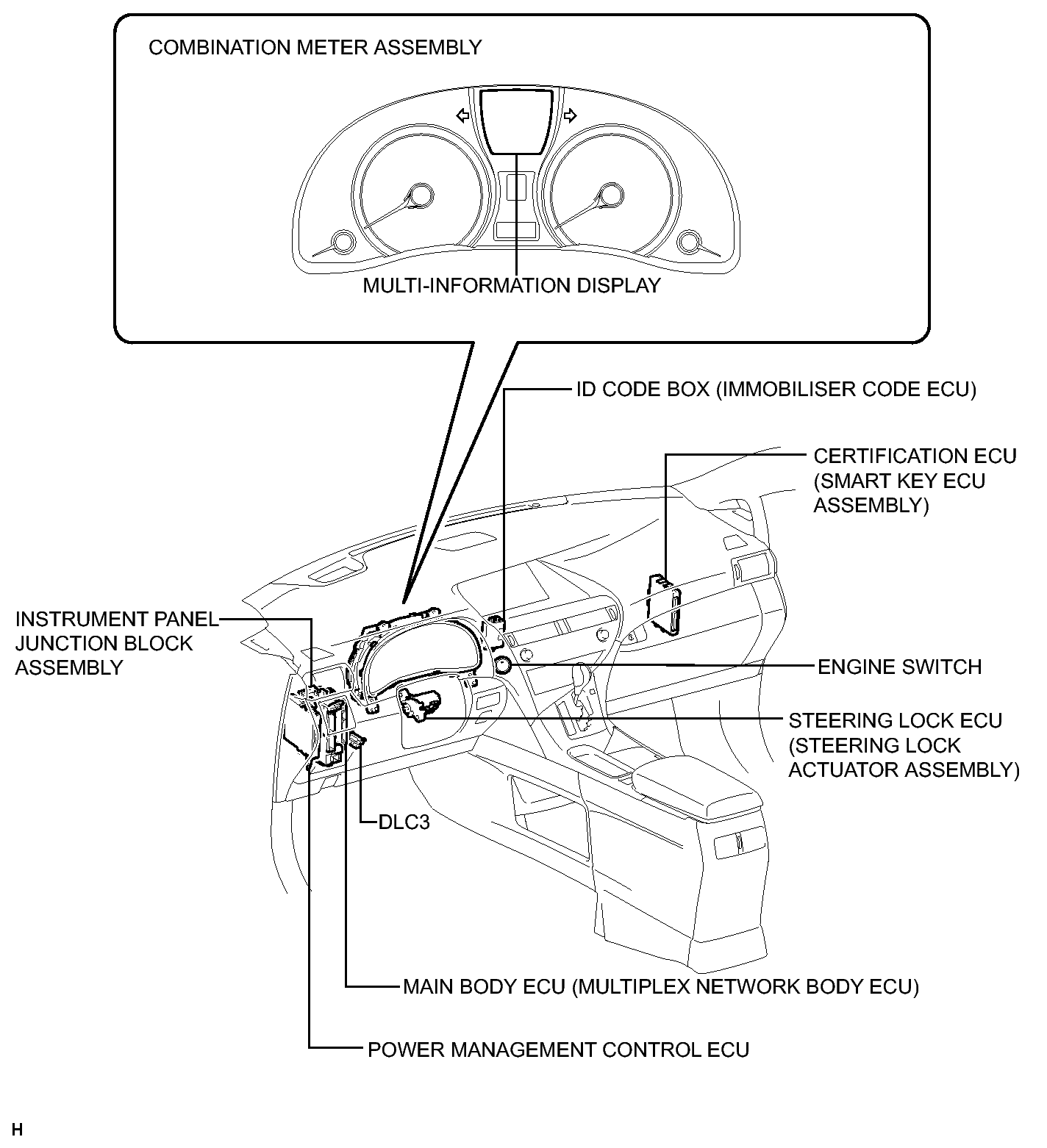

Fig 1: Identifying Smart Access System With Push-Button Start (for Entry Function) Components Location (2 of 4)
GTY284747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

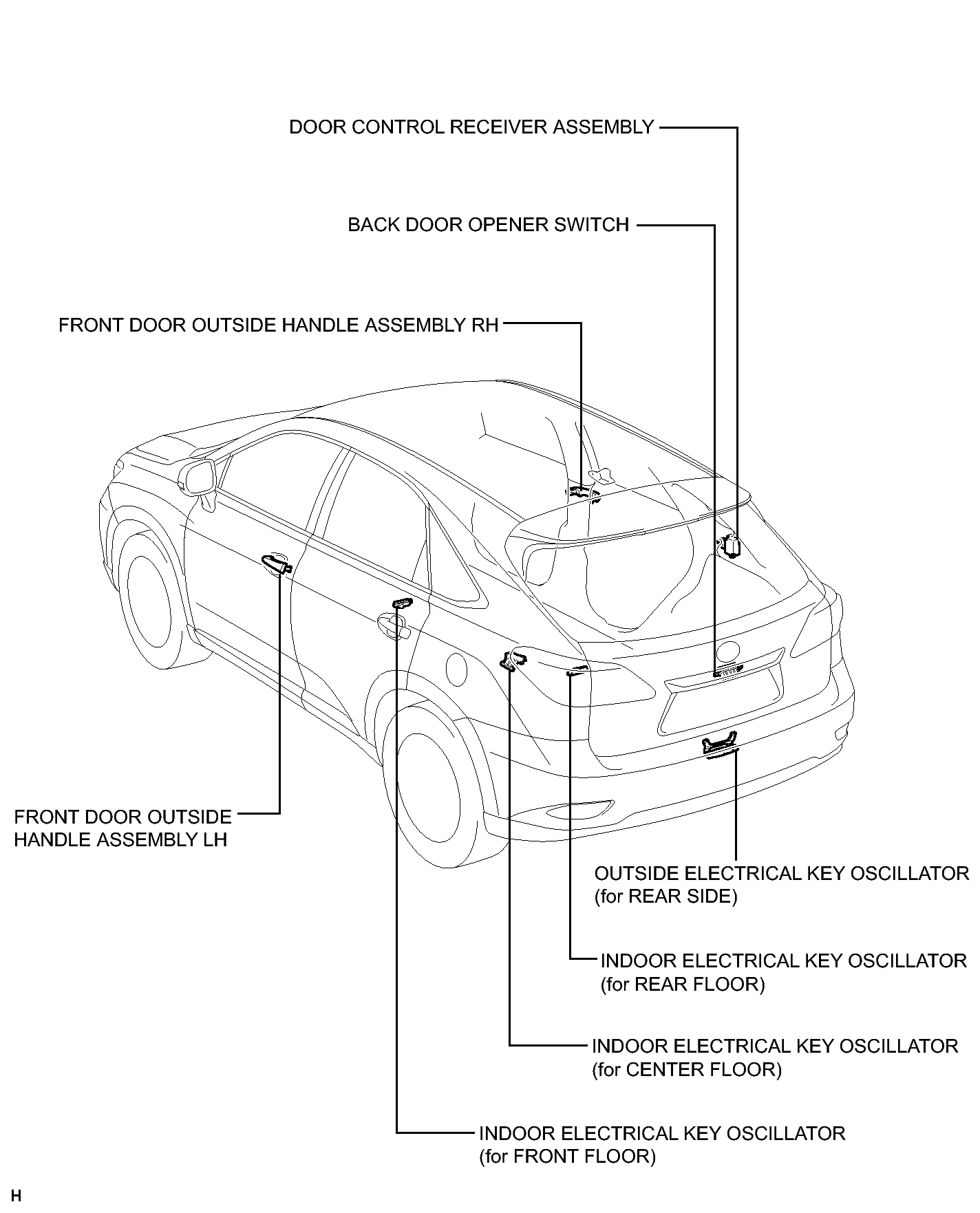

Fig 1: Identifying Smart Access System With Push-Button Start (for Entry Function) Components Location (3 of 4)
GTY257206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

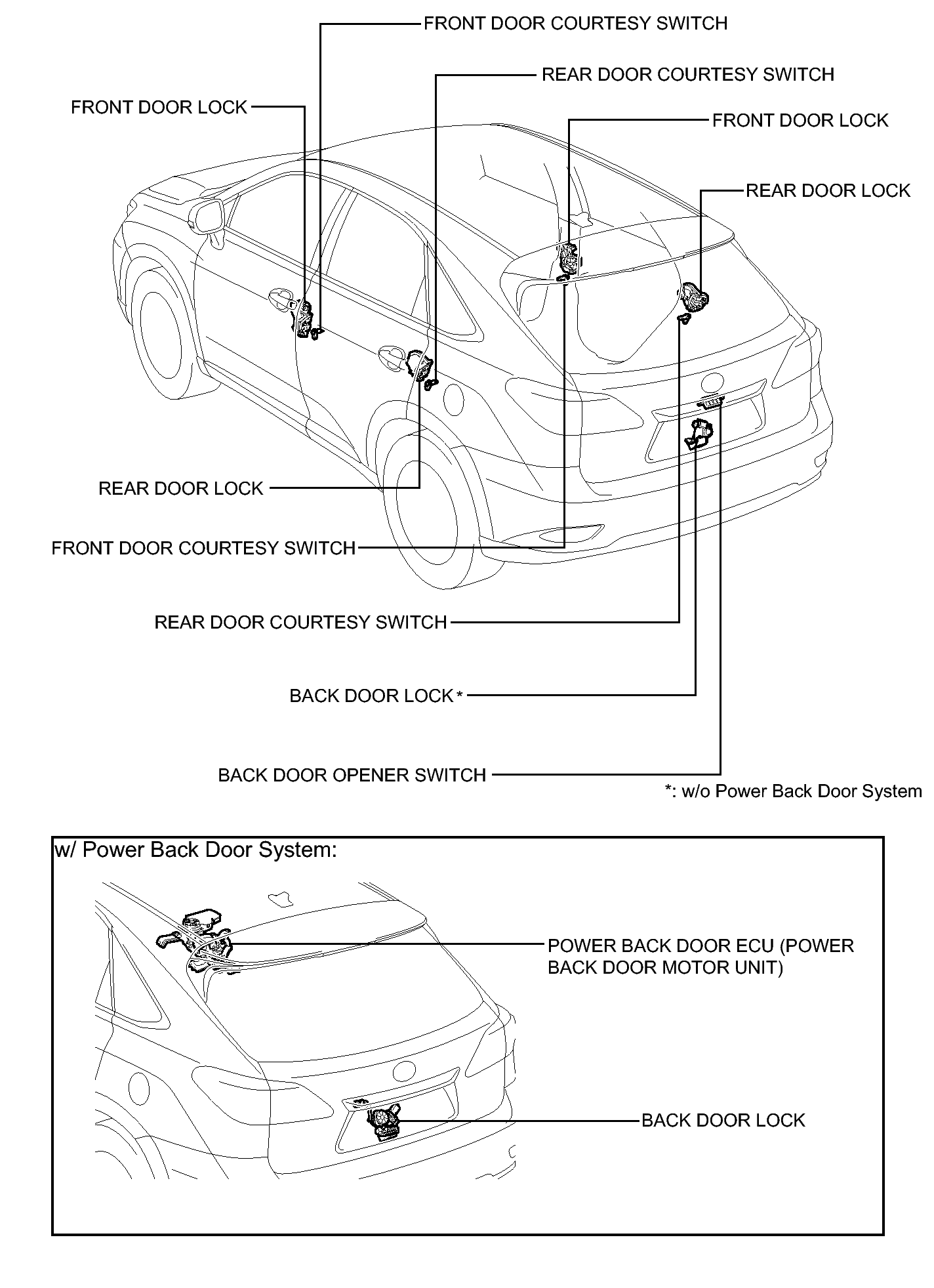

Fig 1: Identifying Smart Access System With Push-Button Start (for Entry Function) Components Location (4 of 4)
GTY262561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
