Engine Control System SFI System [2GR-FE] (Diagnostic Codes & Circuit Tests)
>>
SFI System
>>
Active Control Engine Mount System
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Active Control Engine Mount System: Wiring Diagram

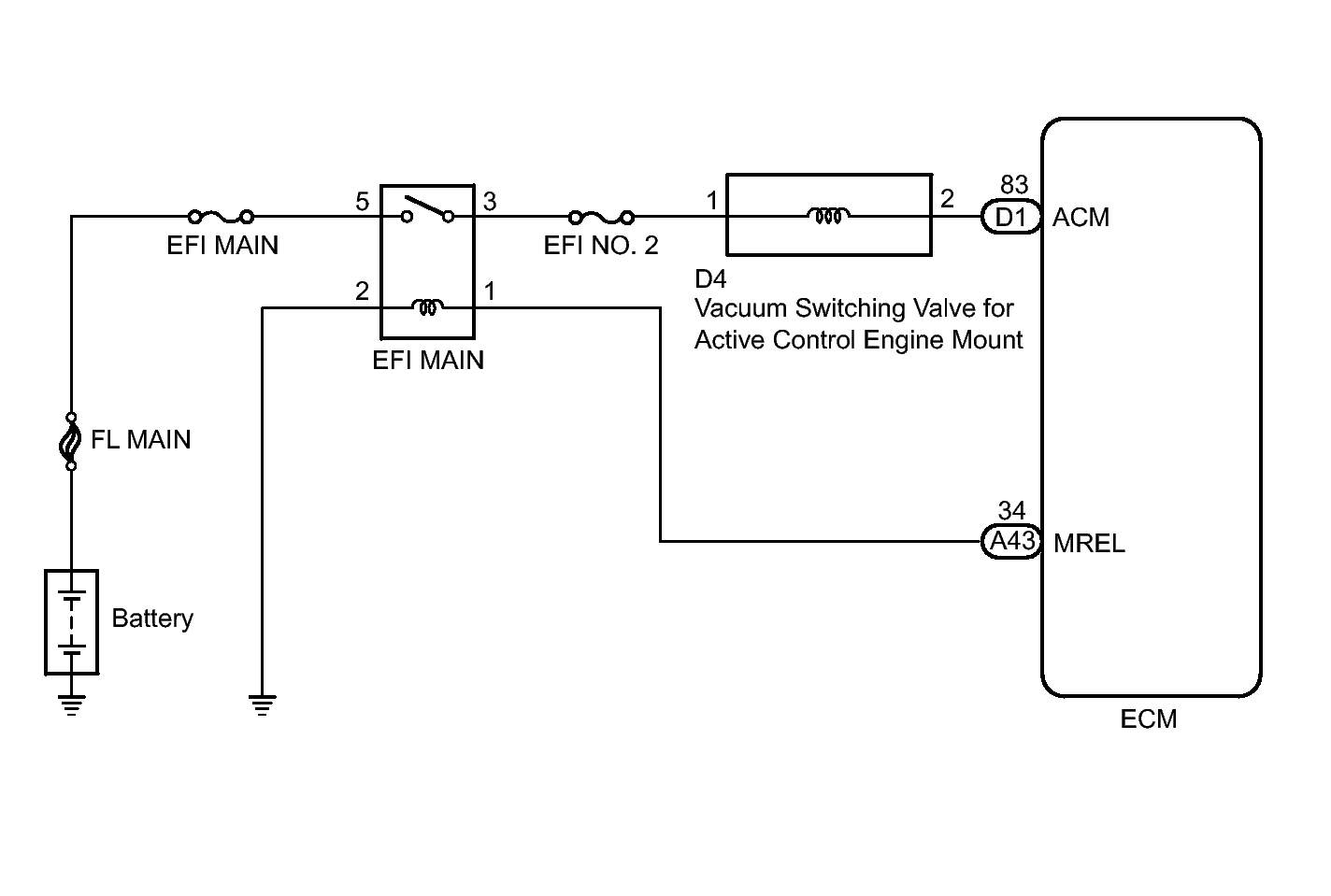

Fig 1: Identifying Active Control Engine Mount System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
