Steering Column Assembly: Reassembly: Reassembly

INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
1. Install the multiplex tilt and telescopic ECU with the bolt.

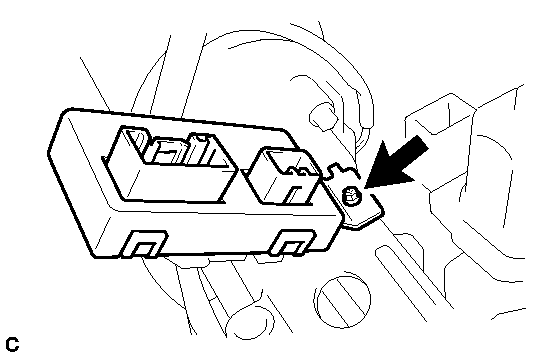

  Fig 1: Removing Bolt And Multiplex Tilt And Telescopic ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.8 N*m (29 kgf*cm, 25 in.*lbf)
2. Connect the connector to the multiplex tilt and telescopic ECU.

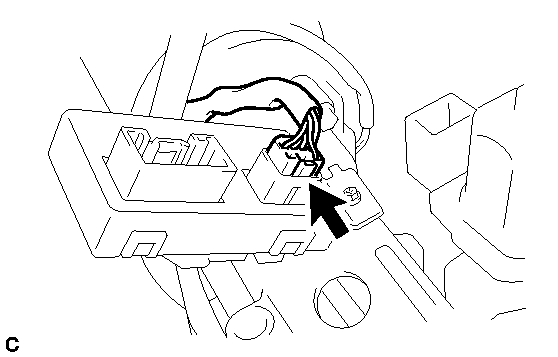

  Fig 2: Disconnecting Connector From Multiplex Tilt And Telescopic ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING LOCK ACTUATOR ASSEMBLY
1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.

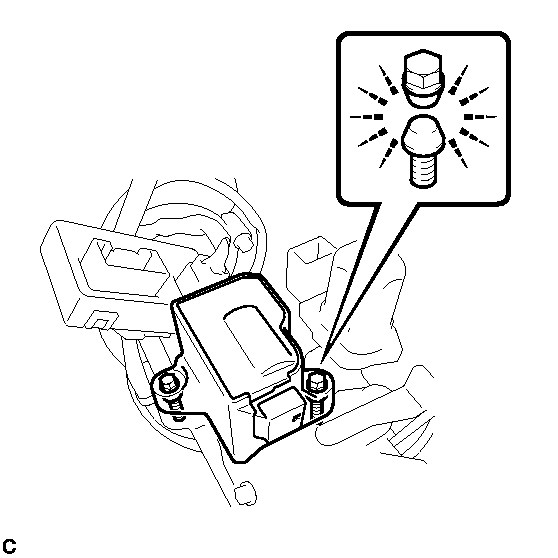

  Fig 3: Temporarily Install The Steering Lock Actuator Assembly With 2 New Tapered-Head Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 2 tapered-head bolts until the bolt heads break off.
