Active Control Engine Mount: Installation: Installation

INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
1. Install the front engine mounting insulator assembly with the 3 nuts and cap.

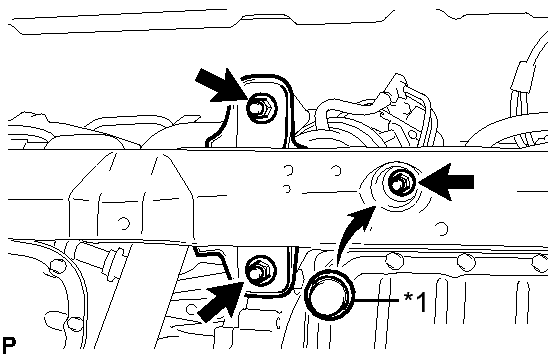

  Fig 1: Front Engine Mounting Insulator Assembly With The 3 Nuts And Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)
  TEXT IN ILLUSTRATION

  *1 Hole Plug
2. Connect the duty vacuum switching valve connector and clamp.

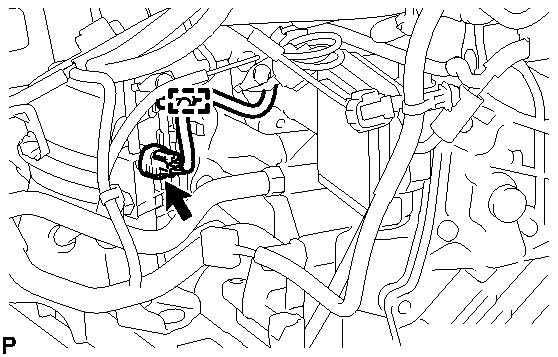

  Fig 2: Location of Duty Vacuum Switching Valve Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 vacuum hoses.

  Fig 3: Location of 2 Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
1. Install the transverse engine mounting bracket with the 3 bolts and nut.

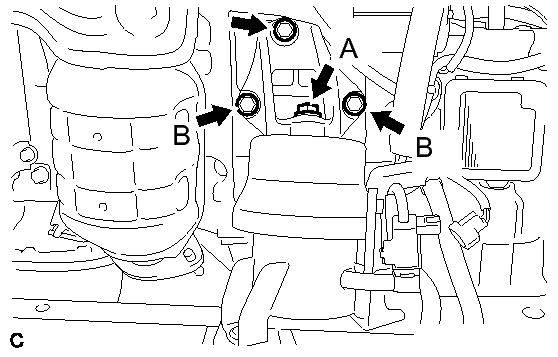

  Fig 4: Transverse Engine Mounting Bracket With The 3 Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

  for the nut

  Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

  for the bolt A

  Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

  for the bolt B
INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
1. Install the radiator assembly and fan assembly with motor. Refer to INSTALLATION .
