Parking Assist (Rear View Monitor w/o LEXUS Navigation System): Notes

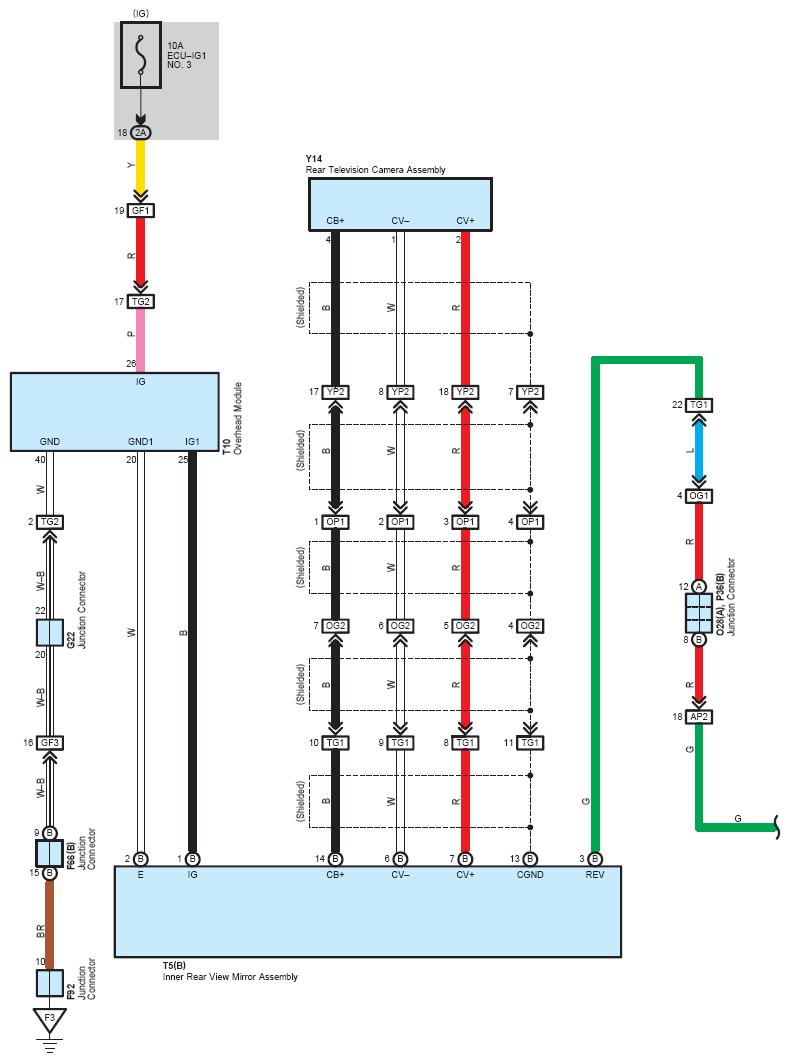

Fig 1: Parking Assist (Rear View Monitor W/O Lexus Navigation System) - Circuit Diagram (1 Of 2)
G07605561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

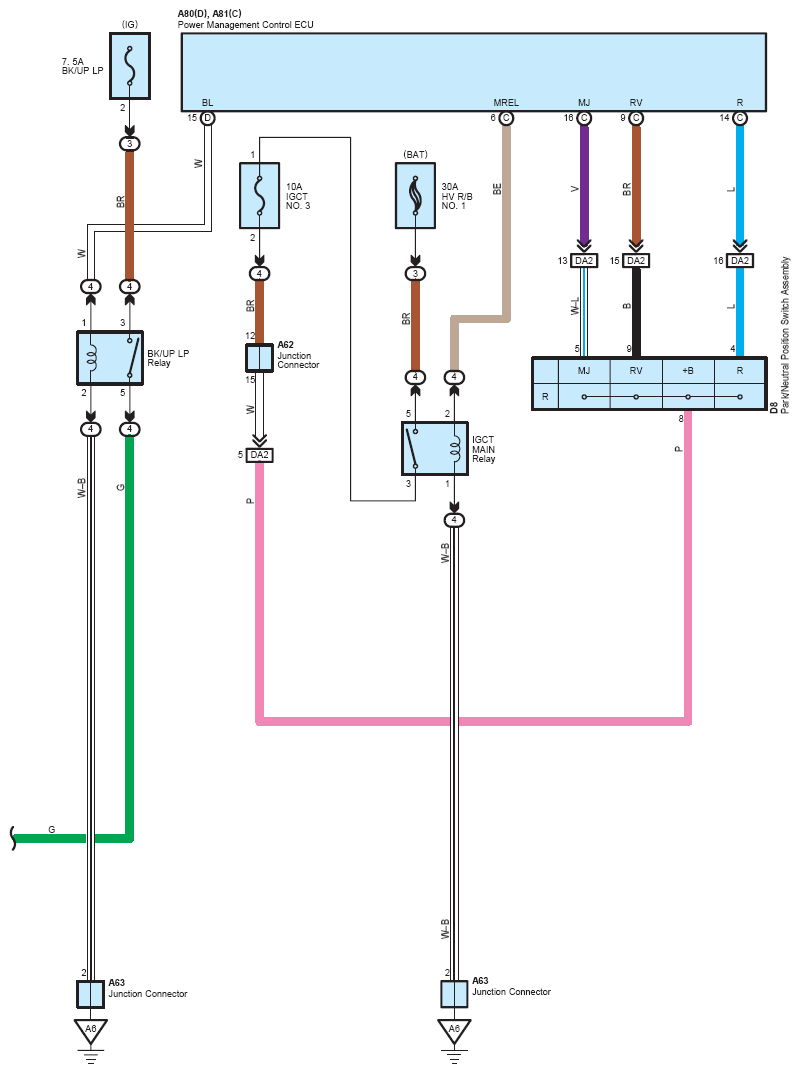

Fig 2: Parking Assist (Rear View Monitor W/O Lexus Navigation System) - Circuit Diagram (2 Of 2)
G07605562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
