All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate: Procedure

1. When the door control switch on the master switch assembly is operated, check that the doors unlock and lock according to switch operation. Refer to OPERATION CHECK .

   OK

   Door locks operate normally.

NG → See step   13

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART KEY (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Auto Entry Cancel SW	Entry function cancel / ON or OFF	Mode status displayed	-

   Result

   Result	Proceed to
   Entry function cancel is OFF.	A
   Entry function cancel is ON.	B

B → See step   8

A: Go to next step

1. Move the key as described below and perform the operation inspection.

   HINT:

   • When the key is brought near the door outside handle assembly or outside electrical key oscillator, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • The transmitting waves of the wireless functions and entry functions are the same, but the wave logic is different. Therefore, it is possible that only the wireless functions or only the entry functions are affected by wave interference.
2. Bring the key near the driver door outside handle assembly, and perform a front driver door entry lock and unlock operation check.
   Fig 1: Identifying Smart Door Lock Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When pressing the lock switch, hold the electrical key transmitter about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

3. Bring the key near the front passenger door outside handle assembly, and perform a front passenger door entry lock and unlock operation check.
   Fig 2: Checking Operation Of Front Passenger Door Entry Lock And Unlock By Bringing Key Near Driver Door

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When pressing the lock switch, hold the electrical key transmitter about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

4. Bring the key near the outside electrical key oscillator (for rear side), and perform an entry back door open function check.
   Fig 3: Checking Operation Of Back Door Entry Lock And Unlock By Bringing Key Near Driver Door

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When pressing the lock switch, hold the electrical key transmitter about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication is not possible.

   HINT:

   If the inspection result indicates that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   Result	Proceed to
   Entry function does not operate for all doors.	A
   Entry function operates for all doors.	B
   Entry function operates for an individual door.	C

B → AFFECTED BY WAVE INTERFERENCE

C → See step   11

A: Go to next step

1. Diagnostic mode inspection (door electrical key oscillator (for driver side))

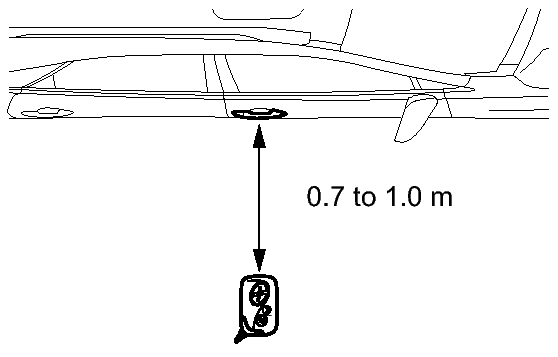

   Fig 4: Identifying when the key is brought within 0.7 to 1.0 m

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Driver Side.
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Hold the electrical key transmitter at the same height as the door outside handle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

2. Diagnostic mode inspection (door electrical key oscillator (for front passenger side))
   Fig 5: Door Electrical Key Oscillator For Front Passenger Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Passenger Side.
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Hold the electrical key transmitter at the same height as the door outside handle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

3. Diagnostic mode inspection (indoor electrical key oscillator (for front floor))
   Fig 6: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Front Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Front Room.
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Place the key on the driver or front passenger seat cushion.

4. Diagnostic mode inspection (indoor electrical key oscillator (for center floor))
   Fig 7: Inspect The Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Rear Room.
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Place the key on the rear seat cushion.

5. Diagnostic mode inspection (indoor electrical key oscillator (for rear floor))
   Fig 8: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Rear Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Back Door (inside).
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Place the key on the luggage area.

6. Diagnostic mode inspection (outside electrical key oscillator (for rear side))
   Fig 9: Outside Electrical Key Oscillator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Back Door (outside).
   5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      Hold the electrical key transmitter at the same height as the rear bumper upper surface and align with the center of the rear of the vehicle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

      Result

      Result	Proceed to
      Wireless door lock buzzer does not sound for all electrical key oscillators.	A
      Wireless door lock buzzer does not sound only for either door electrical key oscillator.	B
      Wireless door lock buzzer does not sound only for one indoor electrical key oscillator.	C
      Wireless door lock buzzer does not sound only for outside electrical key oscillator (for rear side).	D
      Wireless door lock buzzer sounds for all electrical key oscillators.	E

B → See step   9

C → See step   10

D → See step   11

E → See step   12

A: Go to next step

1. Check if another registered key is available.

   Result

   Result	Proceed to
   Another registered key is not available.	A
   Another registered key is available.	B

B → See step   7

A: Go to next step

1. Register a new key. Refer to REGISTRATION .

NEXT: Go to next step

1. Using the key registered in the previous step or another registered key, check that the entry function operates normally. Refer to OPERATION CHECK .

   OK

   Entry function operates normally.

NG → See step   12

OK → REPLACE ELECTRICAL KEY TRANSMITTER (REPLACE MALFUNCTIONING KEY)
