Back Door Entry Unlock Function does not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2011 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

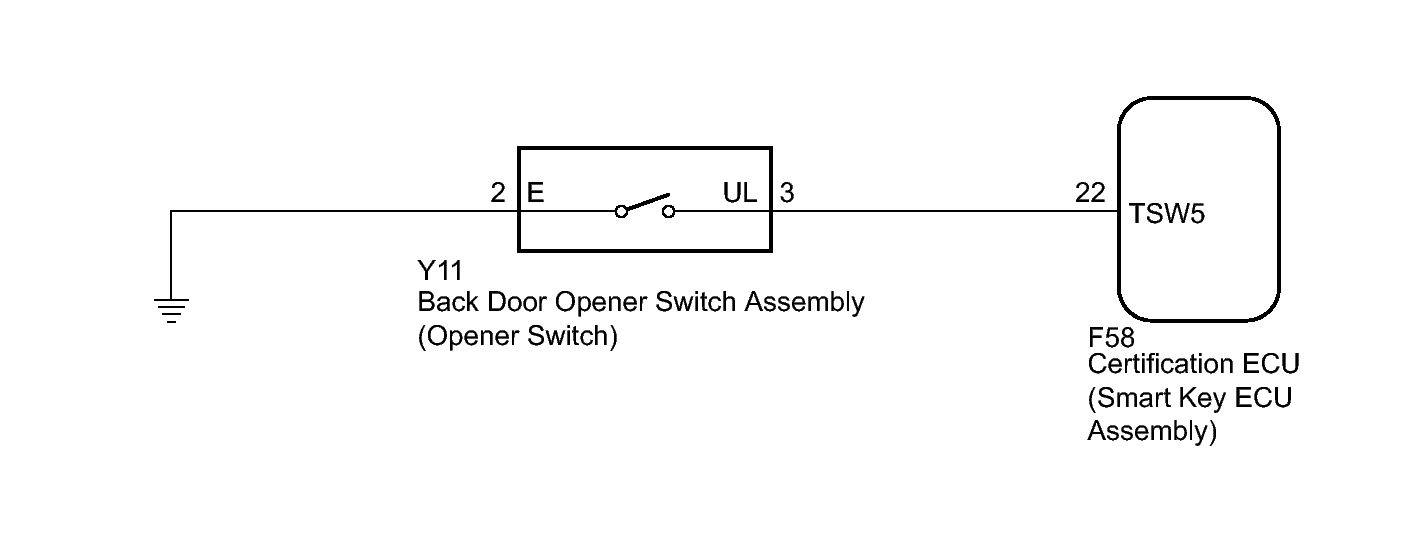

Fig 1: Identifying Back Door Entry Unlock Function Wiring Diagram
GTY352154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
