Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2011 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

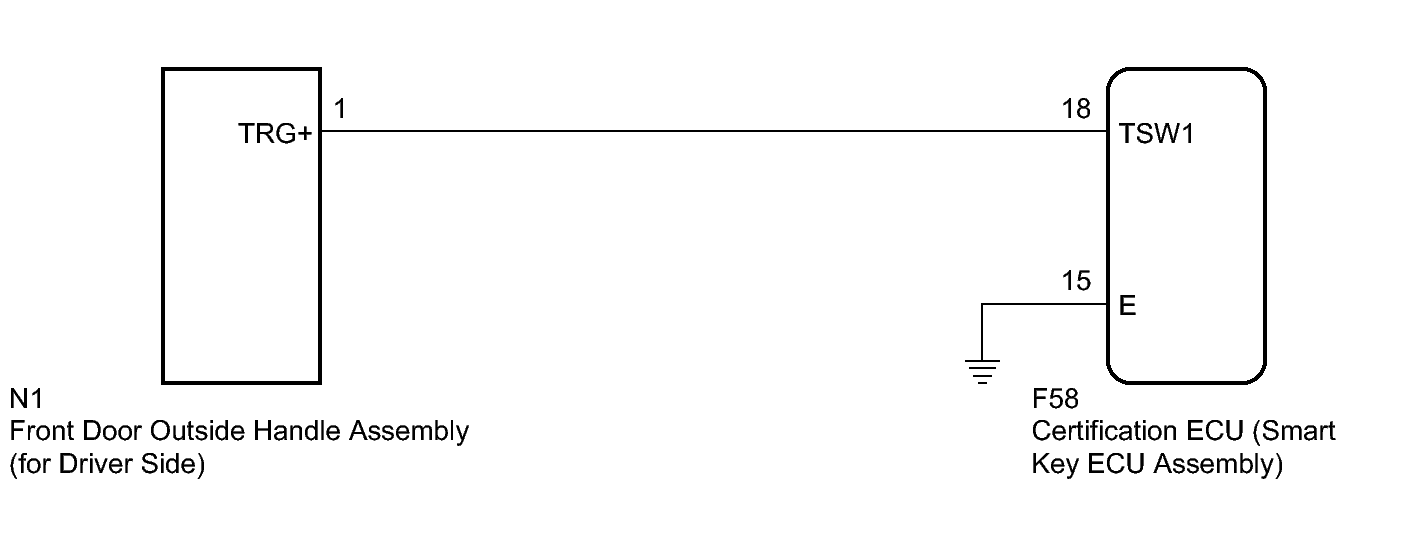

Fig 1: Identifying Driver Side Door Entry Lock Function Wiring Diagram
GTY348168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
