Room Oscillator does not Recognize Key: Procedure

1. Check that entry lock and unlock functions can be operated at each door. Refer to OPERATION CHECK .

   OK

   Entry lock and unlock functions operate normally.

NG → See step   19

OK: Go to next step

1. Remove the battery of the key. Refer to REPLACEMENT .
2. With the brake pedal depressed, touch the engine switch while facing the logo side of the key to the engine switch.
   Fig 1: Touching Logo Side Mark Of Key Or Card Key To Engine Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When operating the engine switch, check whether the power source mode changes.

   OK

   Power source mode changes.

   HINT:

   • When the key cannot be verified even though it is within the specified range, the engine start check can be performed by removing the transmitter battery from the key and holding the transmitter close to the engine switch.
   • When performing the check, if the power source mode changes, there is a problem with key certification inside the cabin.

NG → See step   17

OK: Go to next step

1. Install the battery to the key. Refer to REPLACEMENT .
2. Bring the key near the indoor electrical key oscillator (for front floor), and check that the engine can be started.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for front floor), communication is not possible.

3. Bring the key near the indoor electrical key oscillator (for center floor), and check that the engine can be started.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for center floor), communication is not possible.

4. Bring the key near the indoor electrical key oscillator (for rear floor), and check that the engine can be started*.

   *: If the customize setting for Ignition Available Area is not set ALL, the engine will not start. Before performing this inspection, check that ALL has been selected. Refer to CUSTOMIZE PARAMETERS .

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for rear floor), communication is not possible.

   HINT:

   • When the key is brought near the indoor electrical key oscillator, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the operation is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   The engine starts.

NG → See step   4

OK → AFFECTED BY WAVE INTERFERENCE

1. Diagnostic mode inspection (indoor electrical key oscillator (for front floor))
   Fig 2: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Front Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Front Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the driver or front passenger seat cushion.
      • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.
2. Diagnostic mode inspection (indoor electrical key oscillator (for center floor))
   Fig 3: Inspect The Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Rear Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the rear seat cushion.
      • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.
3. Diagnostic mode inspection (indoor electrical key oscillator (for rear floor))
   Fig 4: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Rear Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Back Door (inside).
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the luggage area.
      • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.

      Result

      Result	Proceed to
      Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for front floor).	A
      Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for center floor).	B
      Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for rear floor).	C
      Wireless door lock buzzer sounds for all indoor electrical key oscillators.	D

B → See step   9

C → See step   13

D → See step   18

A: Go to next step

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the indoor electrical key oscillator (for front floor) connector.

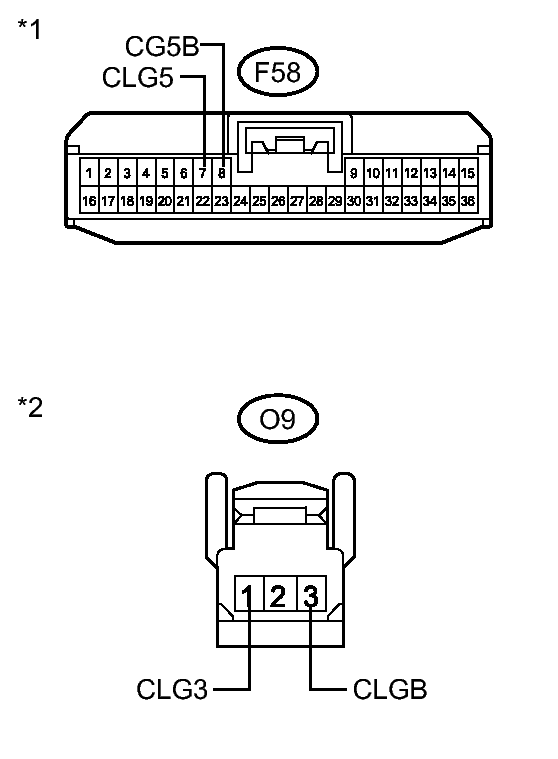

   Fig 5: F58 & O9 Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F58-7 (CLG5) - O9-1 (CLG3)	Always	Below 1 Ω
   F58-8 (CG5B) - O9-3 (CLGB)	Always	Below 1 Ω
   F58-7 (CLG5) - Body ground	Always	10 kΩ or higher
   F58-8 (CG5B) - Body ground	Always	10 kΩ or higher
   O9-1 (CLG3) - Body ground	Always	10 kΩ or higher
   O9-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Front Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

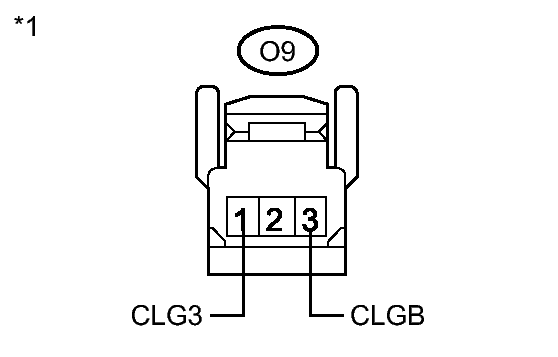

   Fig 6: Certification ECU (Smart Key ECU Assembly) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   O9-1 (CLG3) - O9-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   O9-1 (CLG3) - O9-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Front Floor))

NG → See step   18

OK: Go to next step

1. Replace the indoor electrical key oscillator (for front floor. Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Front Room.
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 7: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Front Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.

NG → See step   18

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the indoor electrical key oscillator (for center floor) connector.

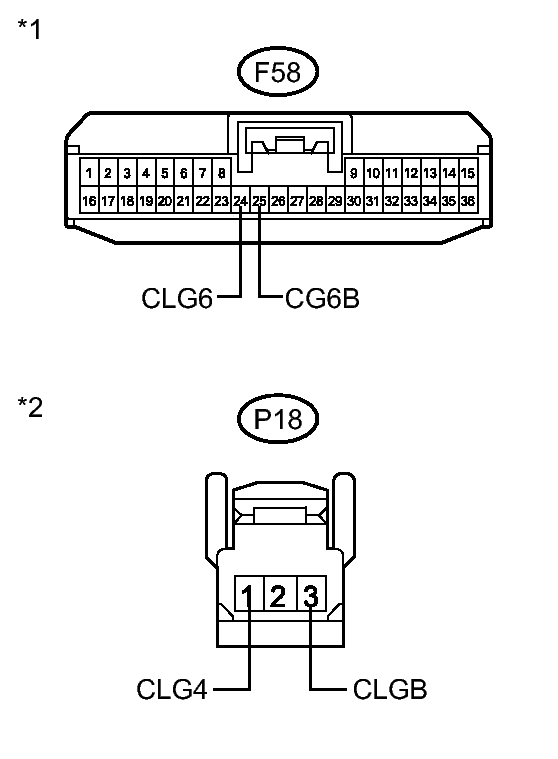

   Fig 8: F58 & P18 Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F58-24 (CLG6) - P18-1 (CLG4)	Always	Below 1 Ω
   F58-25 (CG6B) - P18-3 (CLGB)	Always	Below 1 Ω
   F58-24 (CLG6) - Body ground	Always	10 kΩ or higher
   F58-25 (CG6B) - Body ground	Always	10 kΩ or higher
   P18-1 (CLG4) - Body ground	Always	10 kΩ or higher
   P18-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Center Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

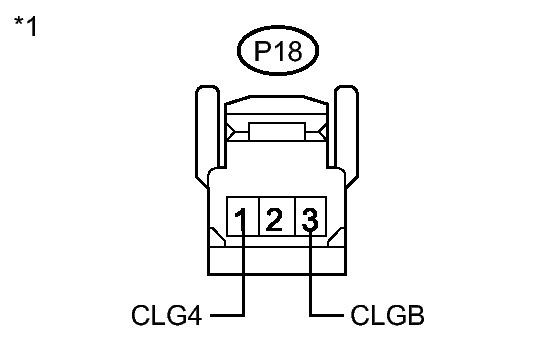

   Fig 9: Certification ECU (Smart Key ECU Assembly) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   P18-1 (CLG4) - P18-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   P18-1 (CLG4) - P18-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Center Floor))

NG → See step   18

OK: Go to next step

1. Replace the indoor electrical key oscillator (for center floor). Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Rear Room.
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 10: Inspect The Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.

NG → See step   18

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the indoor electrical key oscillator (for rear floor) connector.

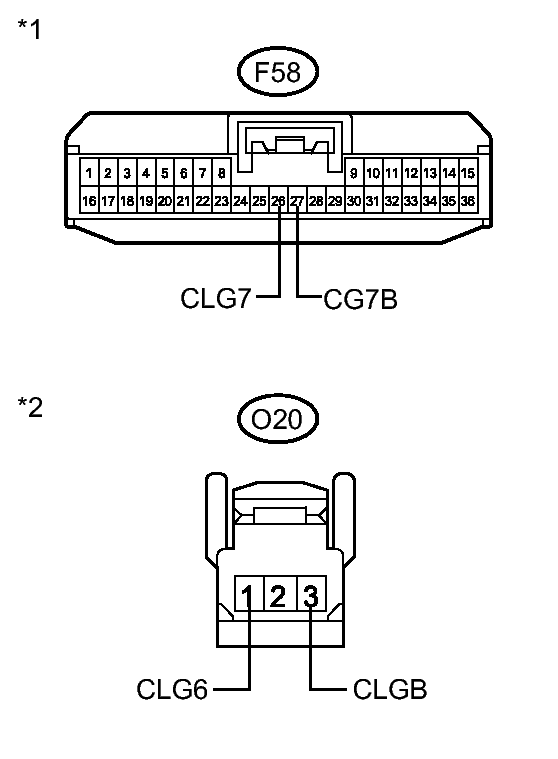

   Fig 11: F58 & O20 Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F58-26 (CLG7) - O20-1 (CLG6)	Always	Below 1 Ω
   F58-27 (CG7B) - O20-3 (CLGB)	Always	Below 1 Ω
   F58-26 (CLG7) - Body ground	Always	10 kΩ or higher
   F58-27 (CG7B) - Body ground	Always	10 kΩ or higher
   O20-1 (CLG6) - Body ground	Always	10 kΩ or higher
   O20-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Rear Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

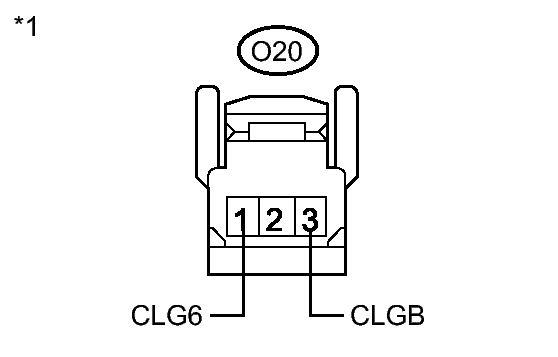

   Fig 12: Certification ECU (Smart Key ECU Assembly) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   O20-1 (CLG6) - O20-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   O20-1 (CLG6) - O20-3 (CLGB)	Engine switch off All door closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Indoor Electrical Key Oscillator (for Rear Floor))

NG → See step   18

OK: Go to next step

1. Replace the indoor electrical key oscillator (for rear floor). Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Utility / Key Communication Check / Overhead + Back Door (inside).
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 13: Inspecting Detection Area For Entry Hybrid Vehicle Control System Start Function (For Rear Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.

NG → See step   18

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)
