Front Speed Sensor: Components: Illustration

Fig 1: Identifying Front Speed Sensor Replacement Components (1 Of 2)
GTY285482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

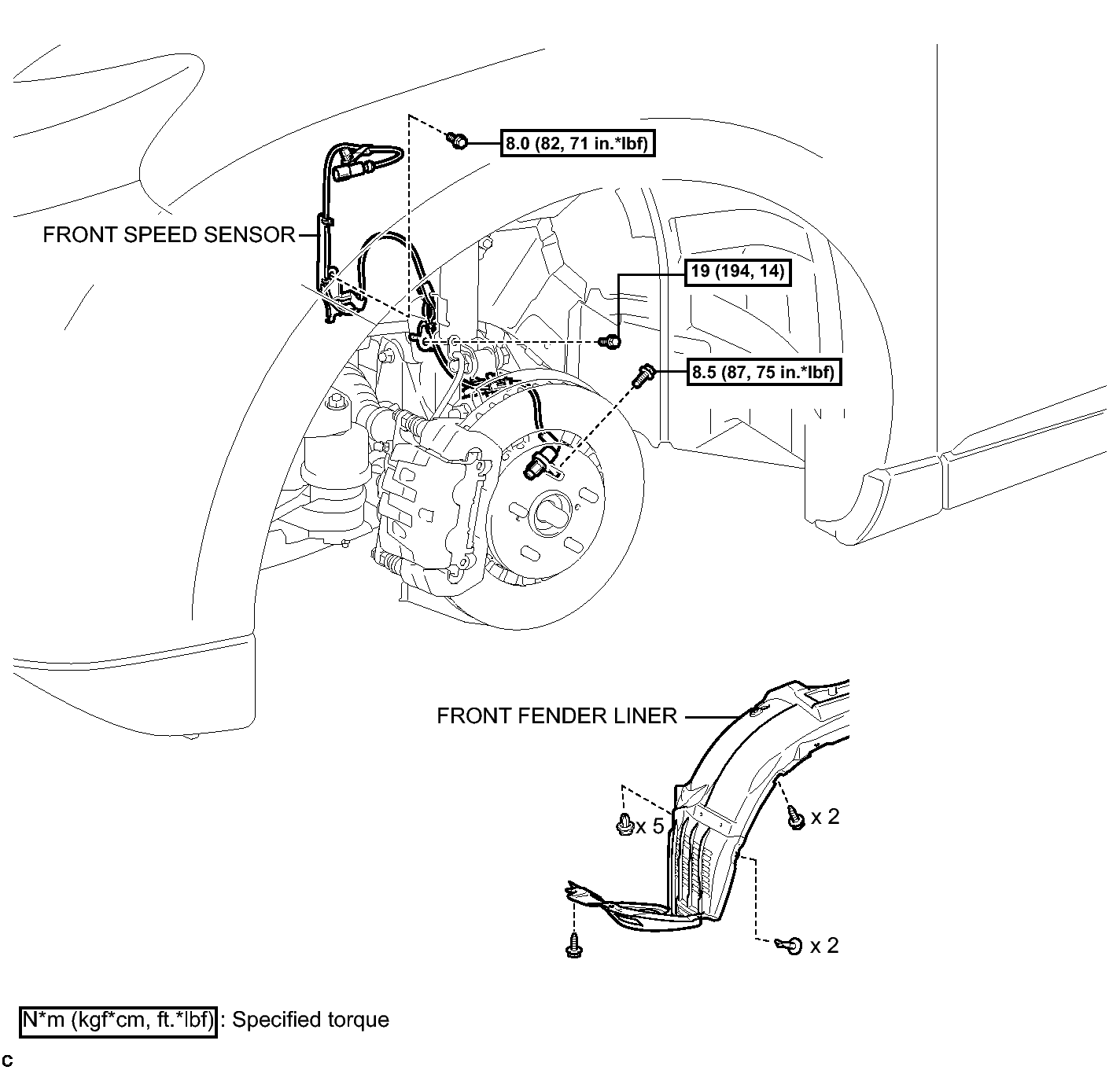

Fig 1: Identifying Front Speed Sensor Replacement Components (2 Of 2) With Torque Specifications
GTY348856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
