OEM System Circuits: EPS: Notes

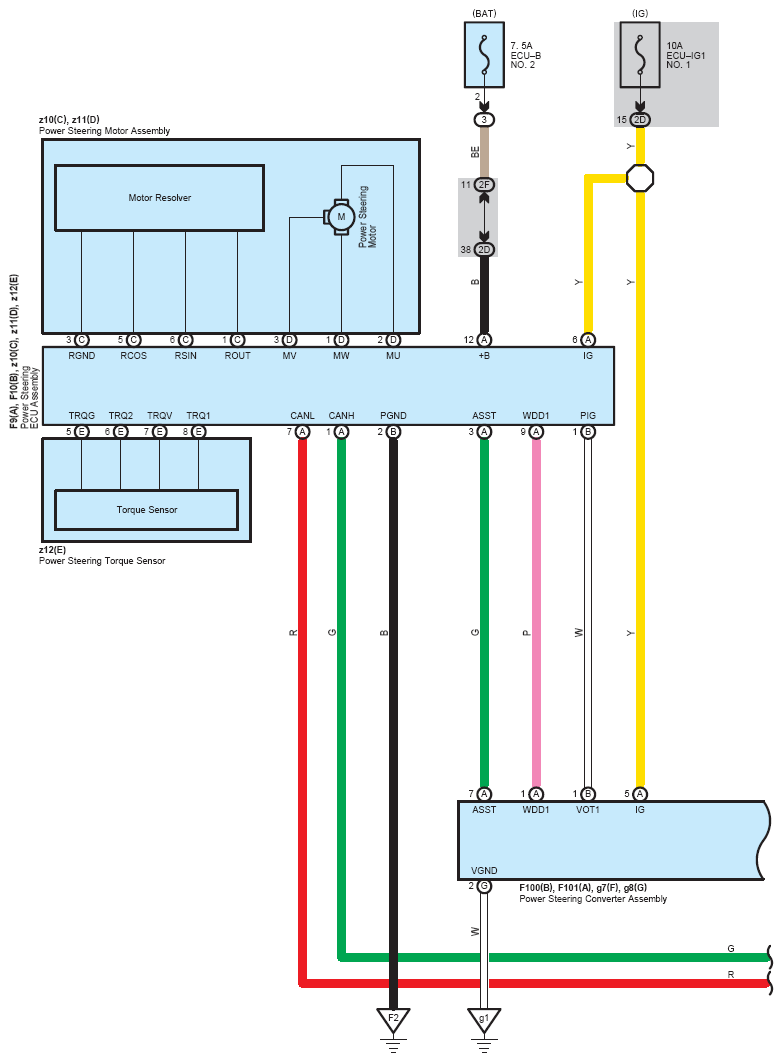

Fig 1: EPS - Circuit Diagram (1 Of 5)
G07605457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

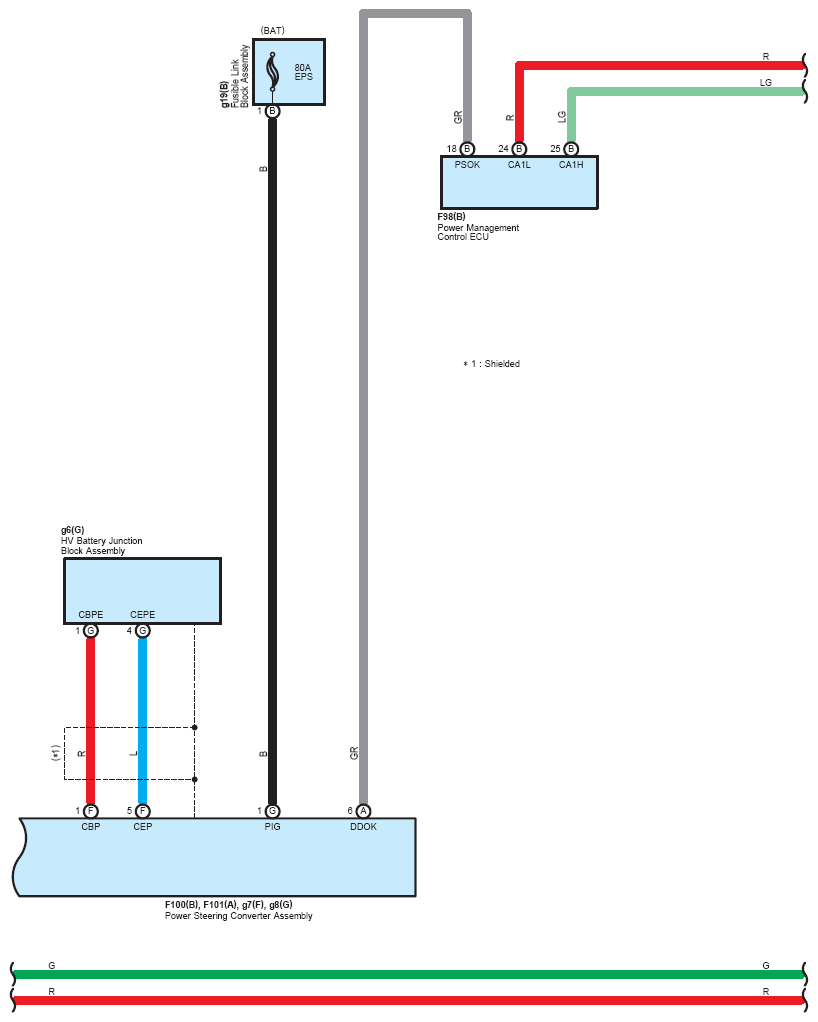

Fig 2: EPS - Circuit Diagram (2 Of 5)
G07605458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

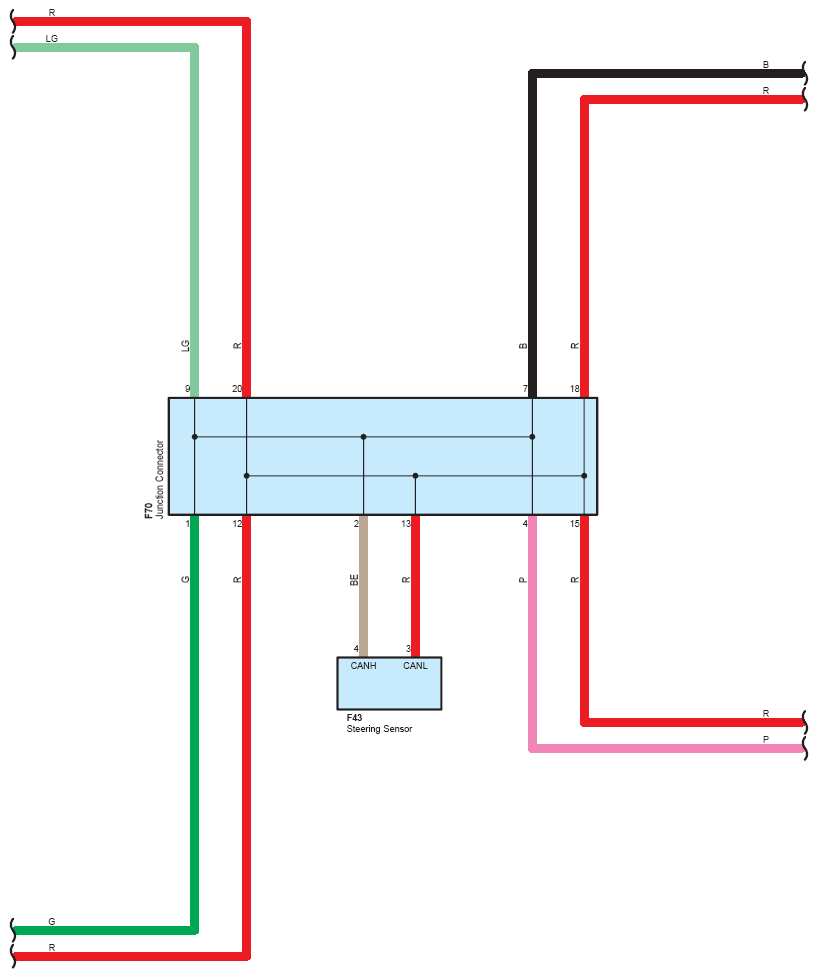

Fig 3: EPS - Circuit Diagram (3 Of 5)
G07605459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

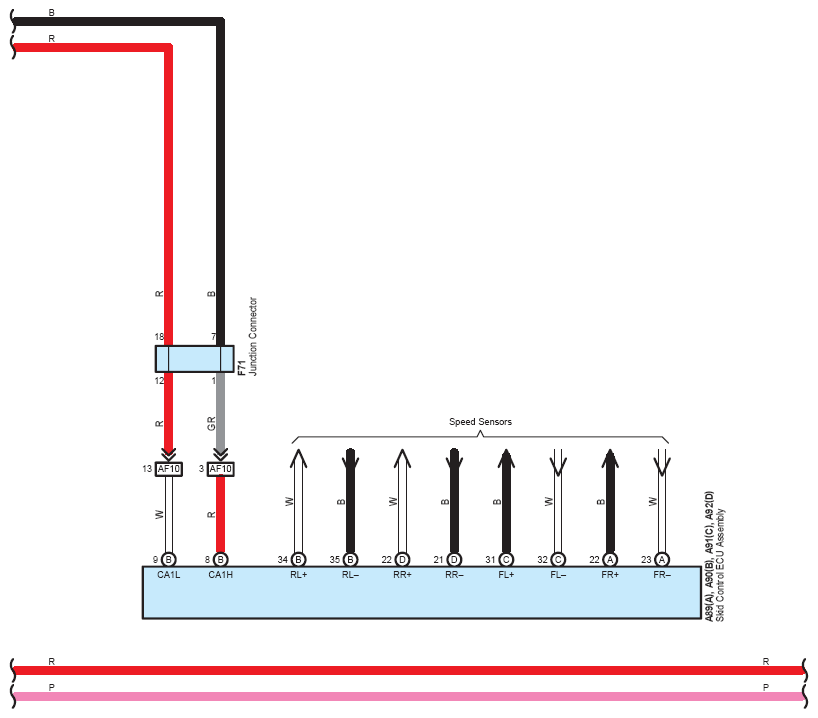

Fig 4: EPS - Circuit Diagram (4 Of 5)
G07605460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

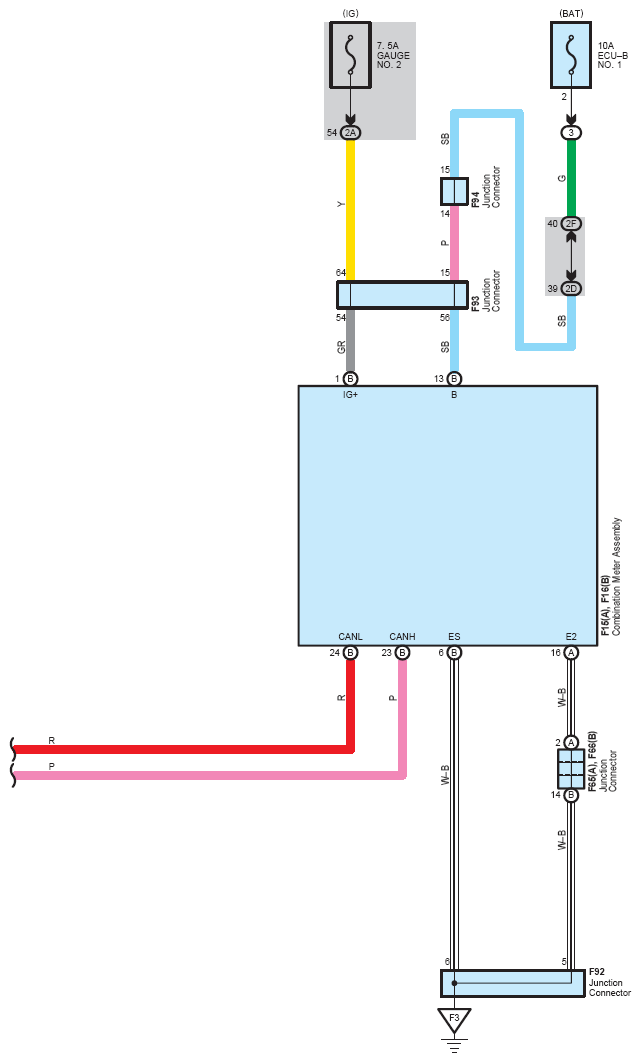

Fig 5: EPS - Circuit Diagram (5 Of 5)
G07605461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
