Hybrid System: Notes

Fig 1: Hybrid System - Circuit Diagram (1 Of 30)

G07605317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

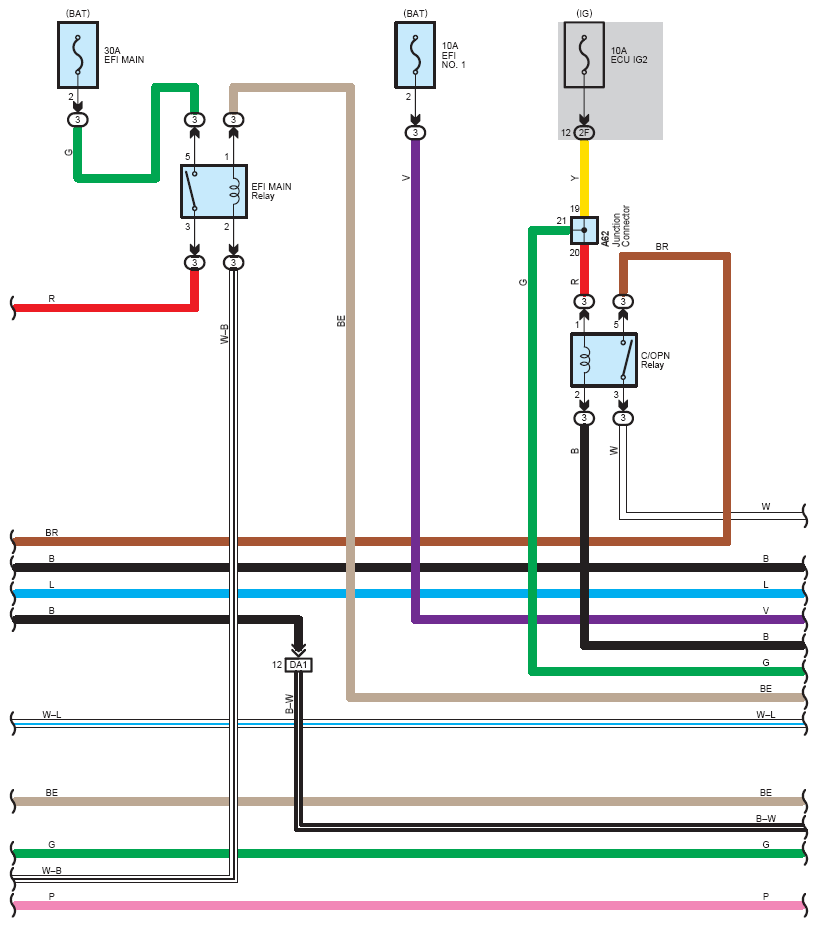

Fig 2: Hybrid System - Circuit Diagram (2 Of 30)

G07605318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

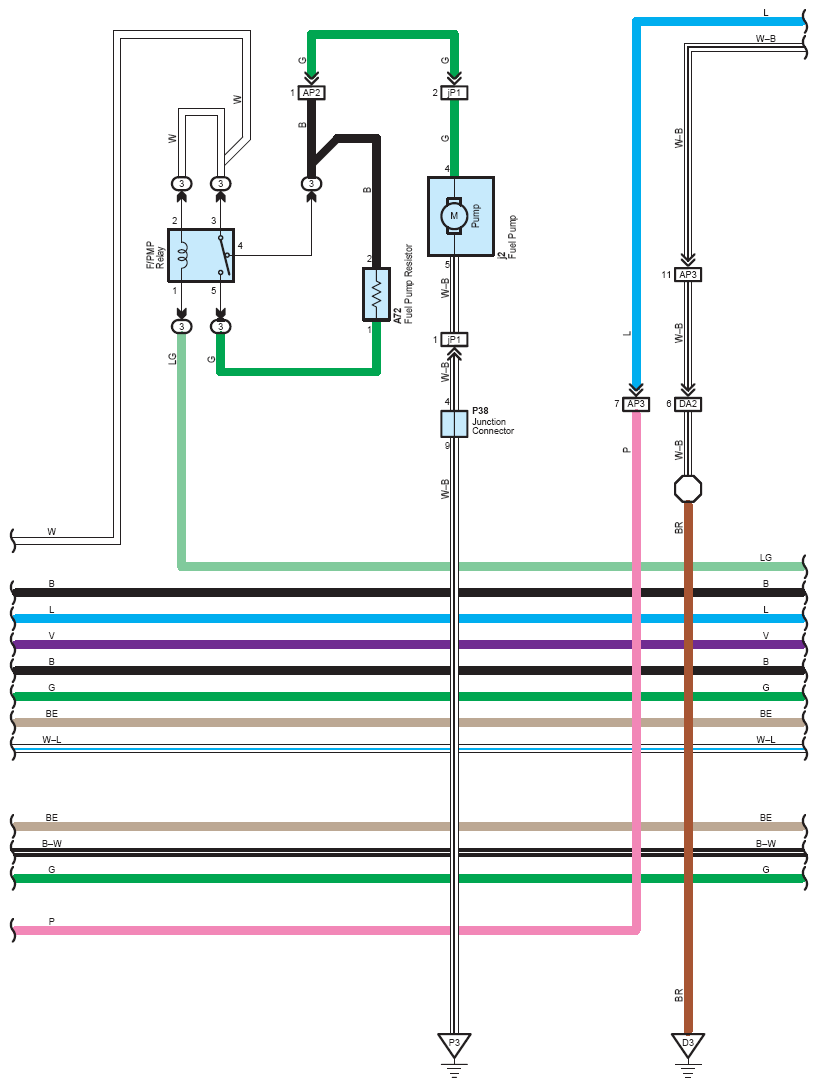

Fig 3: Hybrid System - Circuit Diagram (3 Of 30)

G07605319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

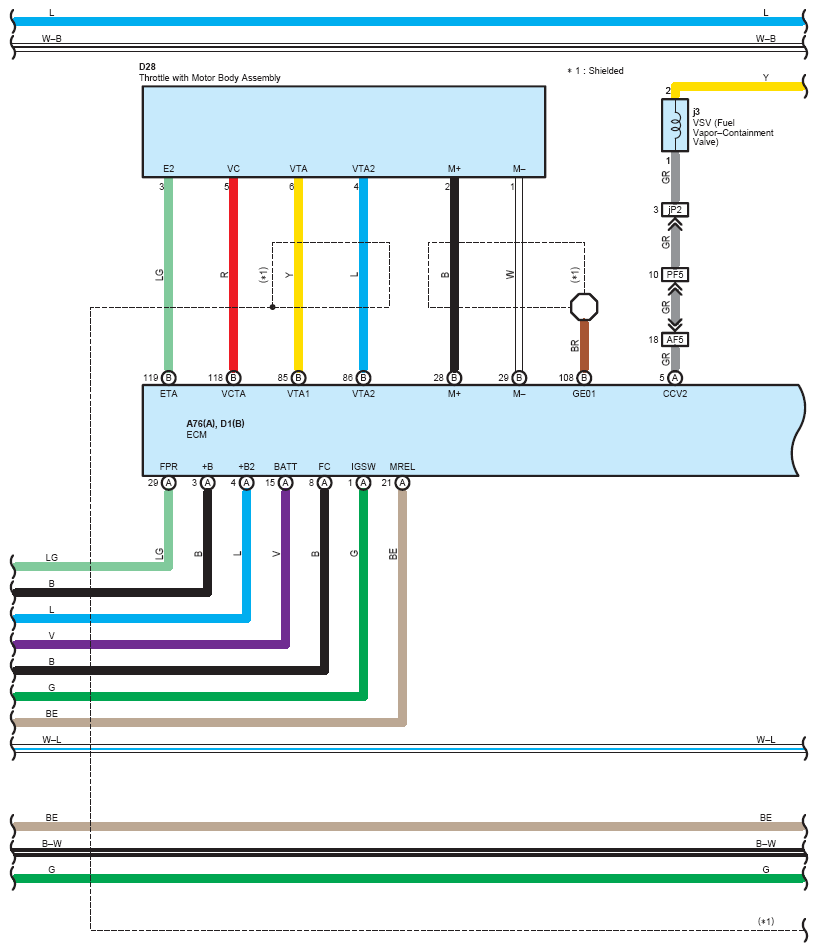

Fig 4: Hybrid System - Circuit Diagram (4 Of 30)

G07605320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

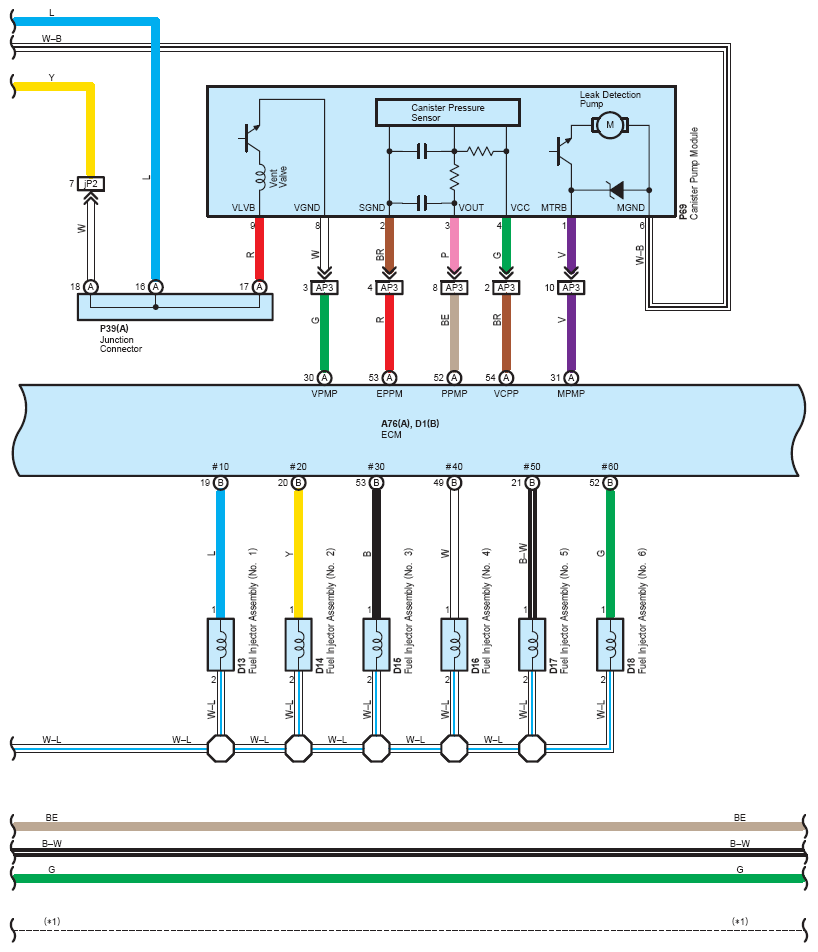

Fig 5: Hybrid System - Circuit Diagram (5 Of 30)

G07605321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

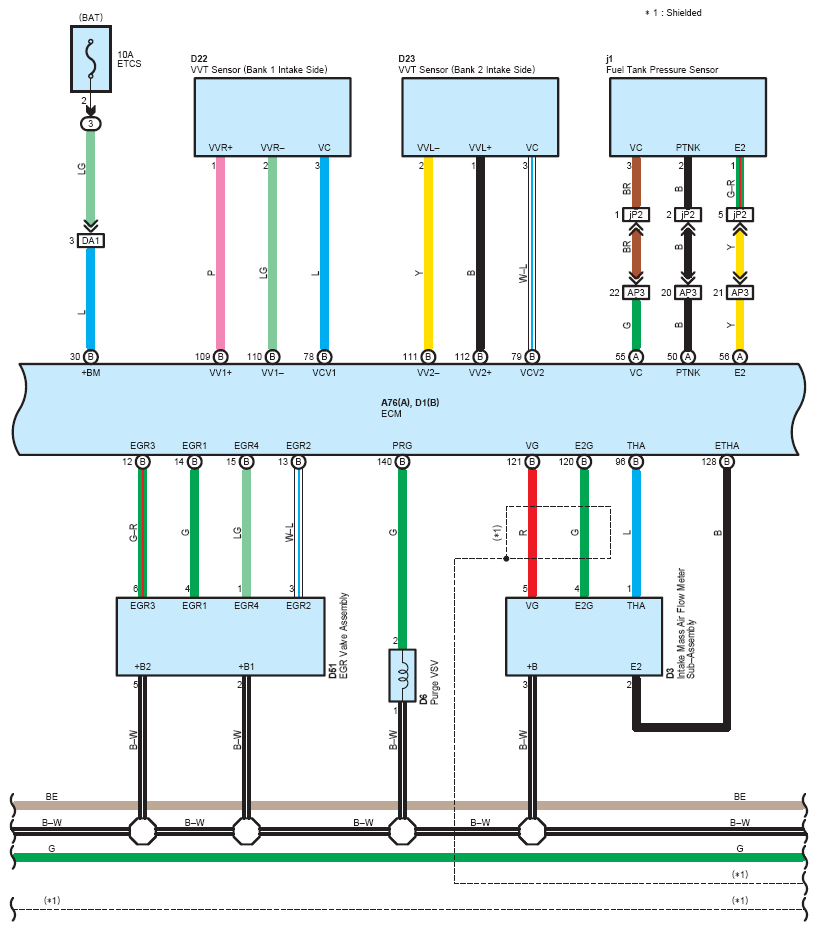

Fig 6: Hybrid System - Circuit Diagram (6 Of 30)

G07605322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Hybrid System - Circuit Diagram (7 Of 30)

G07605323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

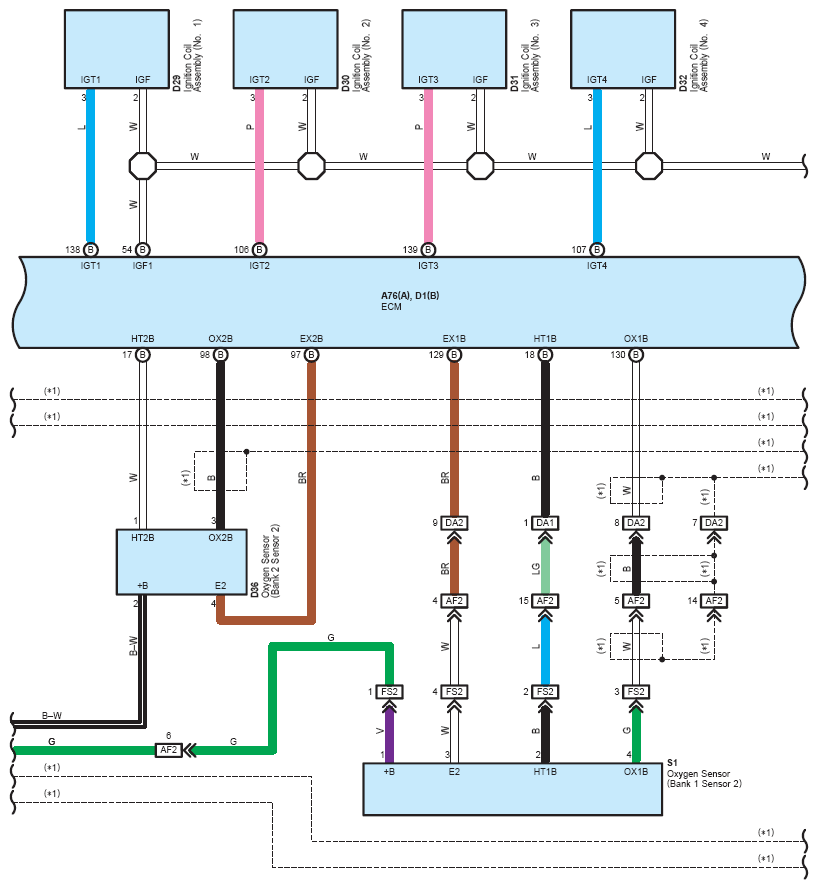

Fig 8: Hybrid System - Circuit Diagram (8 Of 30)

G07605324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

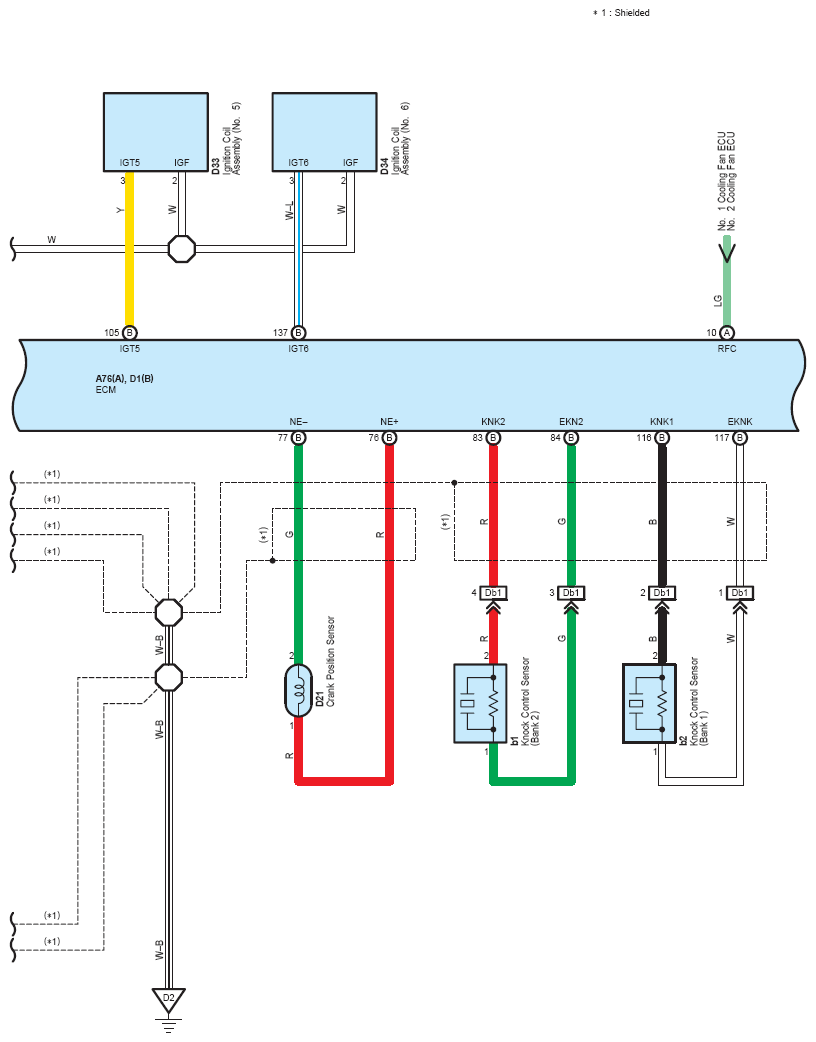

Fig 9: Hybrid System - Circuit Diagram (9 Of 30)

G07605325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

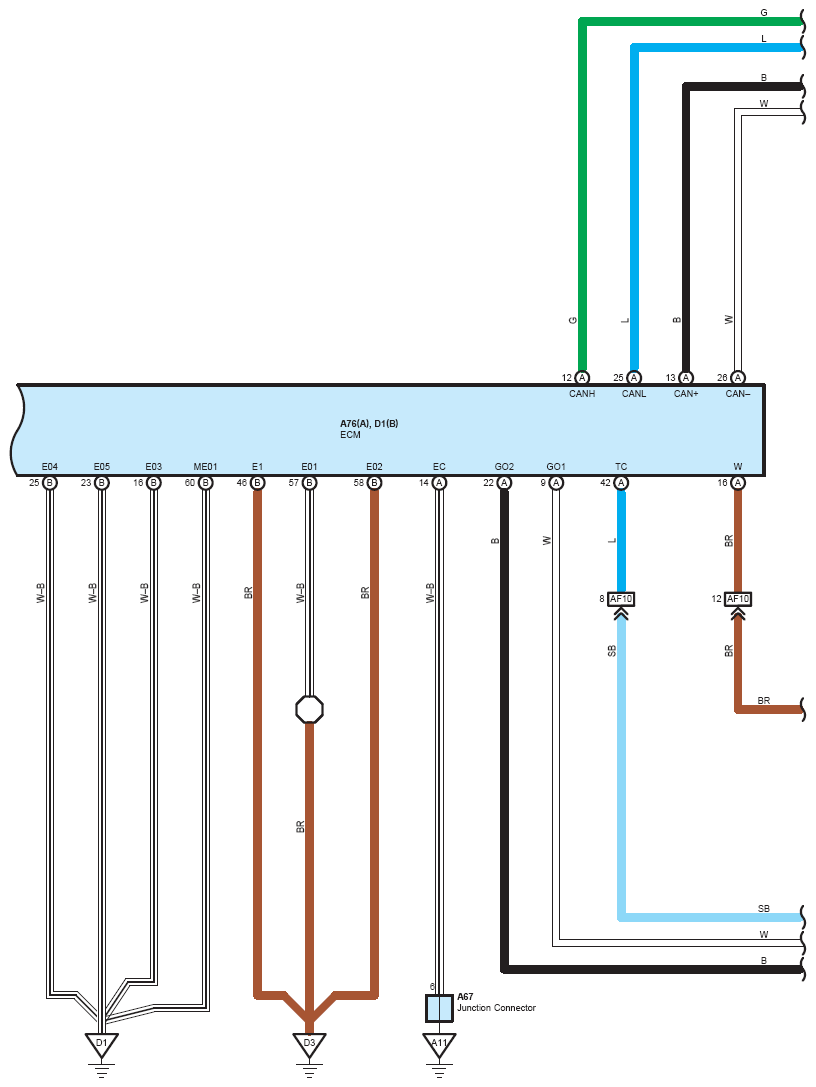

Fig 10: Hybrid System - Circuit Diagram (10 Of 30)

G07605326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

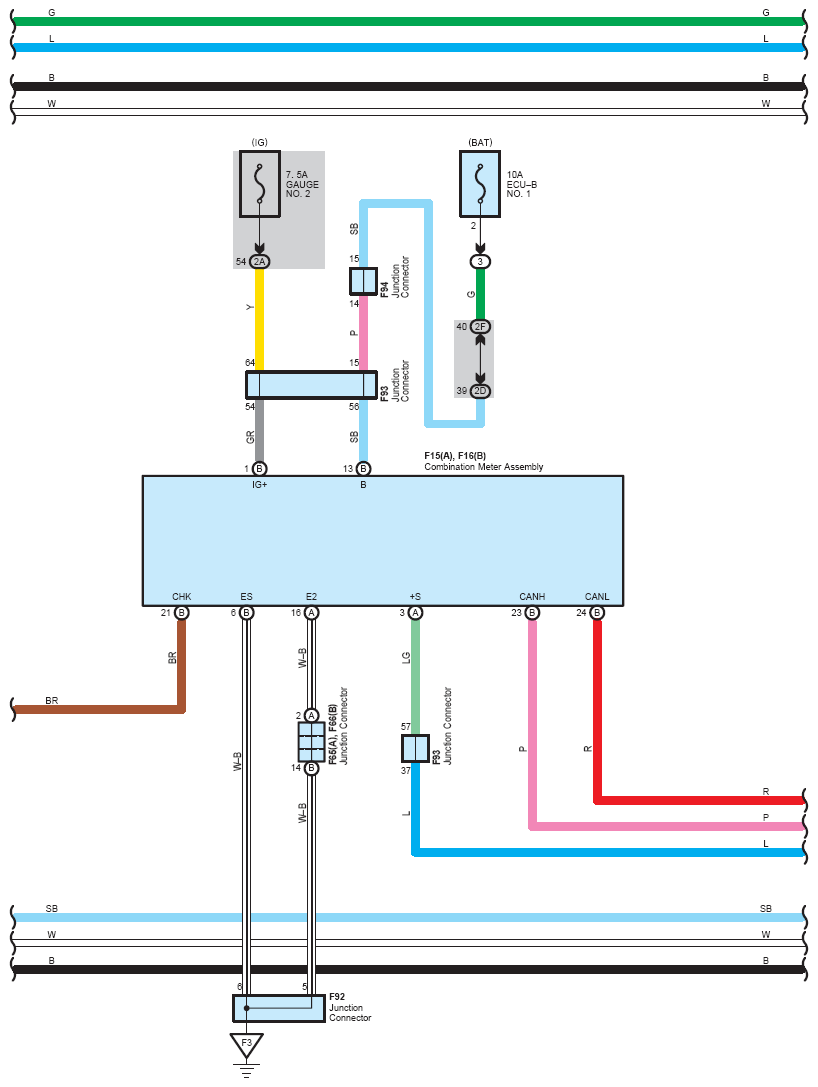

Fig 11: Hybrid System - Circuit Diagram (11 Of 30)

G07605327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

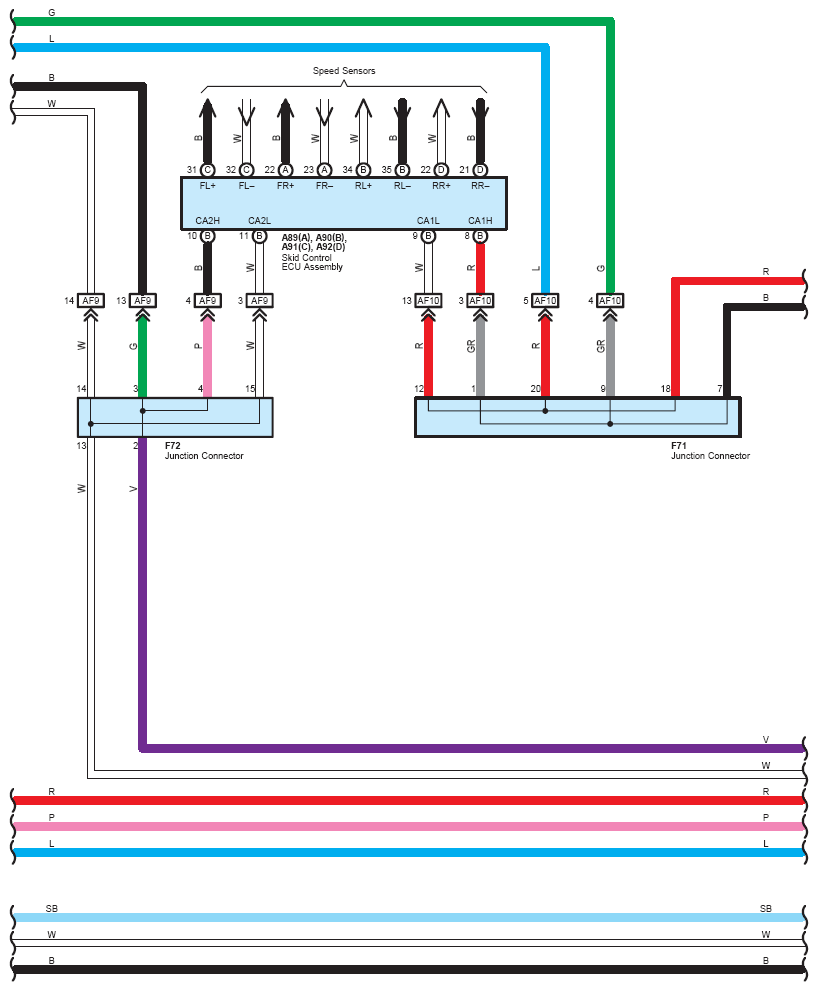

Fig 12: Hybrid System - Circuit Diagram (12 Of 30)

G07605328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

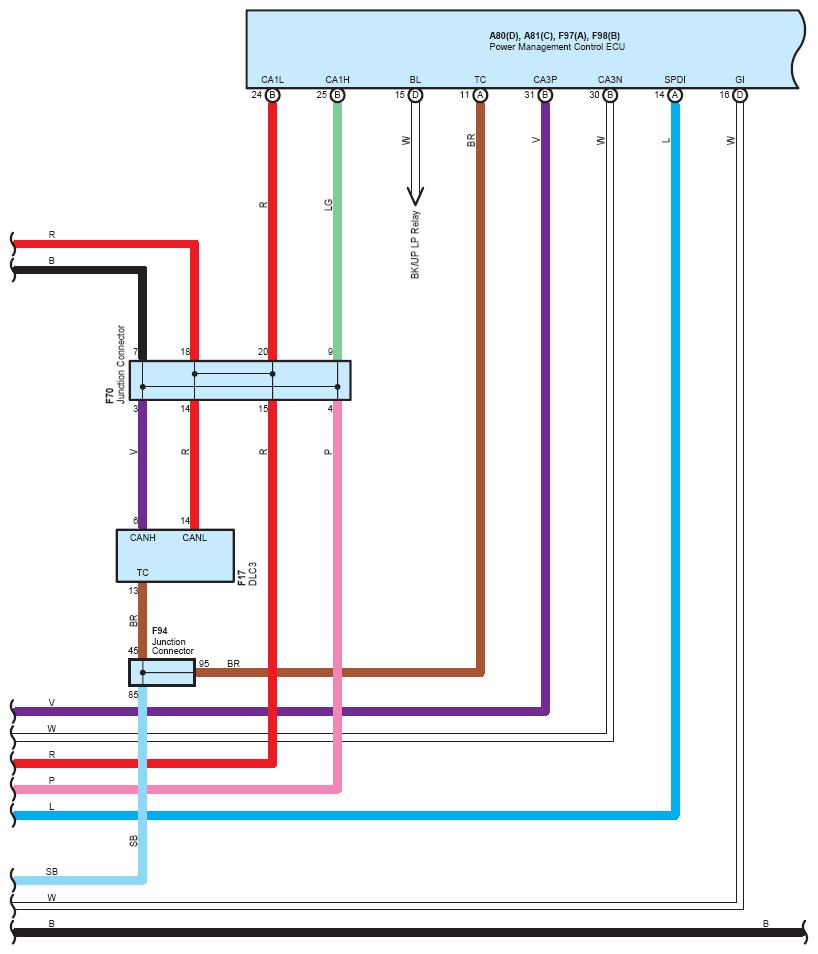

Fig 13: Hybrid System - Circuit Diagram (13 Of 30)

G07605329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

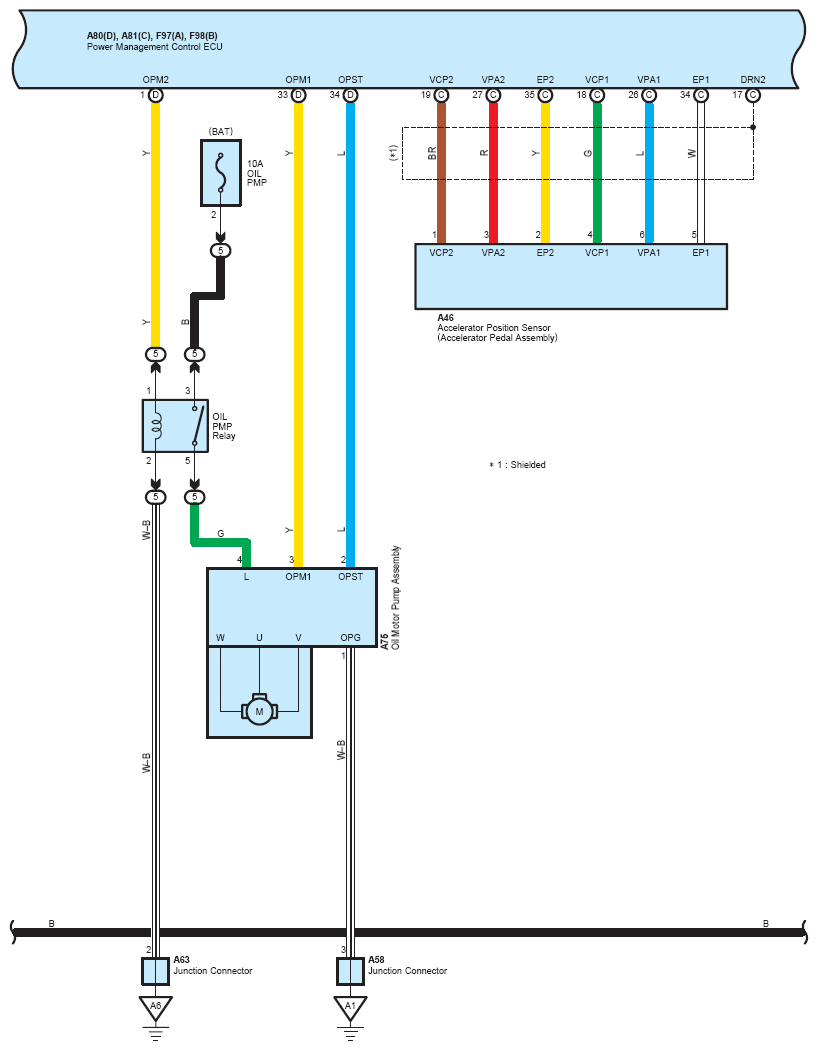

Fig 14: Hybrid System - Circuit Diagram (14 Of 30)

G07605330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

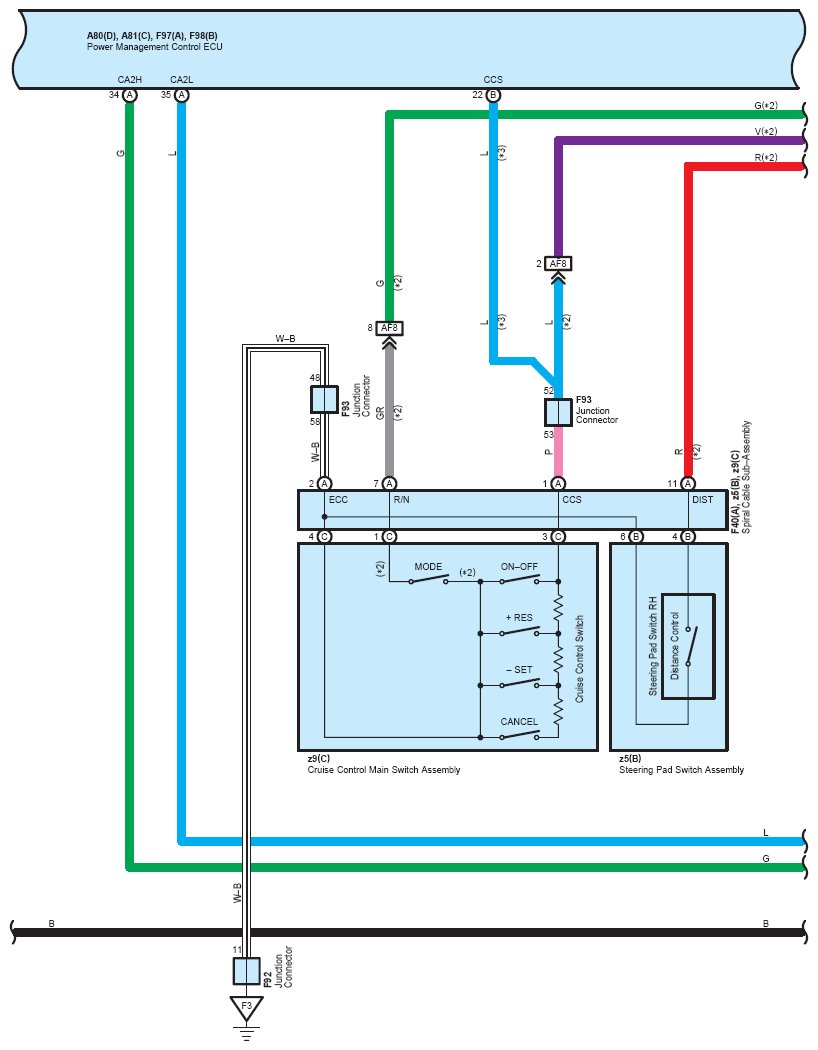

Fig 15: Hybrid System - Circuit Diagram (15 Of 30)

G07605331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

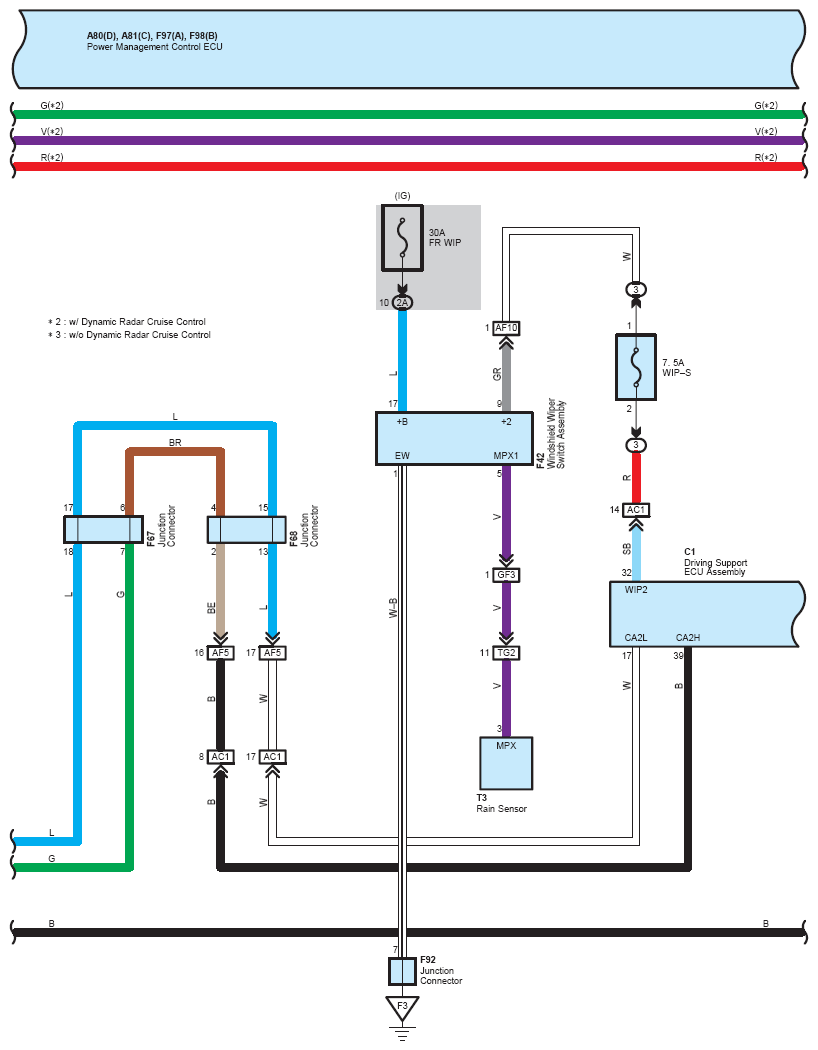

Fig 16: Hybrid System - Circuit Diagram (16 Of 30)

G07605332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

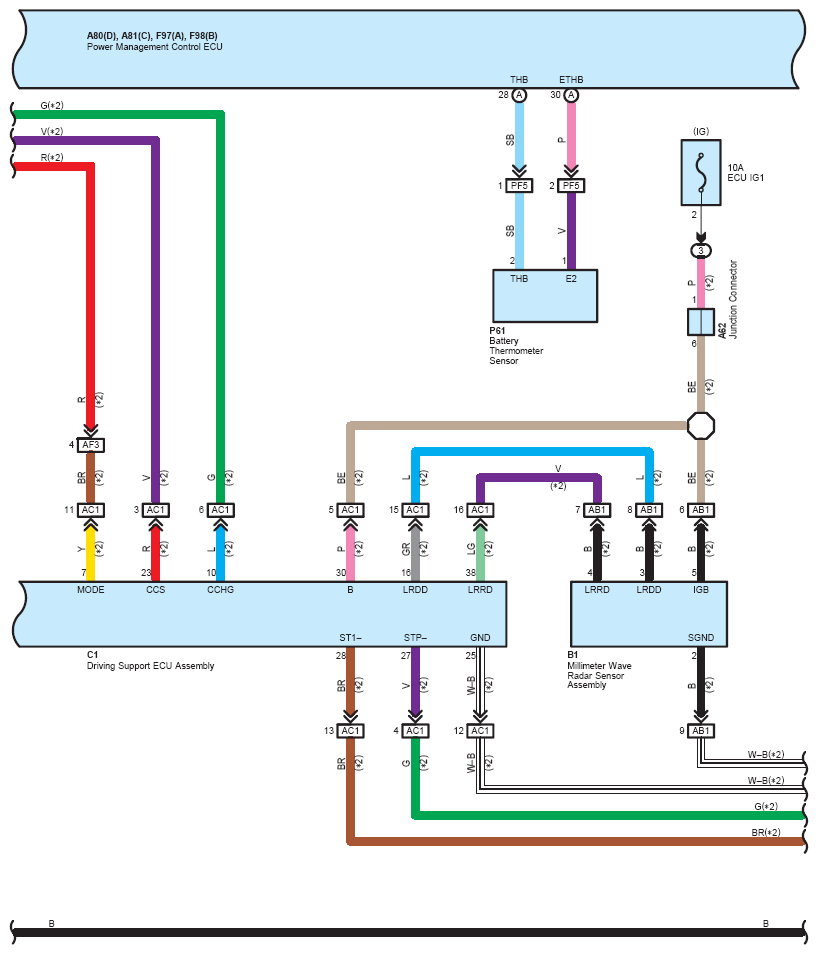

Fig 17: Hybrid System - Circuit Diagram (17 Of 30)

G07605333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

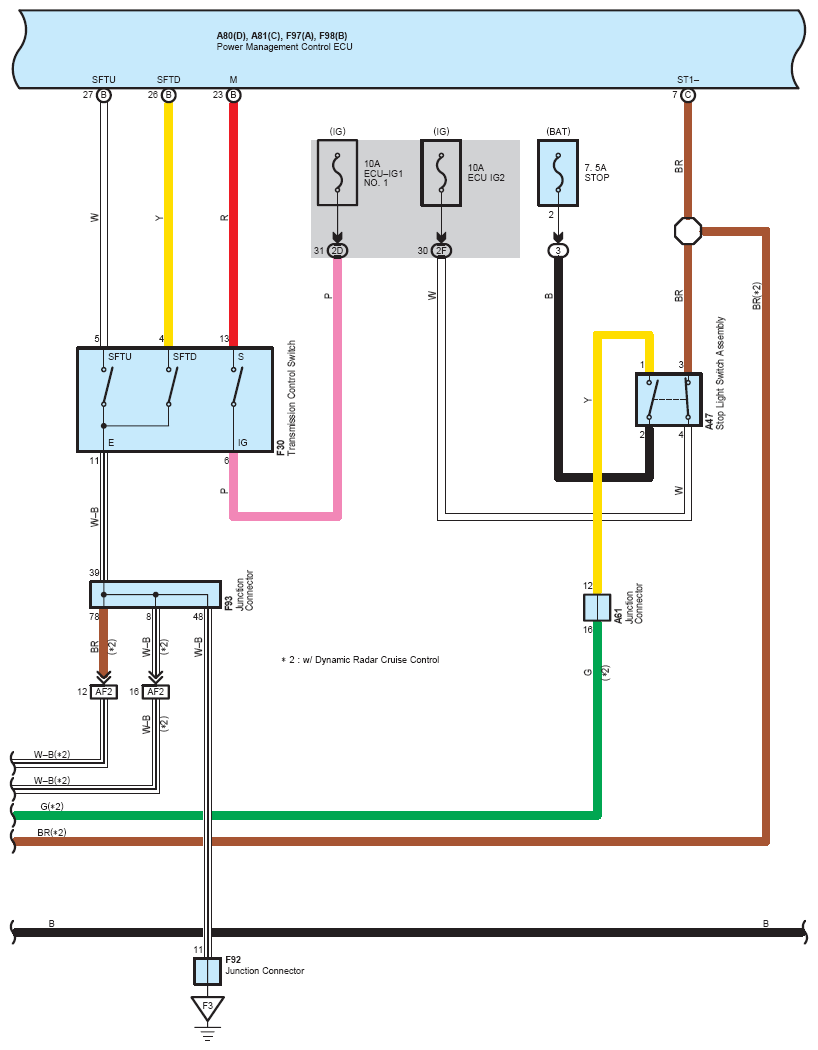

Fig 18: Hybrid System - Circuit Diagram (18 Of 30)

G07605334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

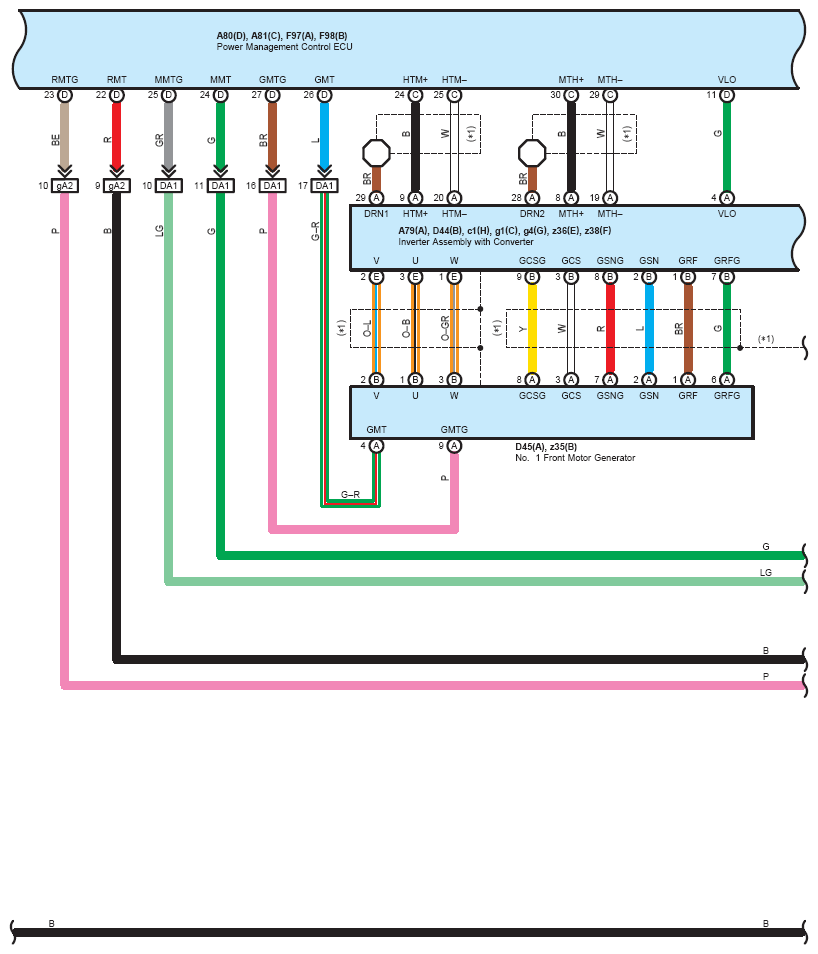

Fig 19: Hybrid System - Circuit Diagram (19 Of 30)

G07605335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

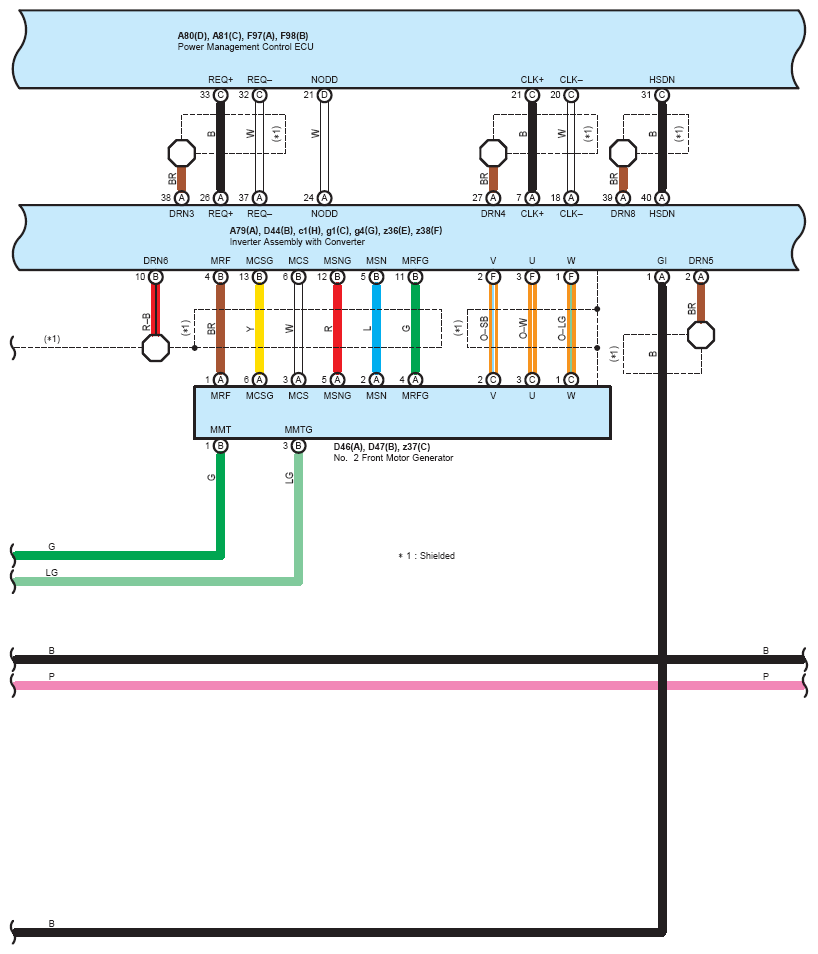

Fig 20: Hybrid System - Circuit Diagram (20 Of 30)

G07605336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

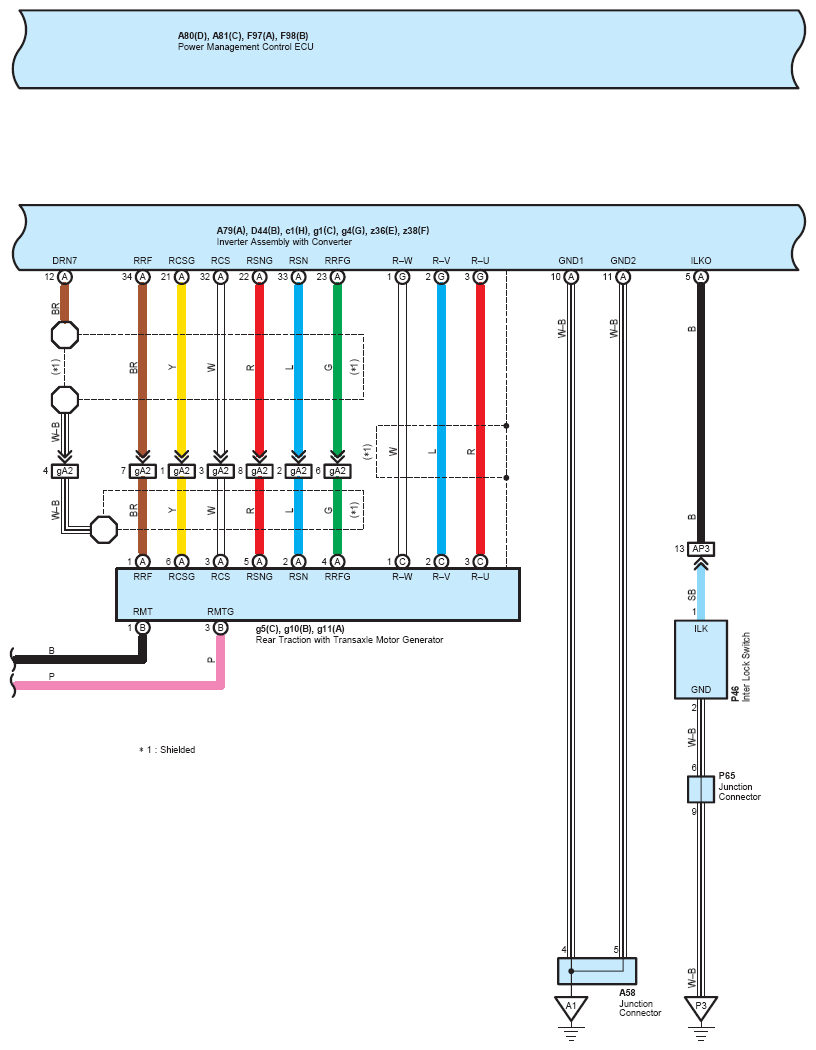

Fig 21: Hybrid System - Circuit Diagram (21 Of 30)

G07605337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

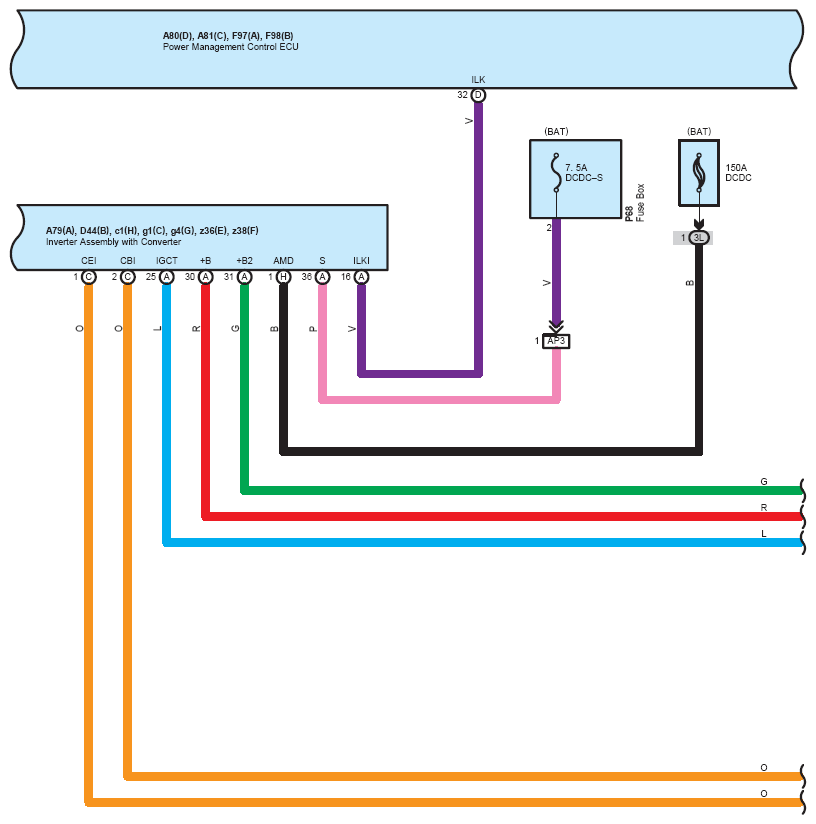

Fig 22: Hybrid System - Circuit Diagram (22 Of 30)

G07605338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

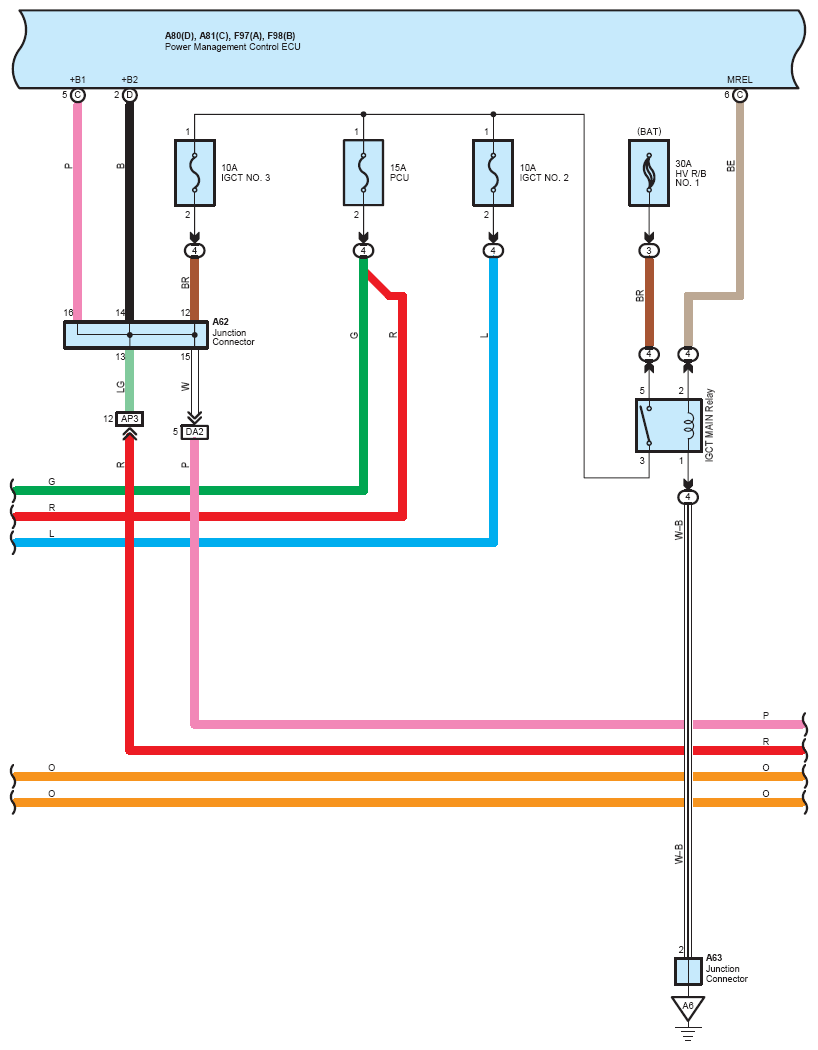

Fig 23: Hybrid System - Circuit Diagram (23 Of 30)

G07605339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

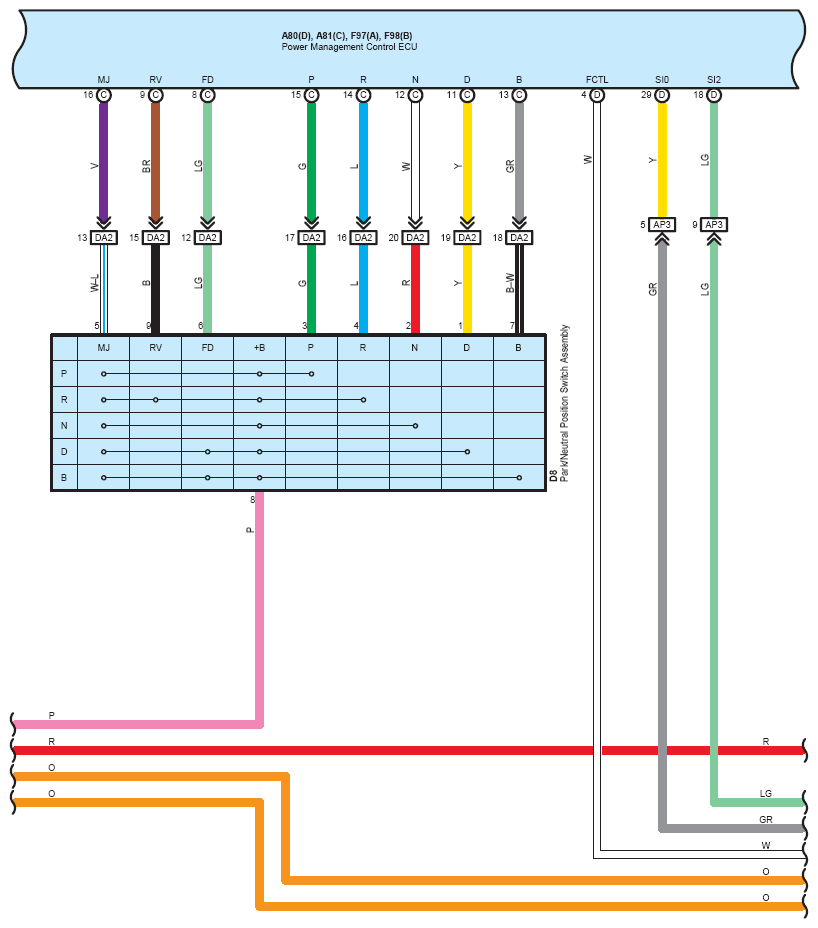

Fig 24: Hybrid System - Circuit Diagram (24 Of 30)

G07605340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

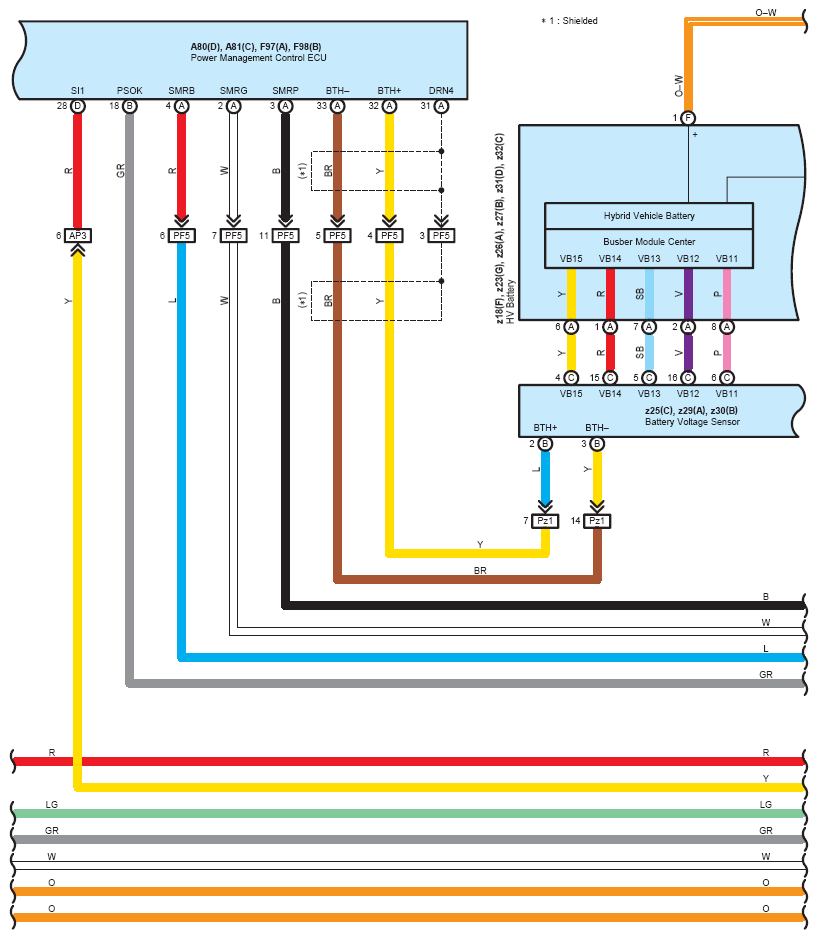

Fig 25: Hybrid System - Circuit Diagram (25 Of 30)

G07605341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

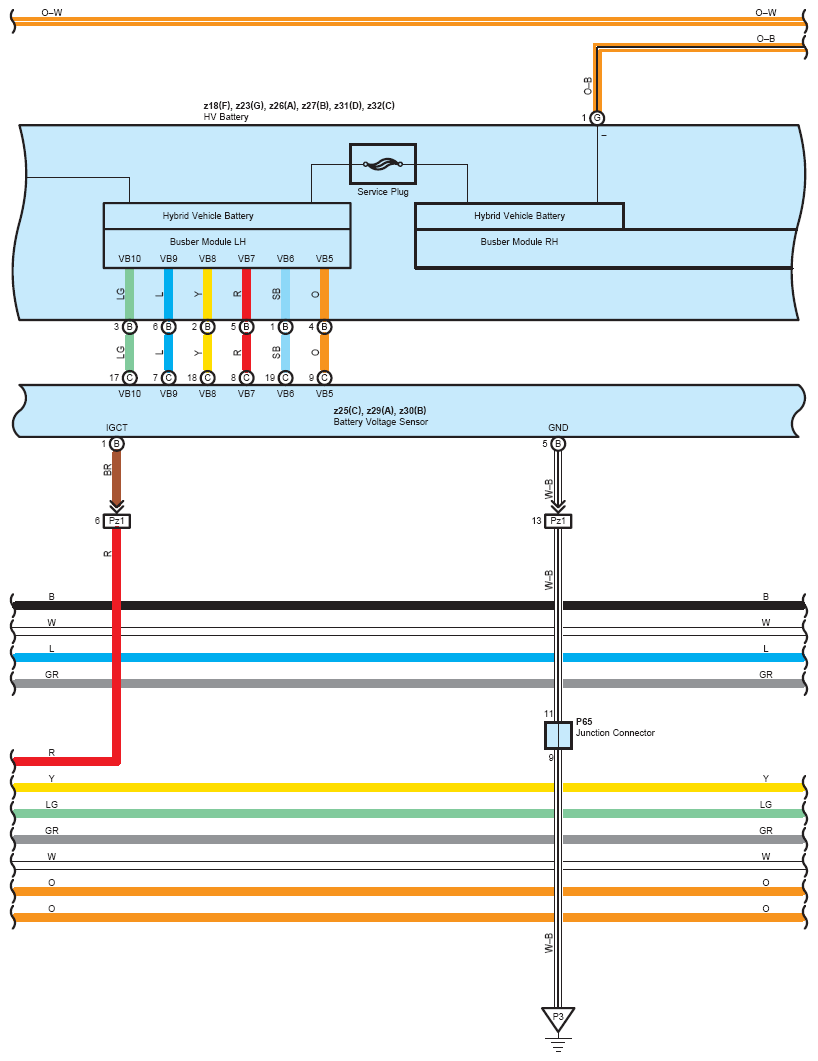

Fig 26: Hybrid System - Circuit Diagram (26 Of 30)

G07605342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

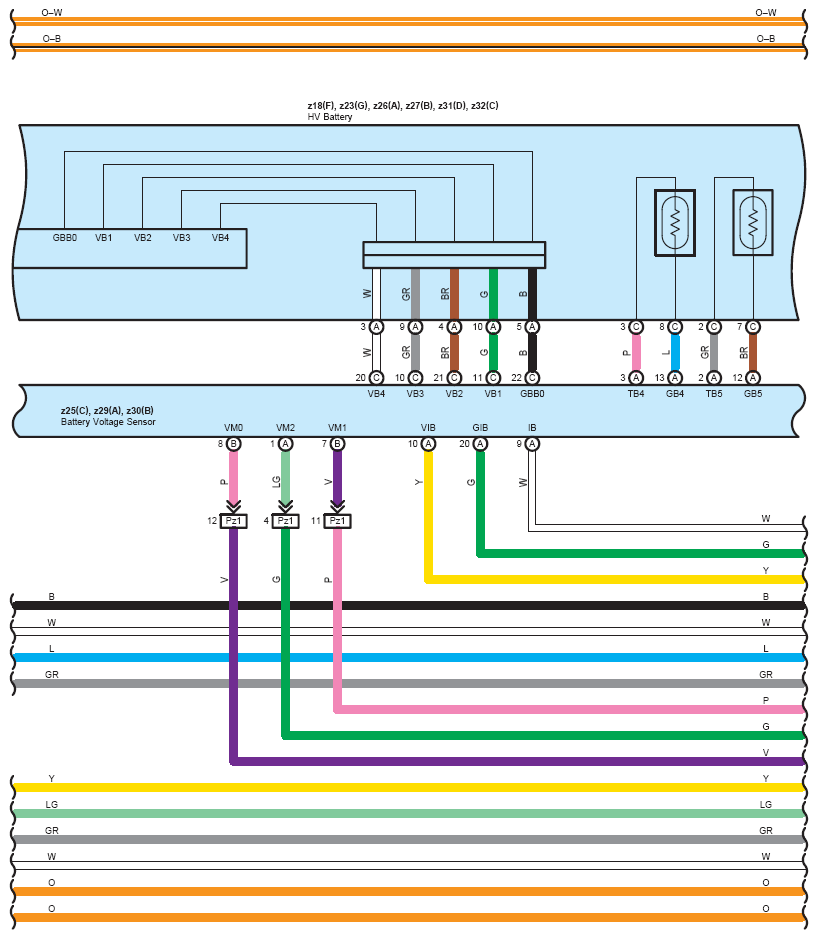

Fig 27: Hybrid System - Circuit Diagram (27 Of 30)

G07605343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

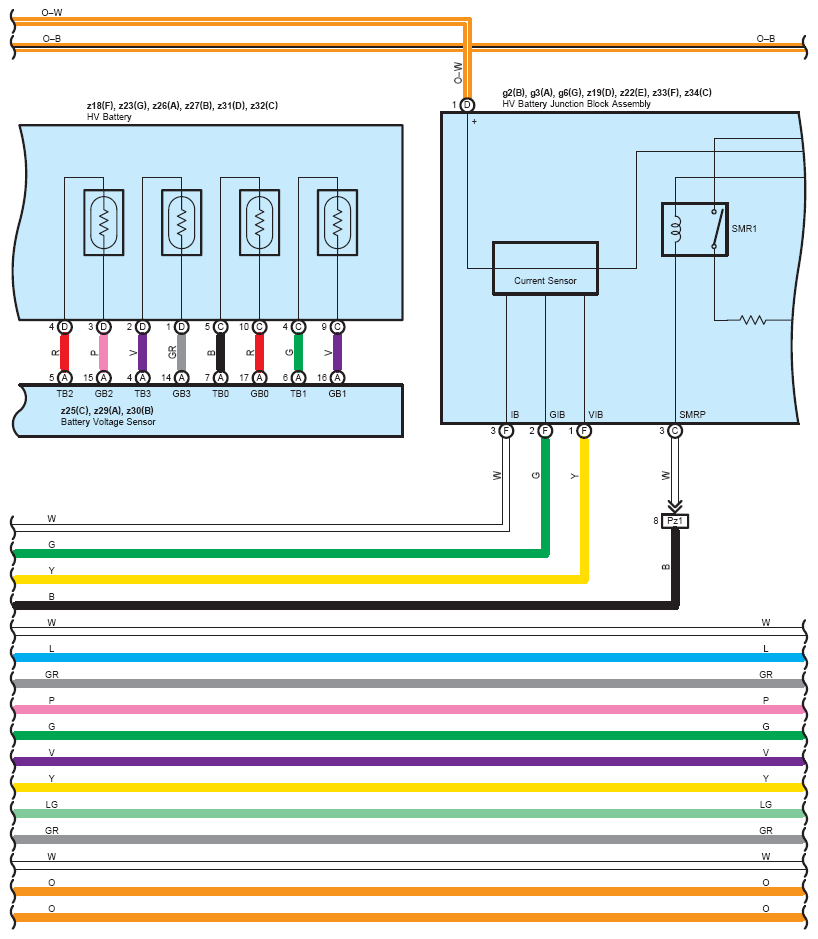

Fig 28: Hybrid System - Circuit Diagram (28 Of 30)

G07605344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

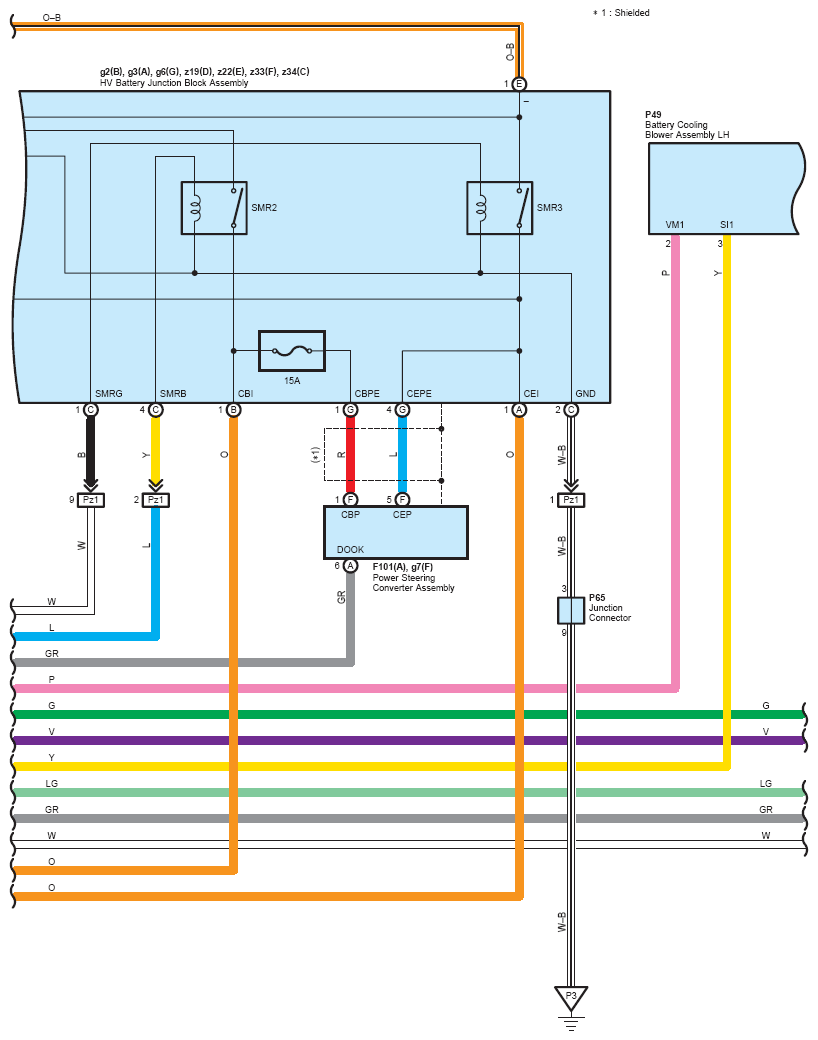

Fig 29: Hybrid System - Circuit Diagram (29 Of 30)

G07605345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

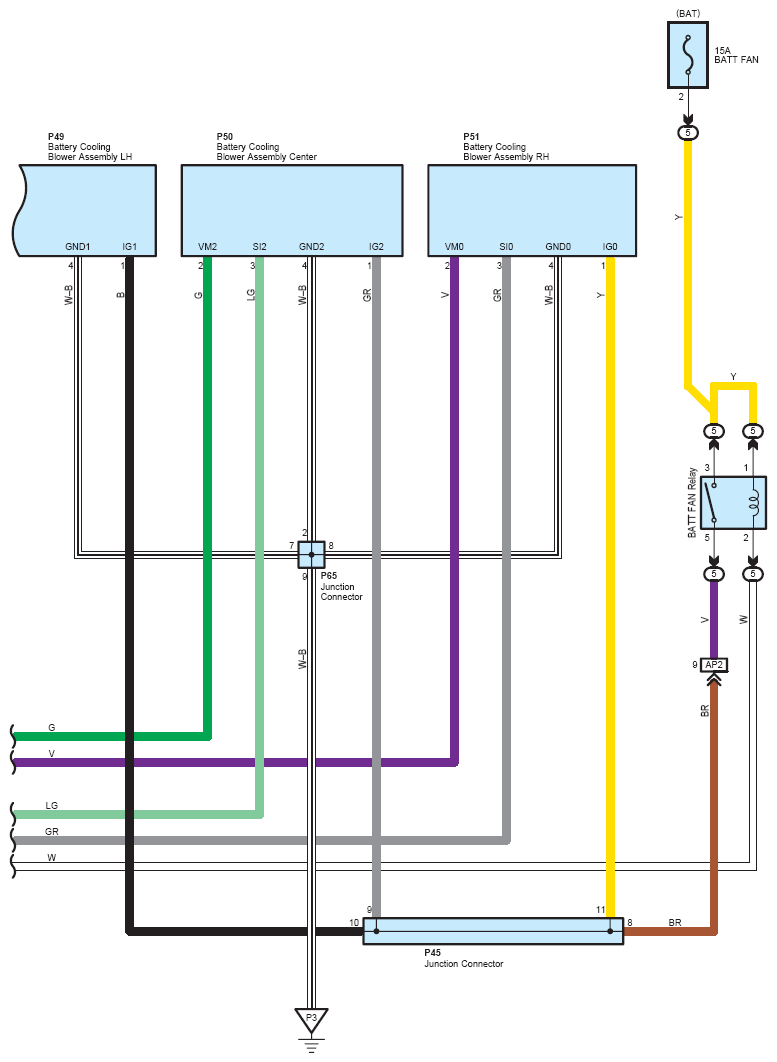

Fig 30: Hybrid System - Circuit Diagram (30 Of 30)

G07605346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
