Sliding Roof: Notes

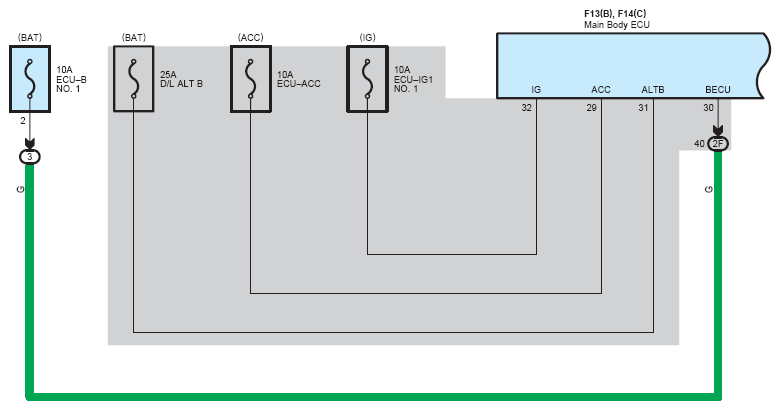

Fig 1: Sliding Roof - Circuit Diagram (1 Of 5)
G07605419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

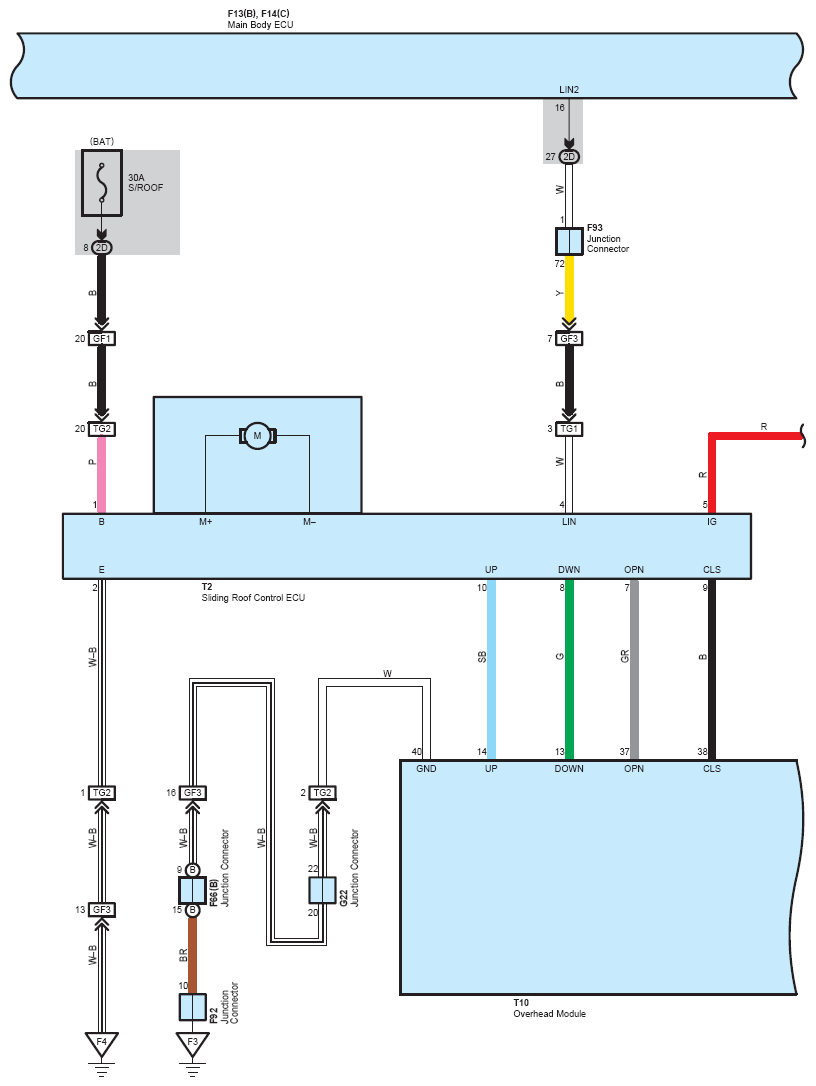

Fig 2: Sliding Roof - Circuit Diagram (2 Of 5)
G07605420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

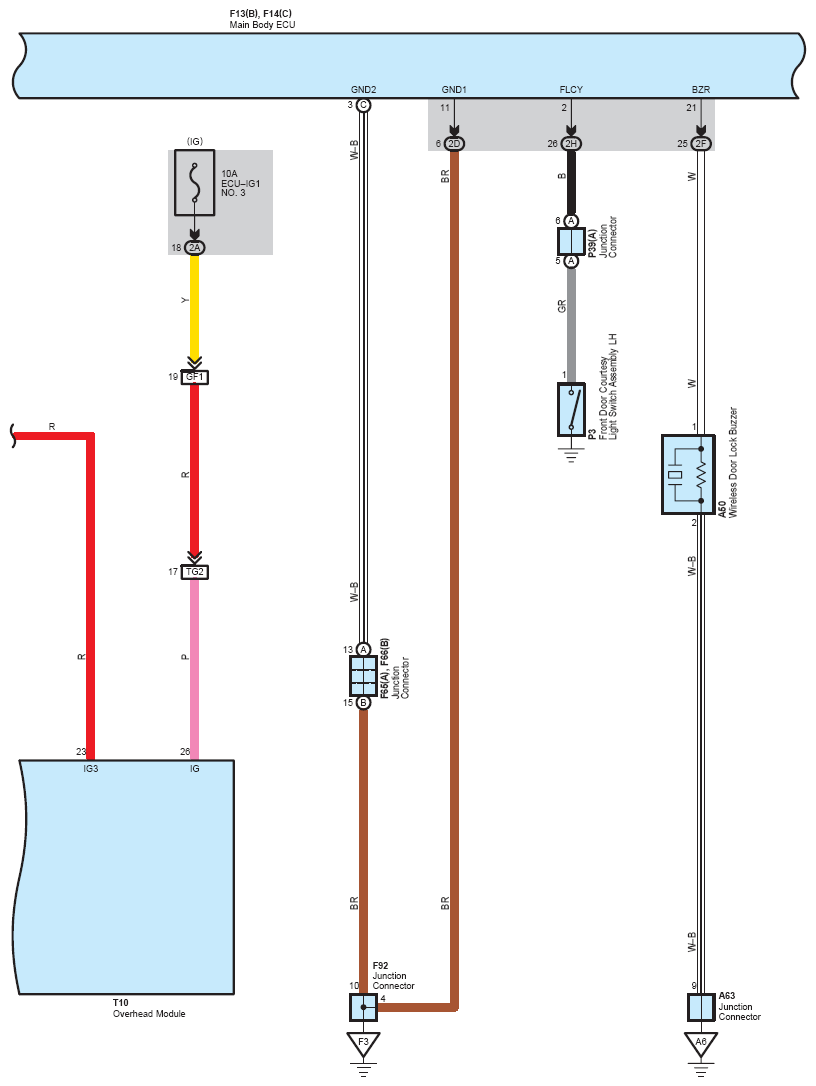

Fig 3: Sliding Roof - Circuit Diagram (3 Of 5)
G07605421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

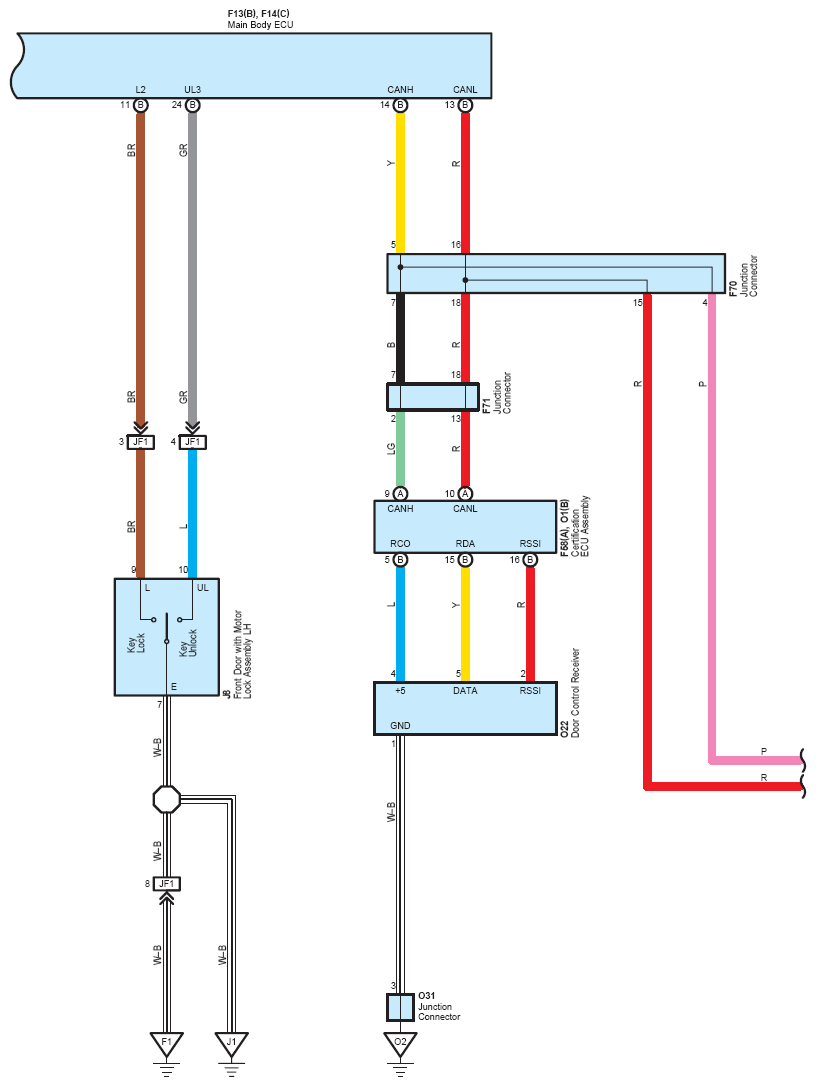

Fig 4: Sliding Roof - Circuit Diagram (4 Of 5)
G07605422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

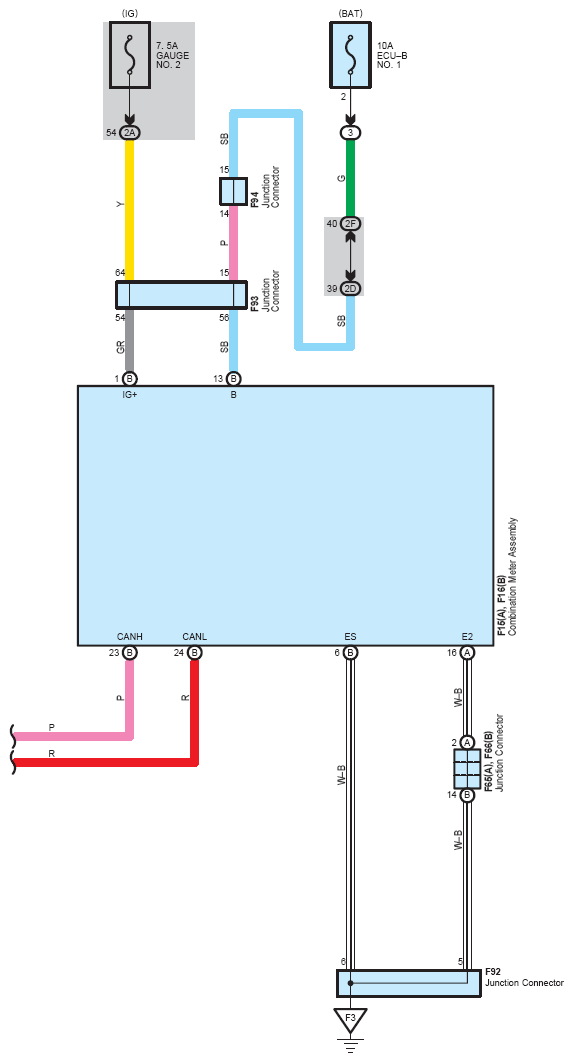

Fig 5: Sliding Roof - Circuit Diagram (5 Of 5)
G07605423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
