Sub Radiator: Components: Illustration

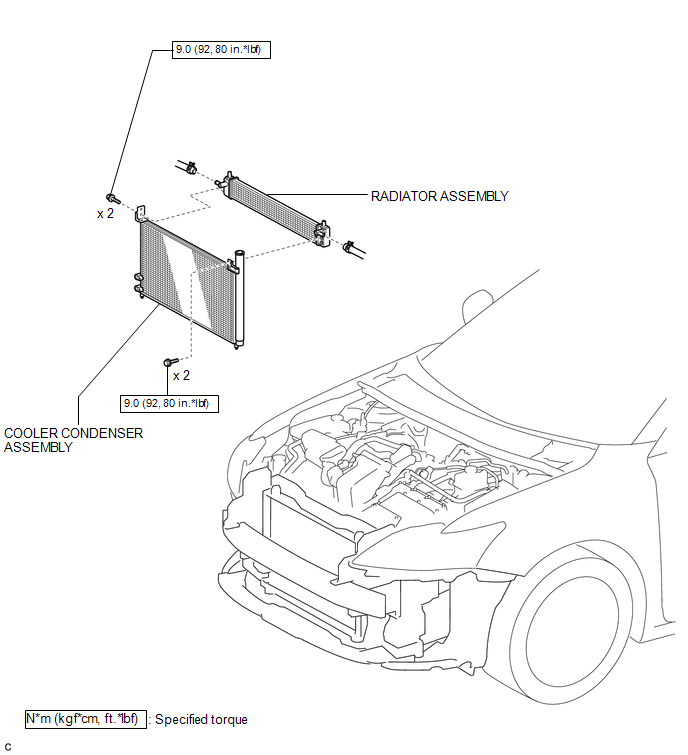

Fig 1: Identifying Sub Radiator Replacement Components With Torque Specifications
GTY357423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
