Inspection

2ZR-FXE ENGINE CONTROL: INTEGRATION RELAY: INSPECTION

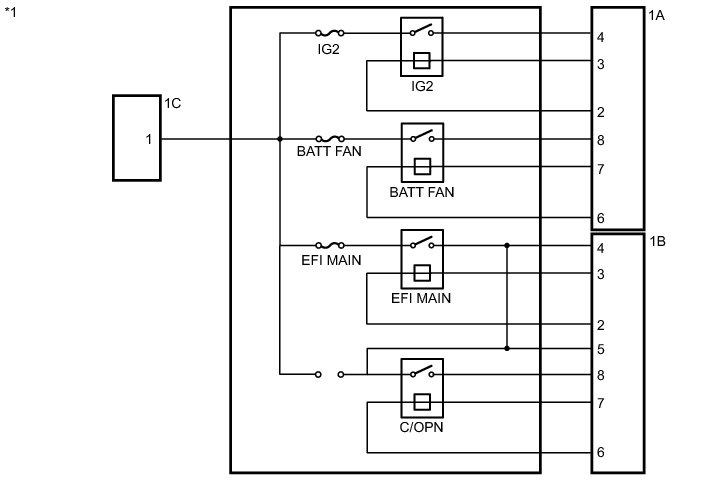

1. INSPECT NO. 2 INTEGRATION RELAY





Text in Illustration

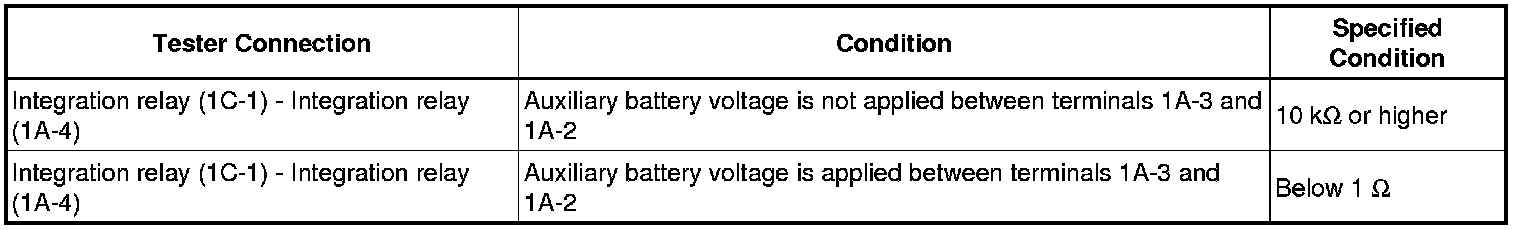

(a) IG2 RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the resistance is not as specified, replace the integration relay.

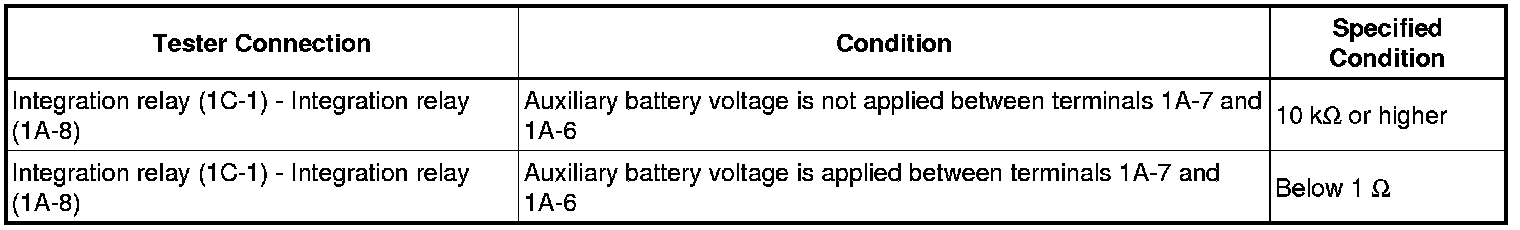

(b) BATT FAN RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the resistance is not as specified, replace the integration relay.

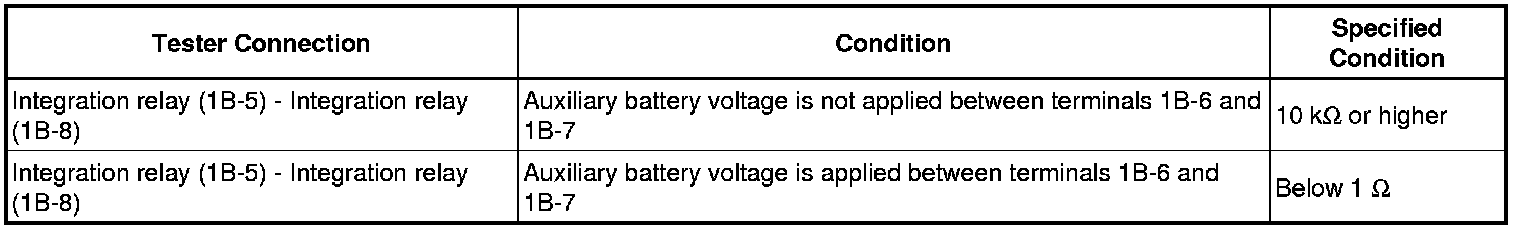

(c) EFI MAIN RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the resistance is not as specified, replace the integration relay.

(d) C/OPN RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the resistance is not as specified, replace the integration relay.
