Installation

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

(a) Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.

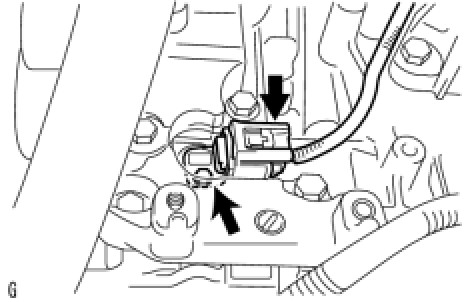

(b) Install the crankshaft position sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(c) Connect the crankshaft position sensor connector.

2. INSTALL COOLER COMPRESSOR ASSEMBLY

HINT
Installation

3. INSTALL GENERATOR ASSEMBLY

HINT
Installation
