Removal

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: REMOVAL

1. REMOVE GENERATOR ASSEMBLY

HINT
Removal

2. DISCONNECT COOLER COMPRESSOR ASSEMBLY

HINT
Removal

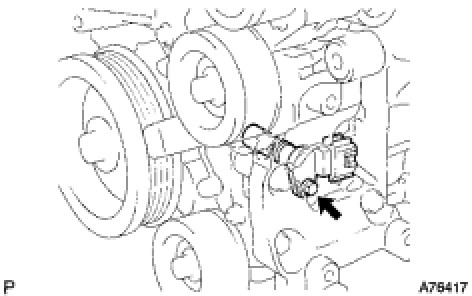

3. REMOVE CRANKSHAFT POSITION SENSOR

(a) Disconnect the crankshaft position sensor connector.





(b) Remove the bolt and crankshaft position sensor.
