Installation

PRE-COLLISION: SEAT BELT CONTROL ECU: INSTALLATION

1. INSTALL SEAT BELT CONTROL ECU

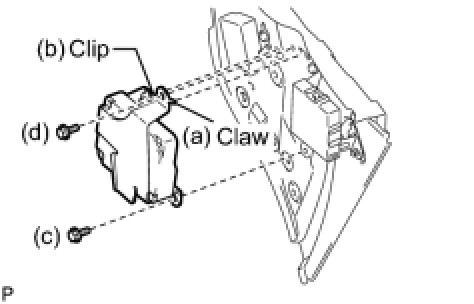

(a) Engage the claw.





(b) Engage the clip.

(c) Install the seat belt control ECU with the 2 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(d) Connect the connector.

2. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH Reassembly

3. INSTALL REAR FLOOR FINISH PLATE Reassembly

4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Reassembly

5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Reassembly

6. INSTALL SPARE WHEEL COVER TRAY

7. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSPECT SRS WARNING LIGHT

Diagnosis System
