Installation

2GR-FE STARTING: ENGINE SWITCH: INSTALLATION

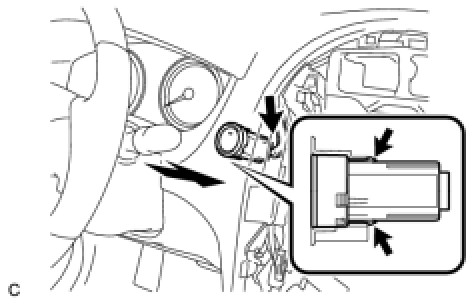

1. INSTALL ENGINE SWITCH

(a) Attach the 2 claws to install the switch.





(b) Connect the switch connector.

2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) Installation

3. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display) Installation

4. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

6. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Installation

7. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

9. ADJUST CLOCK
