Removal

2GR-FE STARTING: ENGINE SWITCH: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

2. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Removal

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

5. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

6. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) Removal

7. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display) Removal

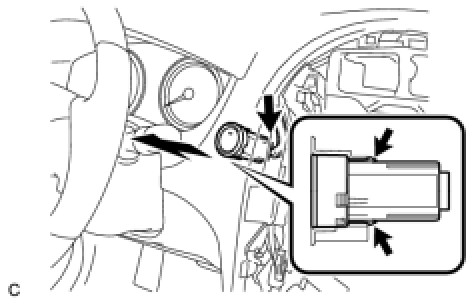

8. REMOVE ENGINE SWITCH

(a) Disconnect the switch connector.





(b) Detach the 2 claws and remove the switch.
