Manifold Absolute Pressure Sensor: Components: Illustration

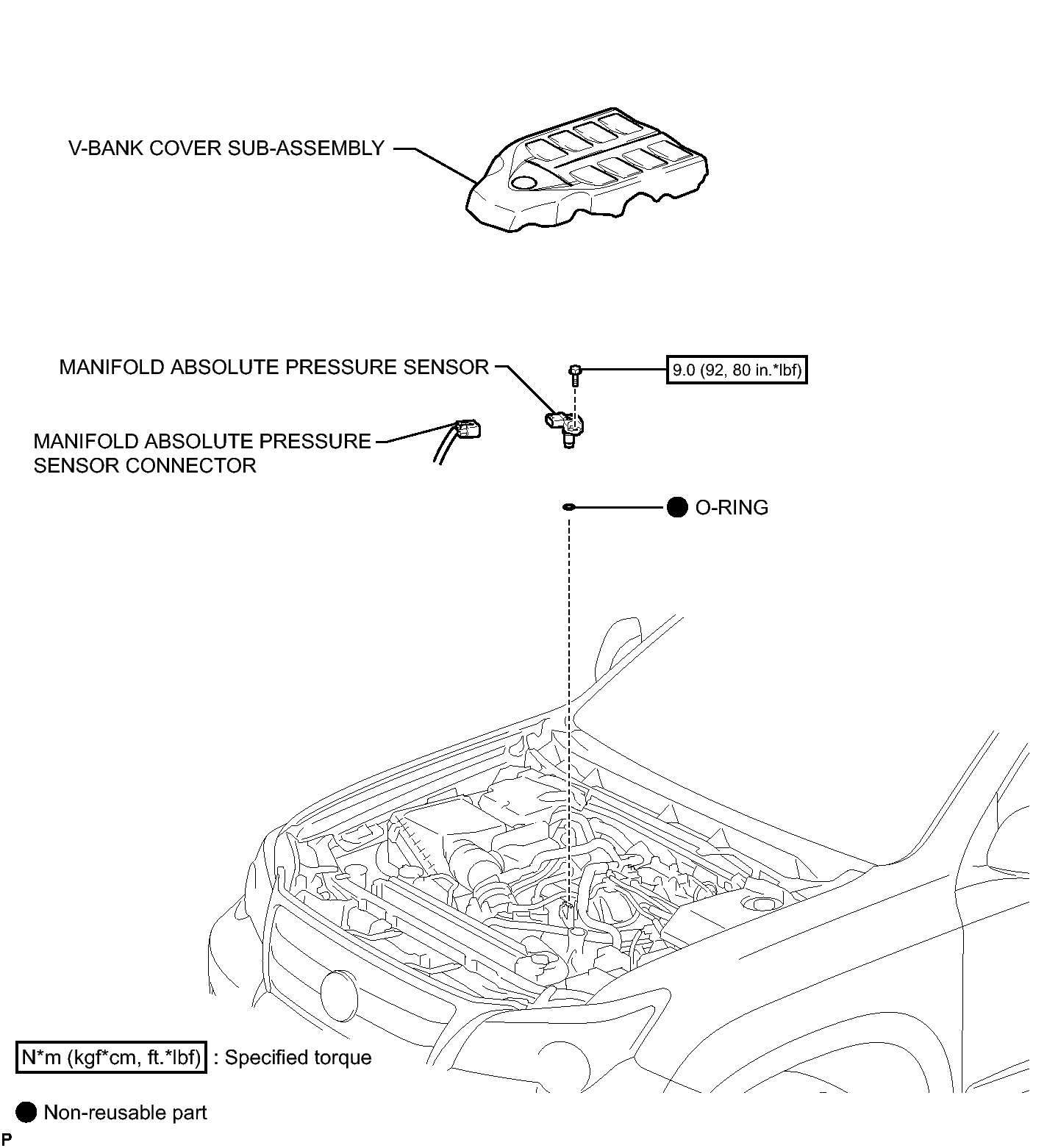

Fig 1: Identifying Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY268531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
