Transmission Control Cable: Components: Illustration

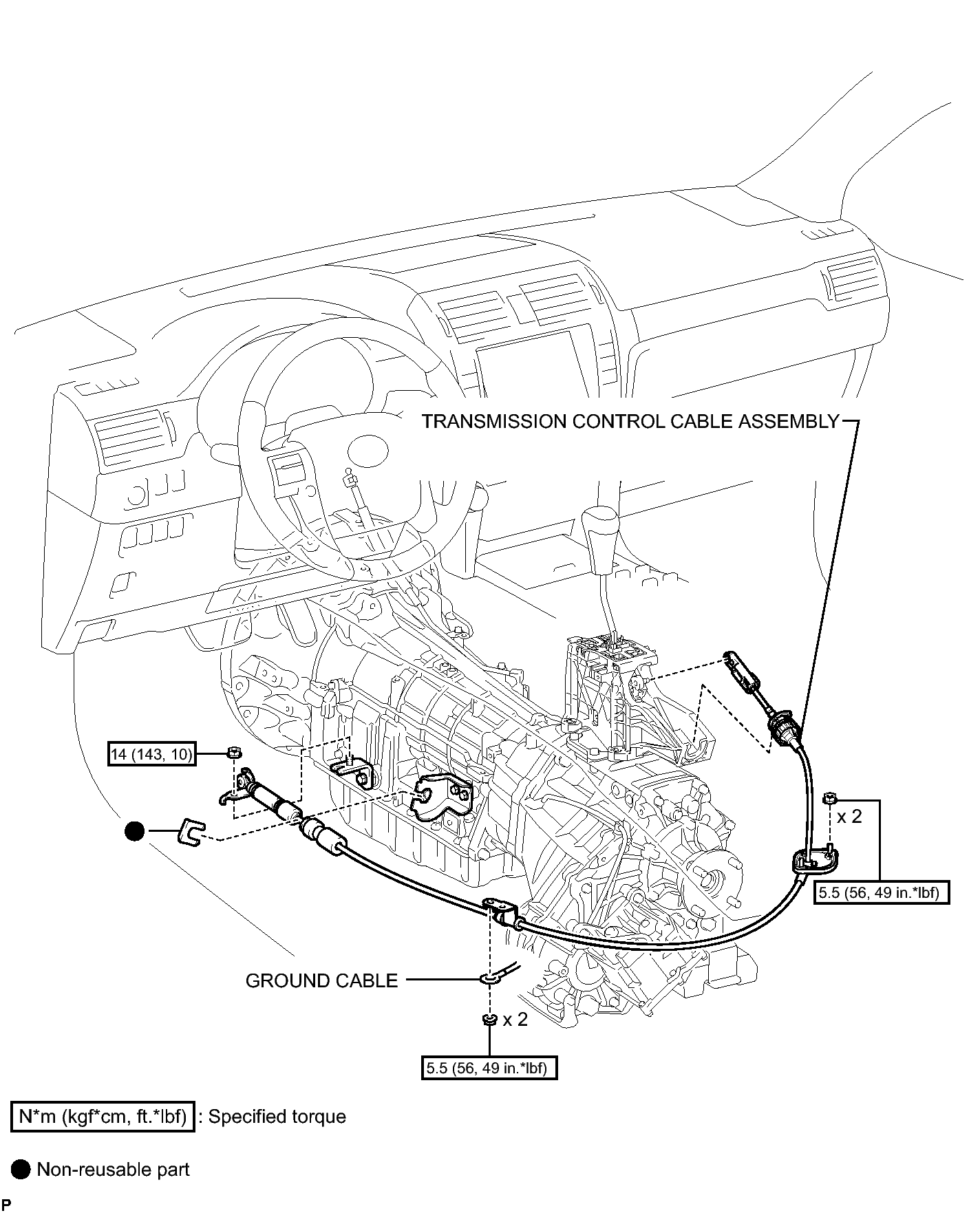

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications
GTY284153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
