Main Relay (Computer/Fuel System): Locations





2AZ-FXE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

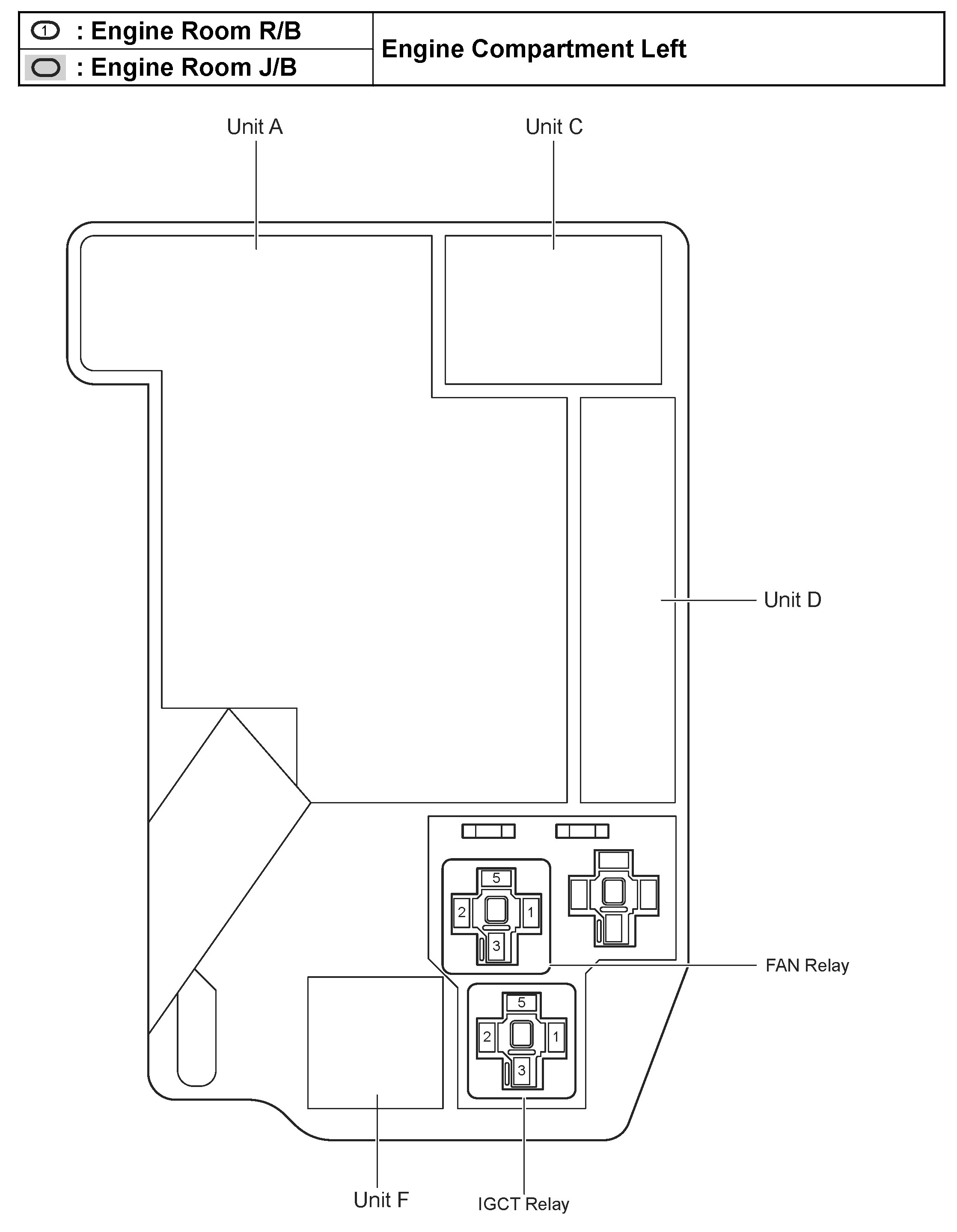

22 - Engine Room R/B, Engine Room J/B - Engine Compartment Left:

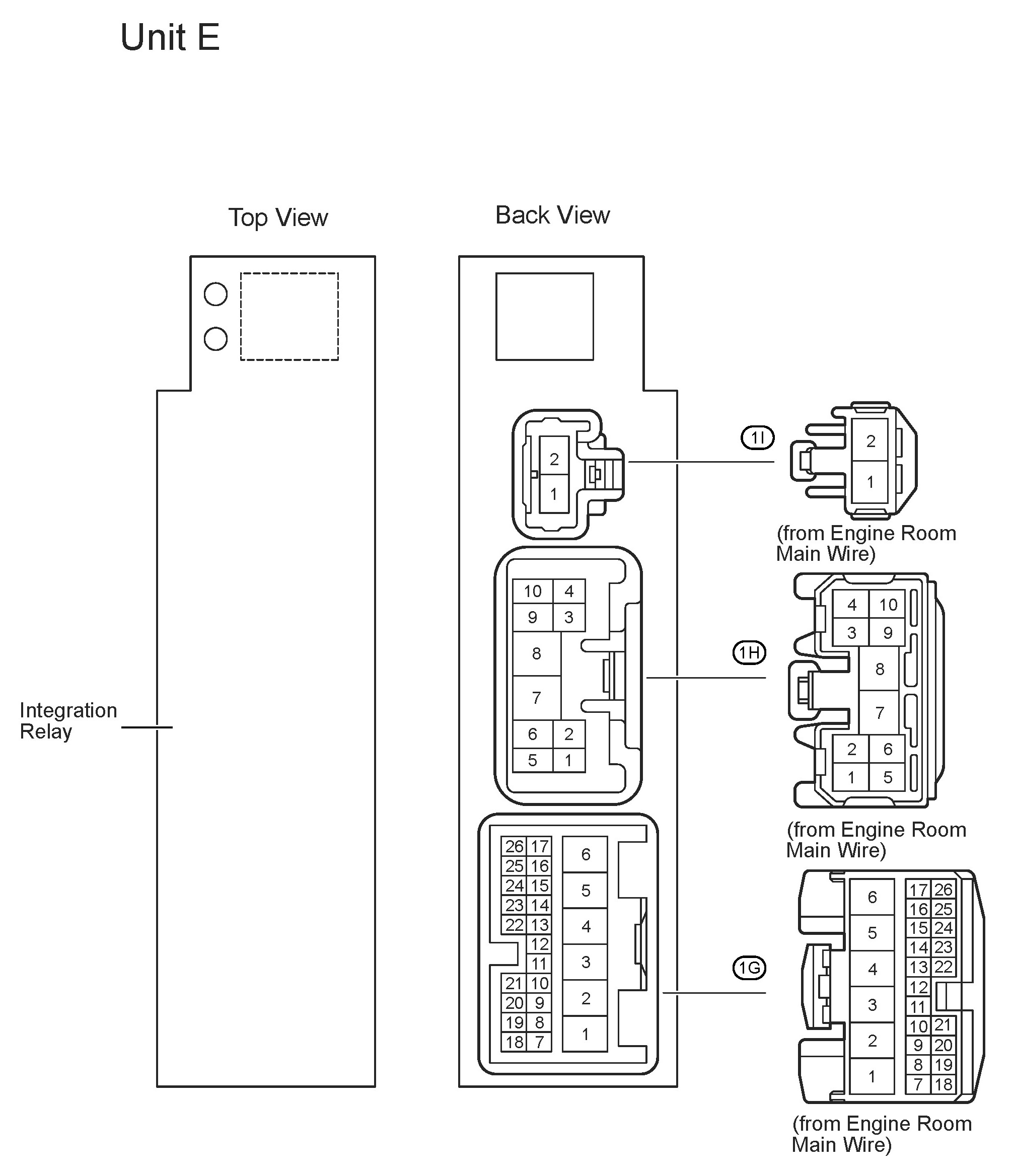

25 - Engine Room R/B, Engine Room J/B - Engine Compartment Left:
