Mass Air Flow Meter: Removal: Removal

  1. REMOVE FRONT WIPER MOTOR AND LINK
    1. Remove the front wiper motor and link. Refer to REMOVAL .
  2. REMOVE WATER GUARD PLATE RH  . Refer to REMOVAL - Step 6
  3. REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL  . Refer to REMOVAL - Step 7
  4. REMOVE COWL BODY MOUNTING REINFORCEMENT RH  . Refer to REMOVAL - Step 8
  5. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  6. REMOVE MASS AIR FLOW METER
    1. Disconnect the mass air flow meter connector.

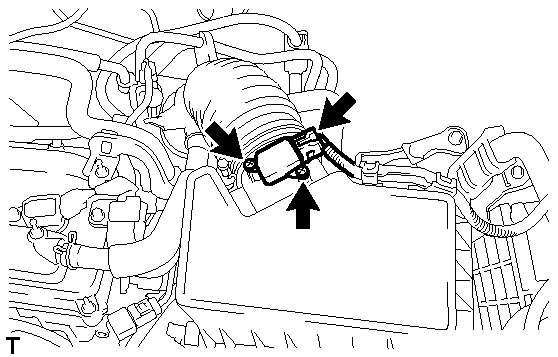

      Fig 1: Identifying Mass Air Flow Meter Connector & Screws
      GTY284612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter.
