System Diagram

  1. MOST NETWORK COMMUNICATION LINE

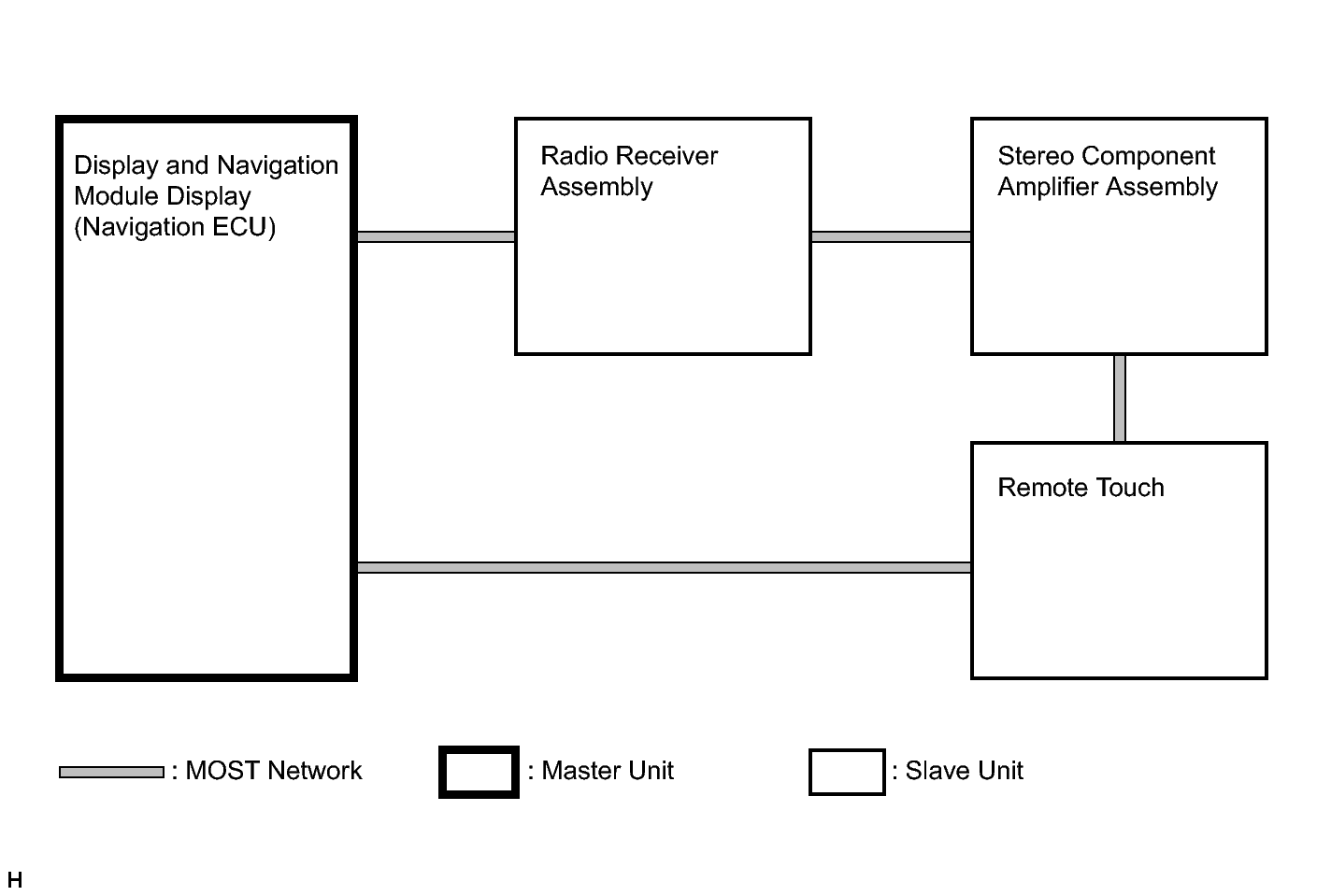

    Fig 1: Identifying Navigation System Diagram (Most Network Communication Line)
    GTY265801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN COMMUNICATION LINE

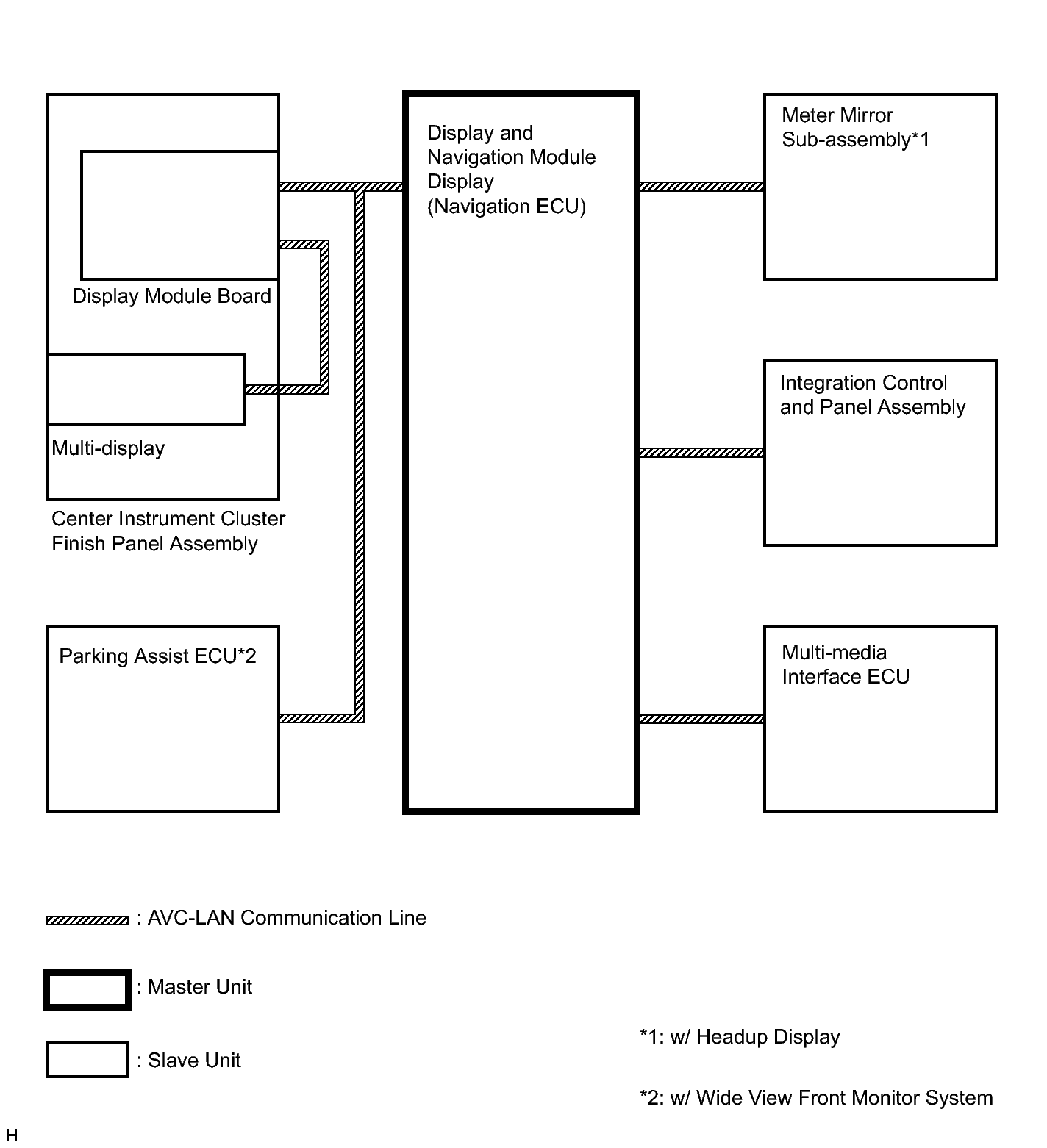

    Fig 2: Identifying Navigation System Diagram (AVC-LAN Communication Line)
    GTY287441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. OTHER

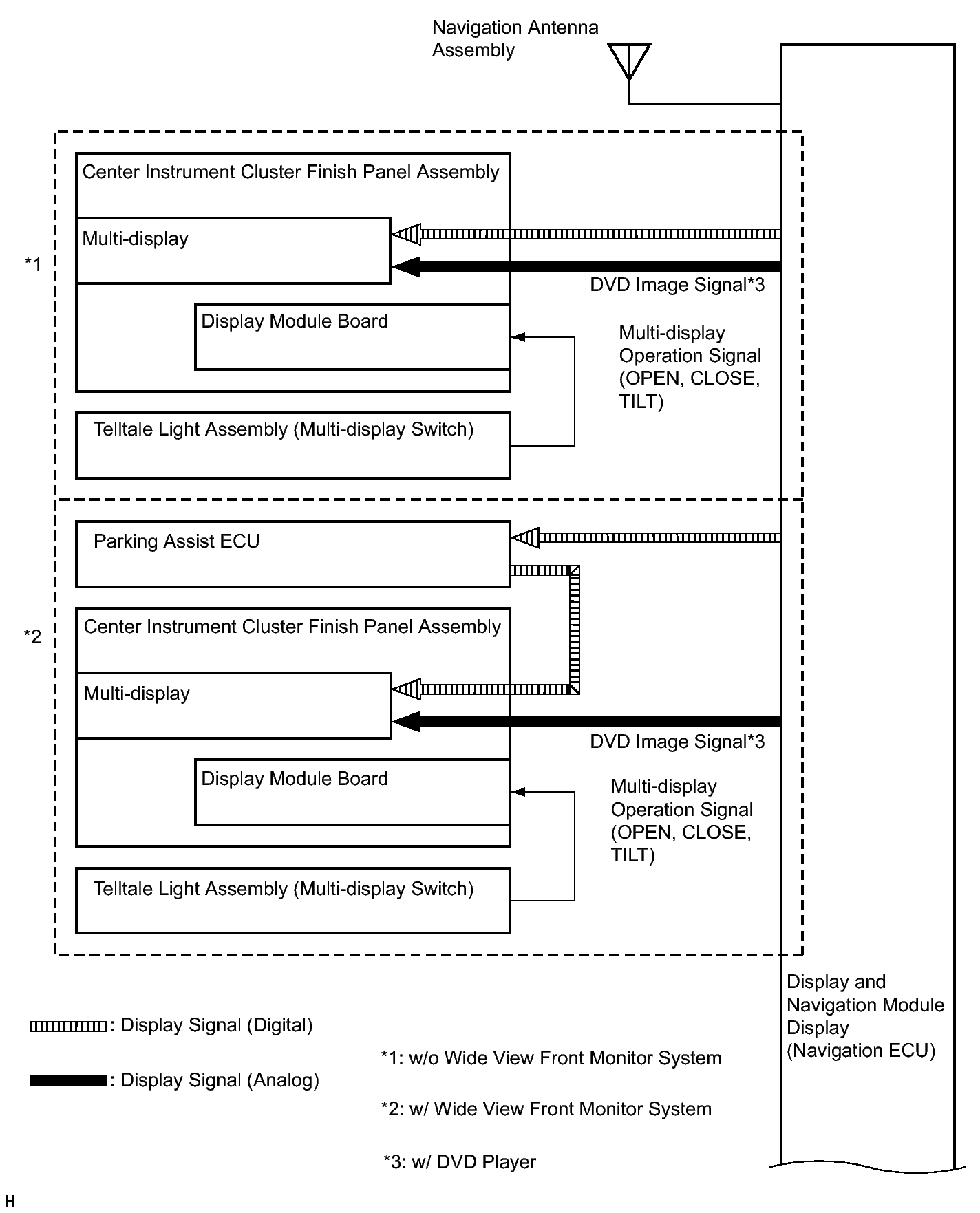

    Fig 3: Identifying Navigation System Diagram (Other) (1 Of 2)
    GTY257732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

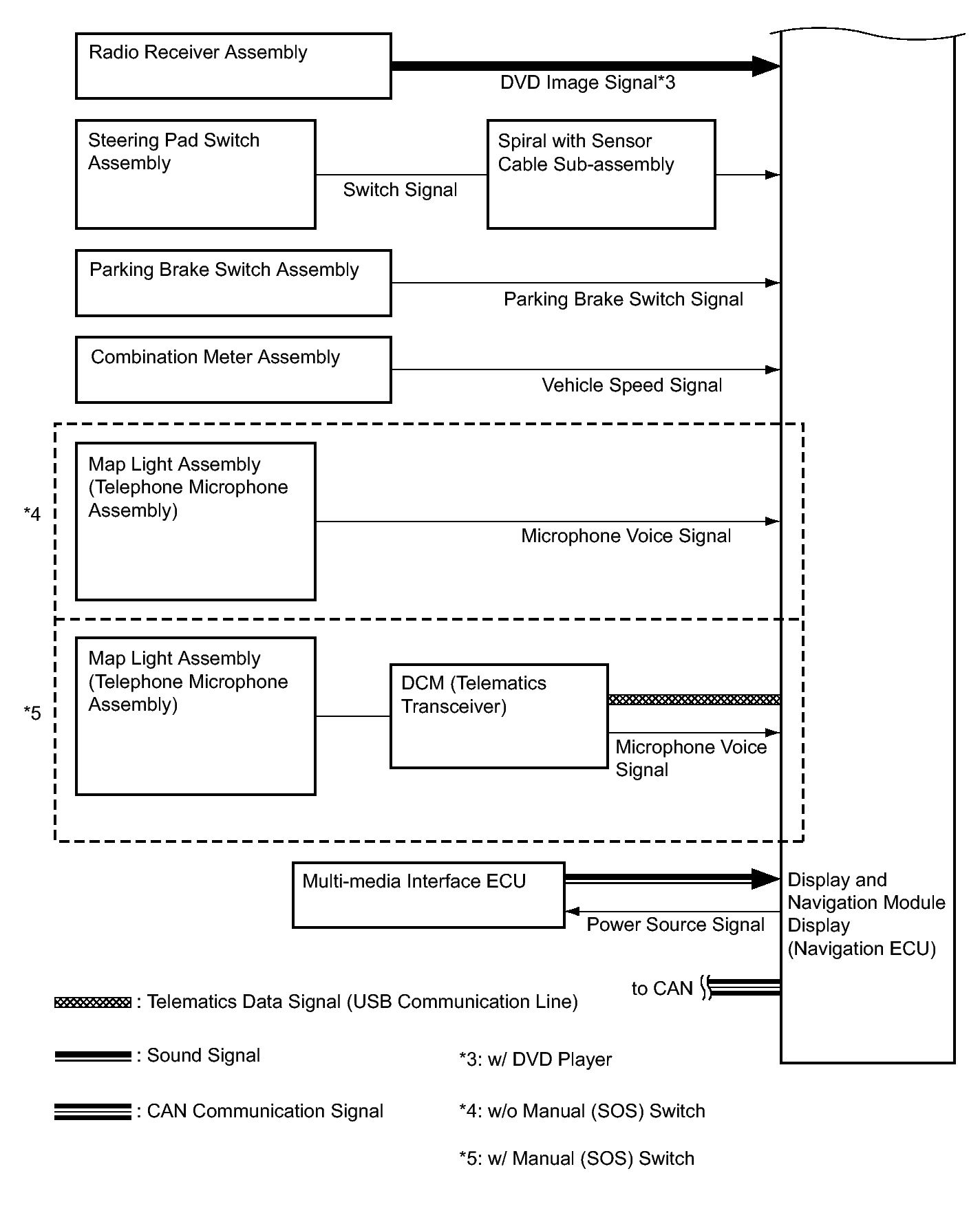

    Fig 4: Identifying Navigation System Diagram (Other) (2 Of 2)
    GTY286834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
