Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical/Main Body/Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Communication RR-Door Motor	Connection status between power window regulator motor (for rear RH) and main body ECU (multiplex network body ECU)/OK or STOP	OK: Normal communication STOP: Communication stopped	-

   OK

   On the Techstream screen, OK is displayed.

NG → See step   8

OK: Go to next step

1. Enter the following menus: Body Electrical/RR-Door Motor/Data List.
2. Read the Data List according to the display on the Techstream.
   RR-DOOR MOTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH SIDE))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear RH side power window manual up switch signal/ON or OFF	ON: Rear RH door power window manual up switch operated OFF: Rear RH door power window manual up switch not operated	-
   RR Door P/W Down SW	Rear RH side power window manual down switch signal/ON or OFF	ON: Rear RH door power window manual down switch operated OFF: Rear RH door power window manual down switch not operated	-

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

NG → See step   4

OK: Go to next step

1. Enter the following menus: Body Electrical/RR-Door Motor/Active Test.
2. Perform the Active Test according to the display on the Techstream.
   RR-DOOR MOTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH SIDE))



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	OFF/UP/DOWN	-

   OK

   Rear RH power window operates normally.

   WARNING: Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

NG → See step   7

OK → See step   9

1. Remove the power window regulator switch assembly (for rear RH side). Refer to REMOVAL .

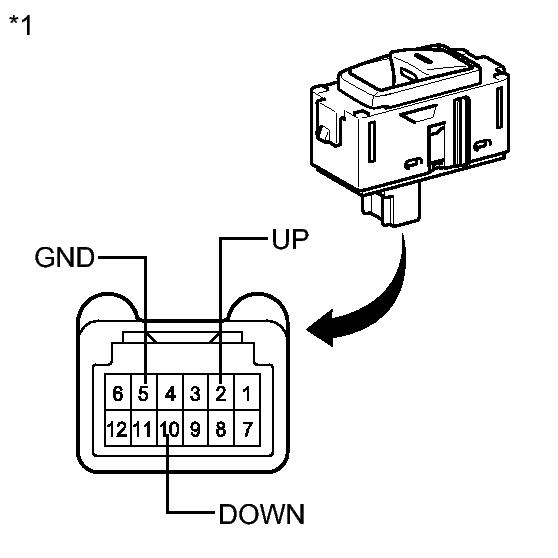

   Fig 1: Measuring Resistance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   2 (UP) - 5 (GND)	Auto up or up position	Below 1 Ω
   10 (DOWN) - 5 (GND)	Auto down or down position	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Power Window Regulator Switch Assembly (for Rear RH Side))

NG → See step   6

OK: Go to next step

1. Disconnect the power window regulator motor assembly (for rear RH side) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J2-2 (UP) - J3-10 (UP)	Always	Below 1 Ω
   J2-10 (DOWN) - J3-7 (DOWN)	Always	Below 1 Ω
   J2-5 (GND) - Body ground	Always	Below 1 Ω
   J2-2 (UP) - Body ground	Always	10 kΩ or higher
   J2-10 (DOWN) - Body ground	Always	10 kΩ or higher
   J3-10 (UP) - Body ground	Always	10 kΩ or higher
   J3-7 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
