Combination Meter and Headup Display: Notes

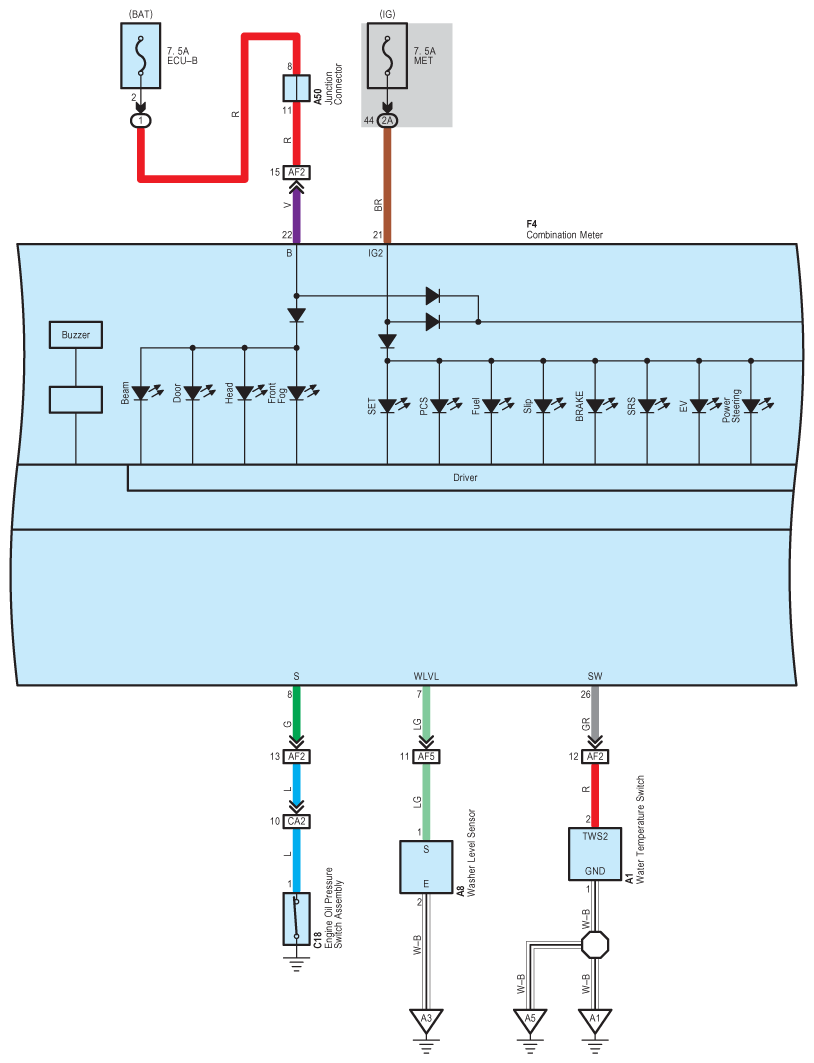

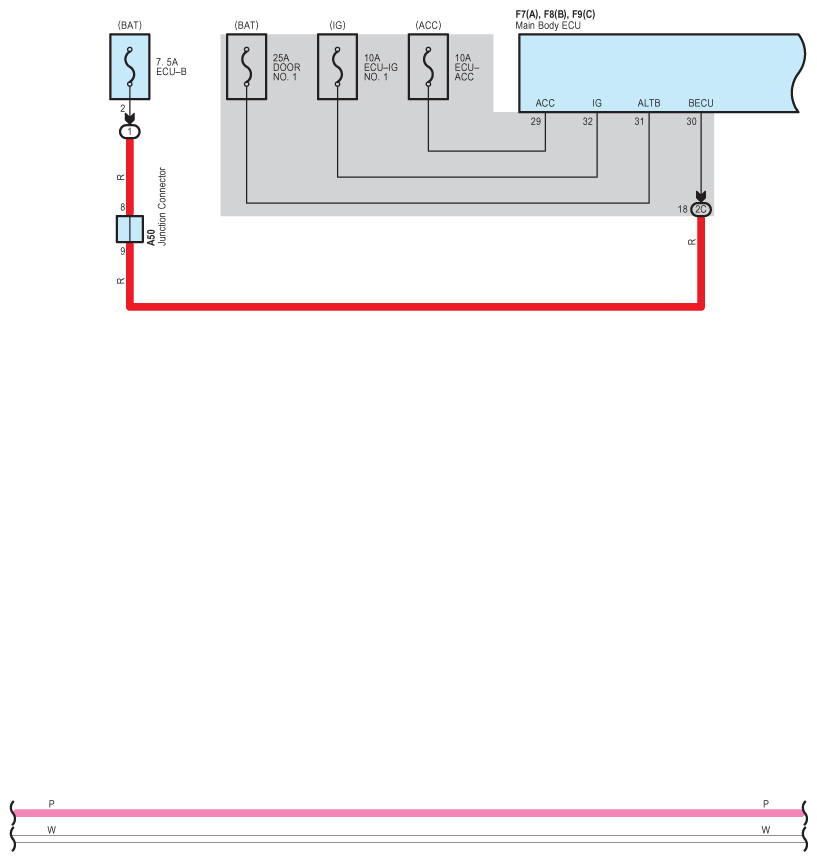

Fig 1: Combination Meter And Headup Display - Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

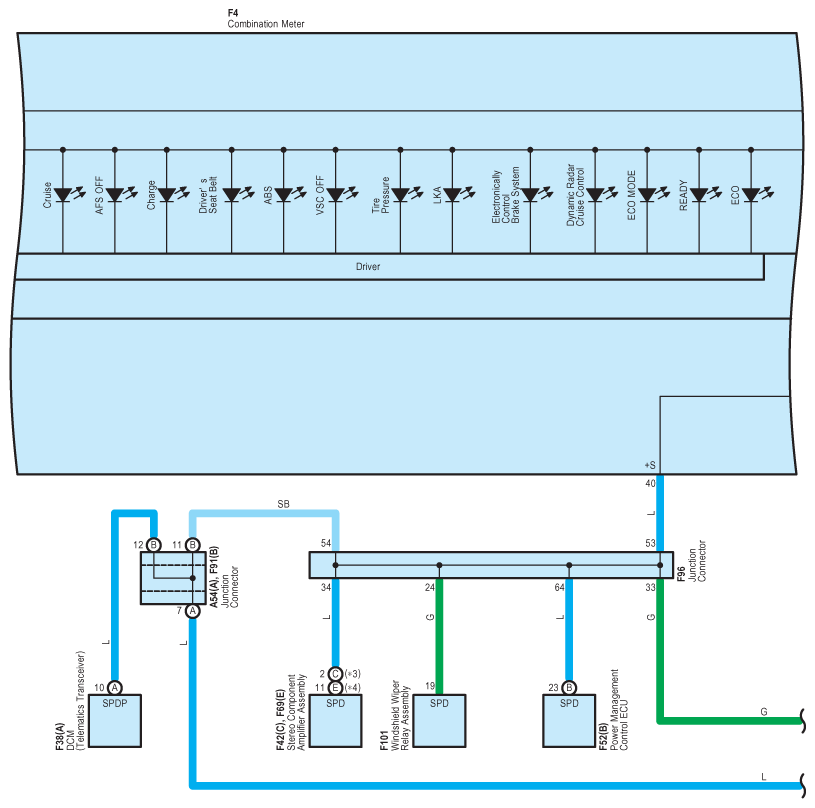

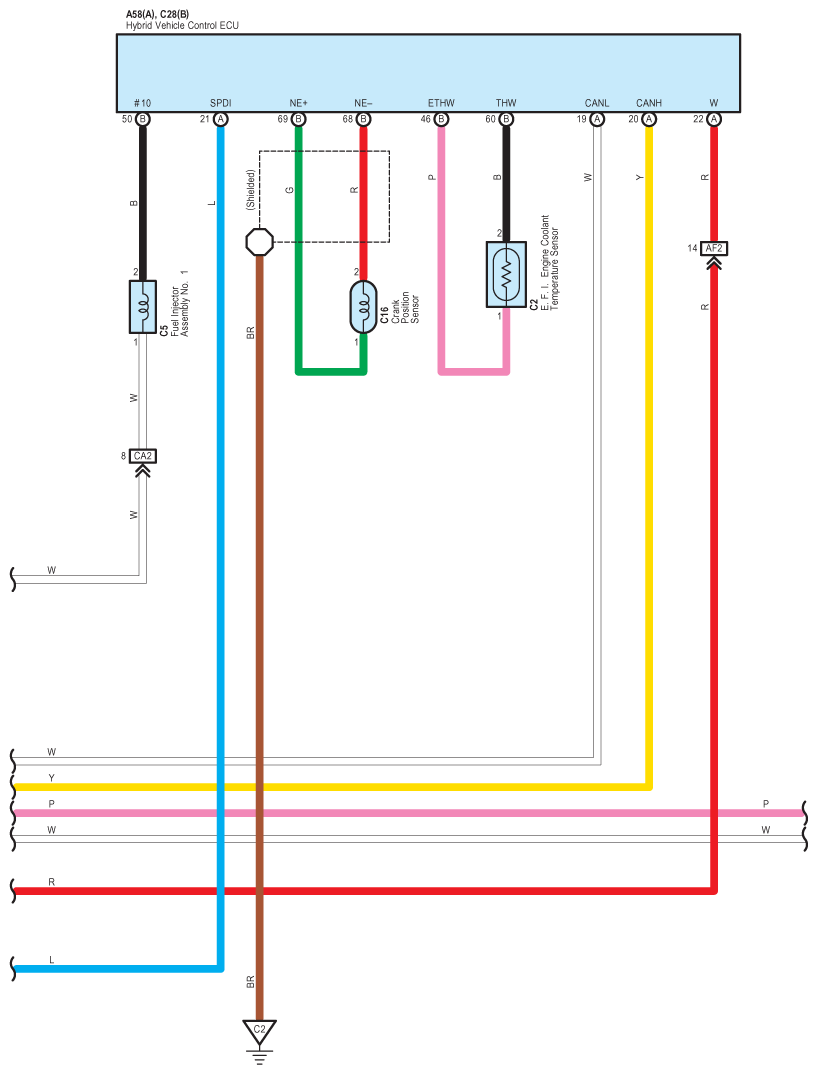

Fig 2: Combination Meter And Headup Display - Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

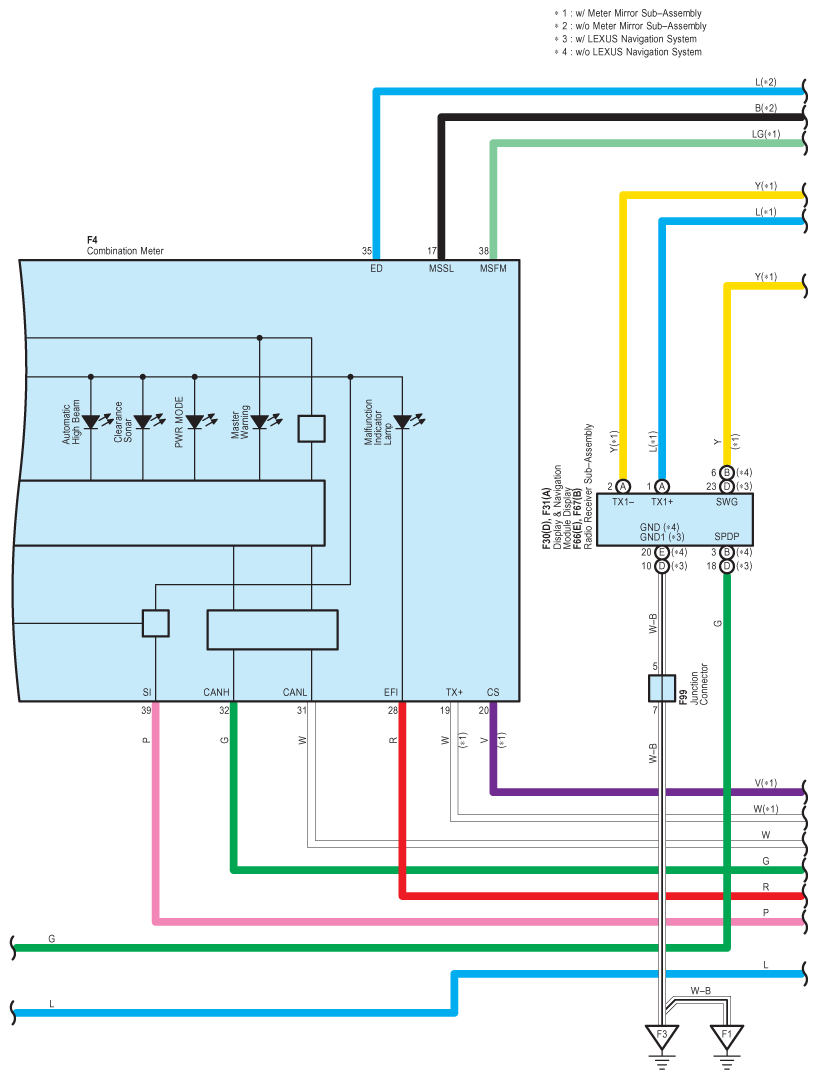

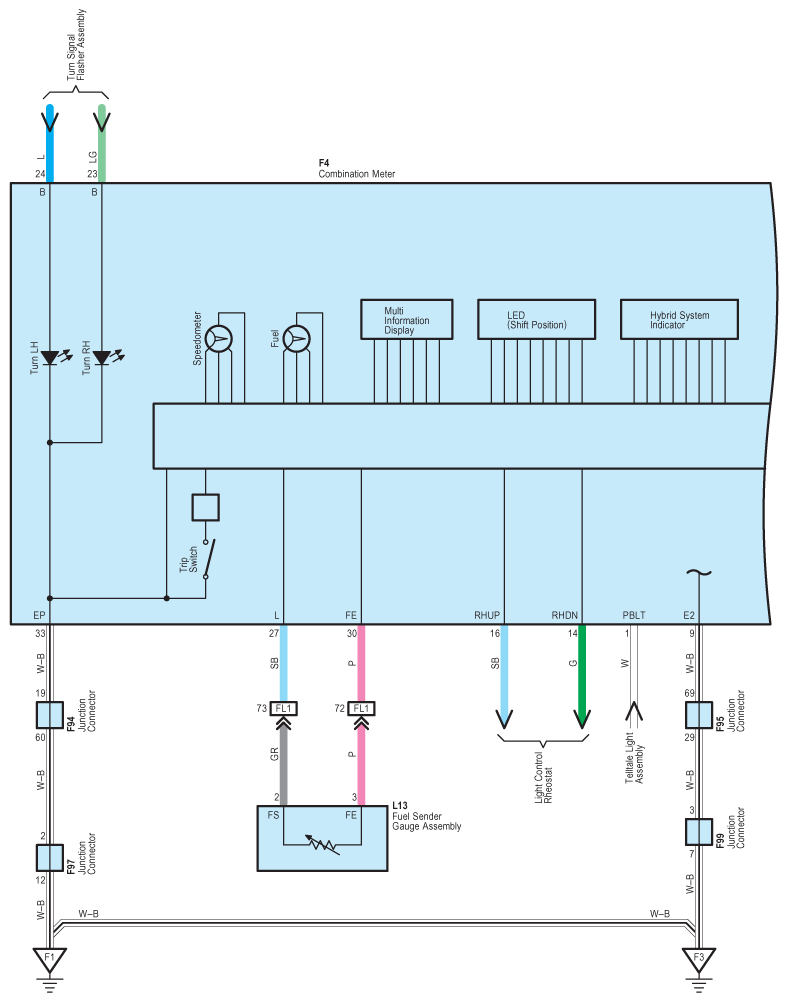

Fig 3: Combination Meter And Headup Display - Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

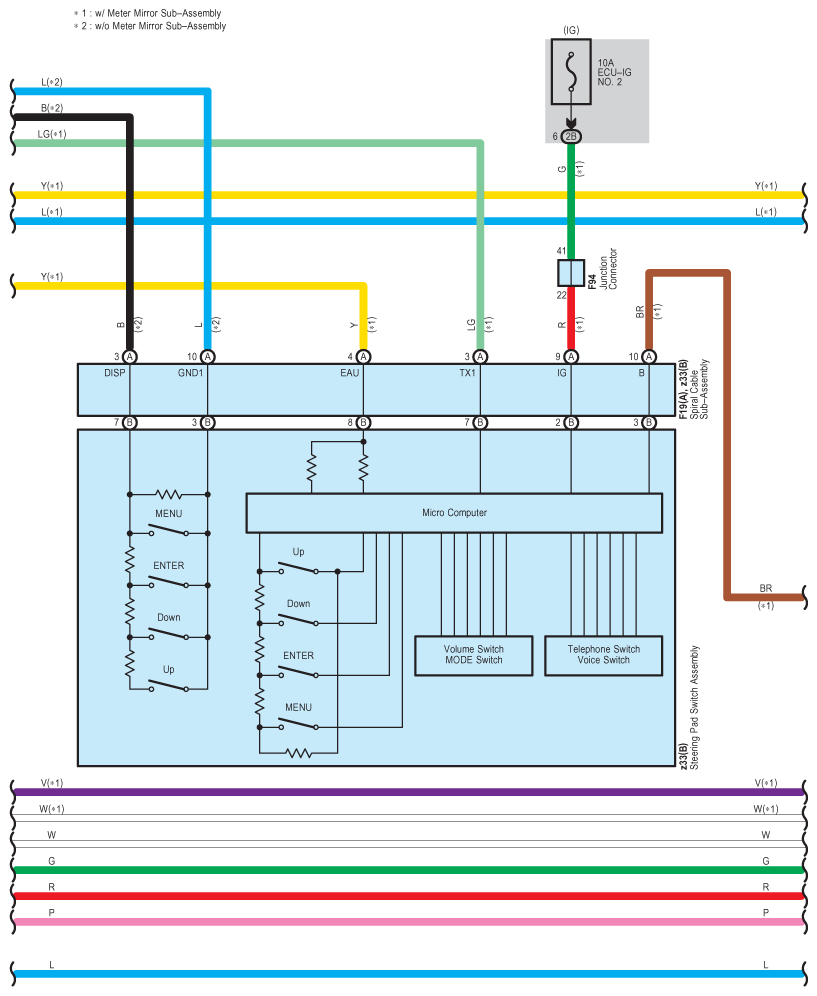

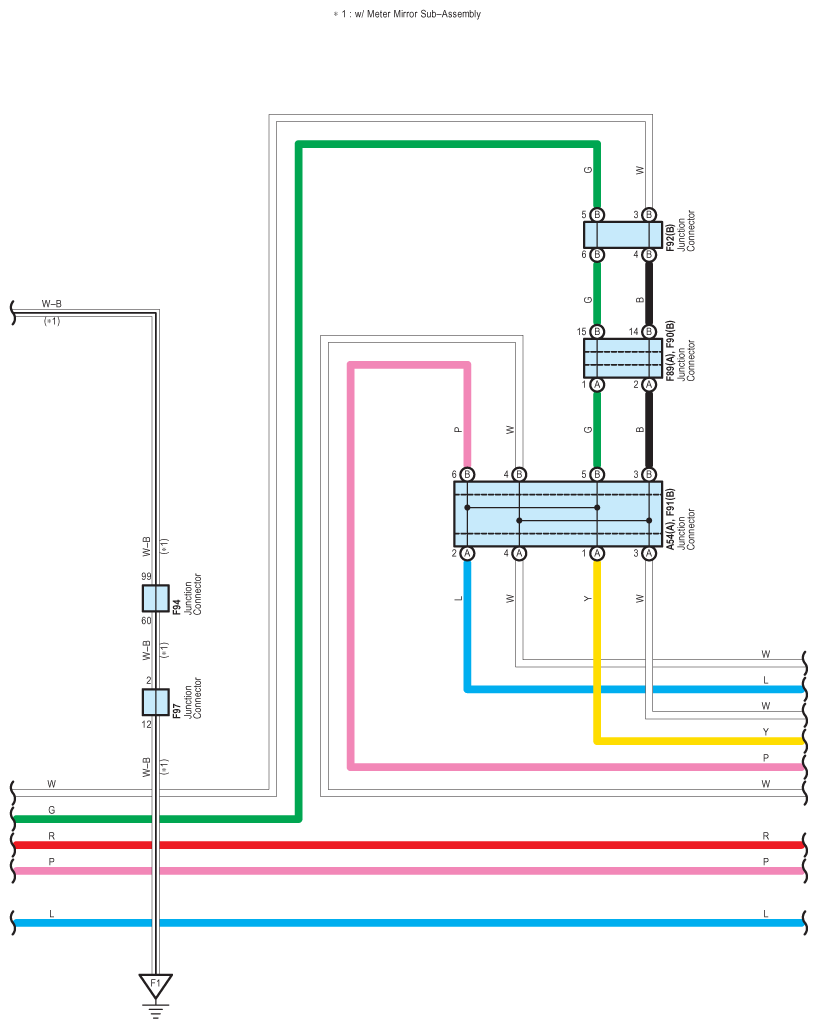

Fig 4: Combination Meter And Headup Display - Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

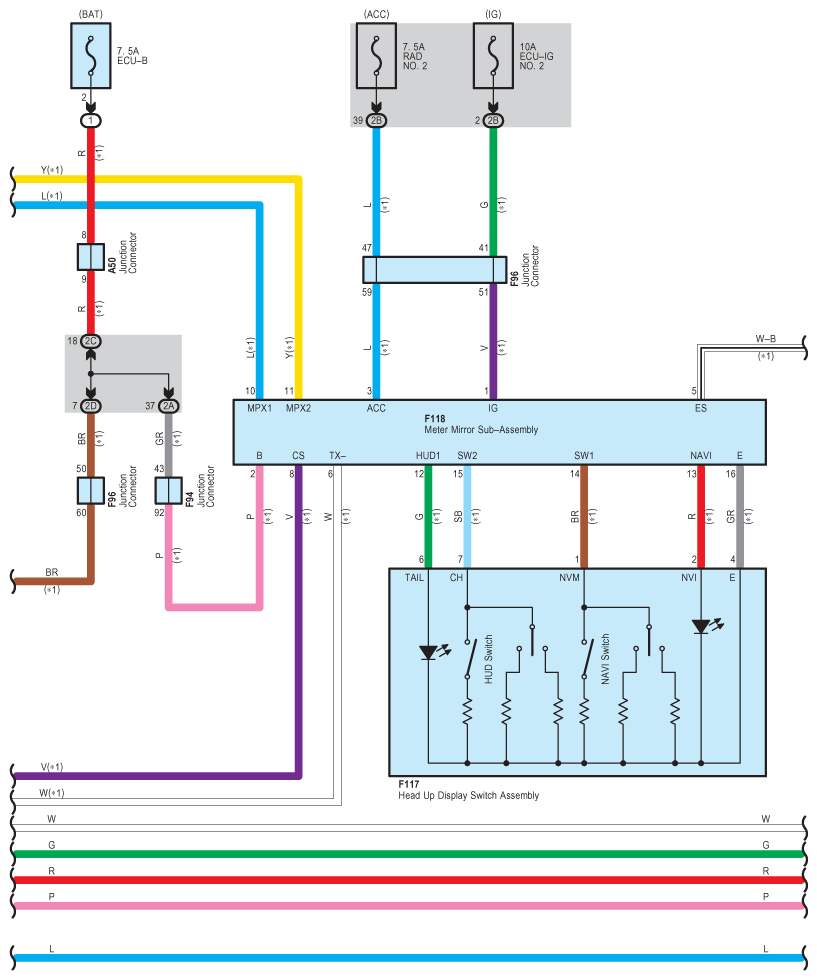

Fig 5: Combination Meter And Headup Display - Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

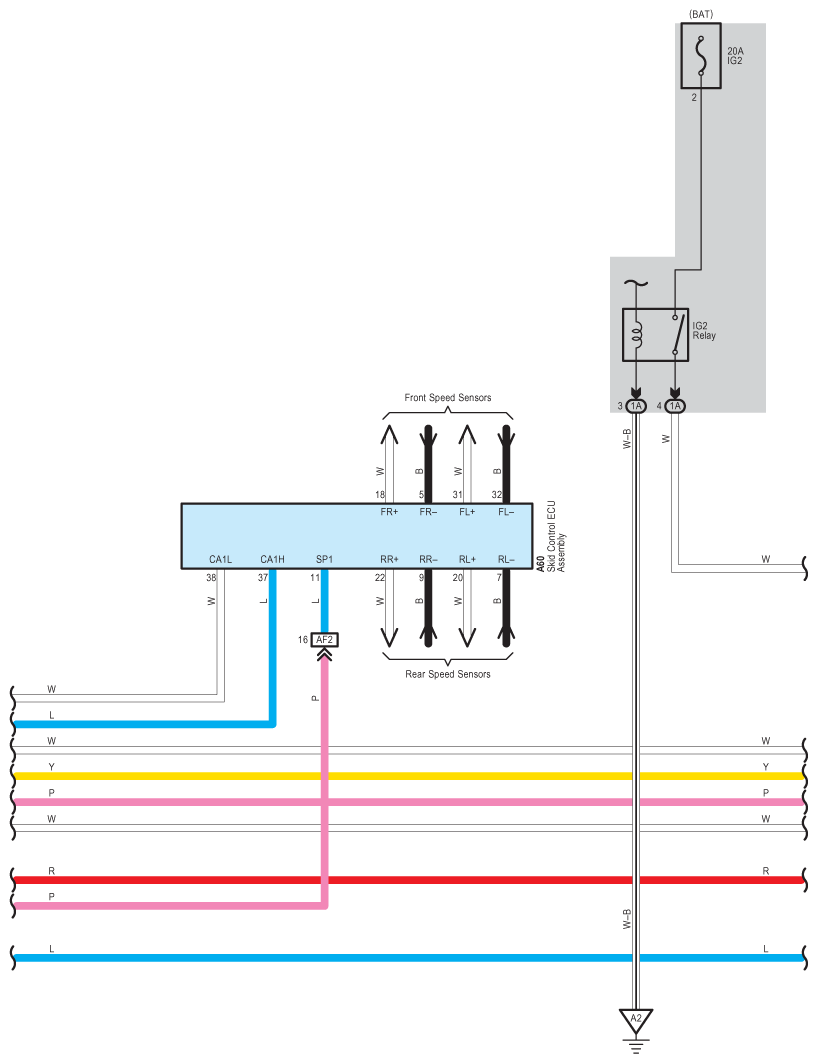

Fig 6: Combination Meter And Headup Display - Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

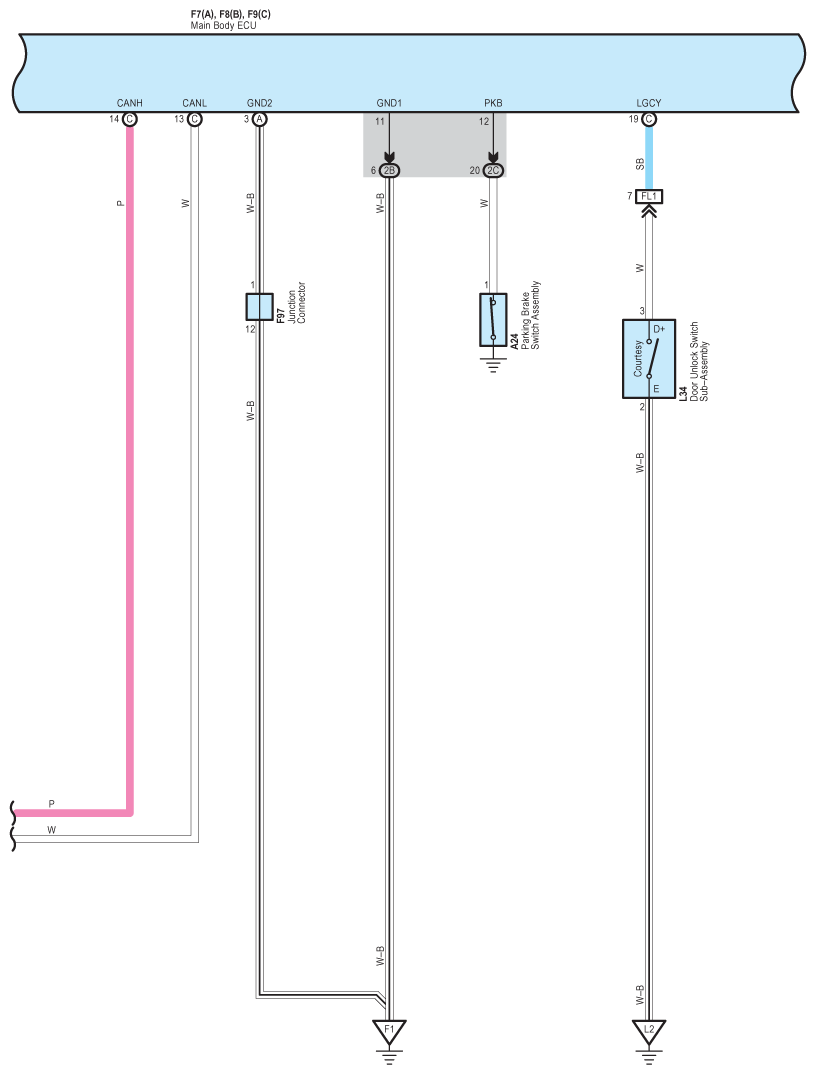

Fig 7: Combination Meter And Headup Display - Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

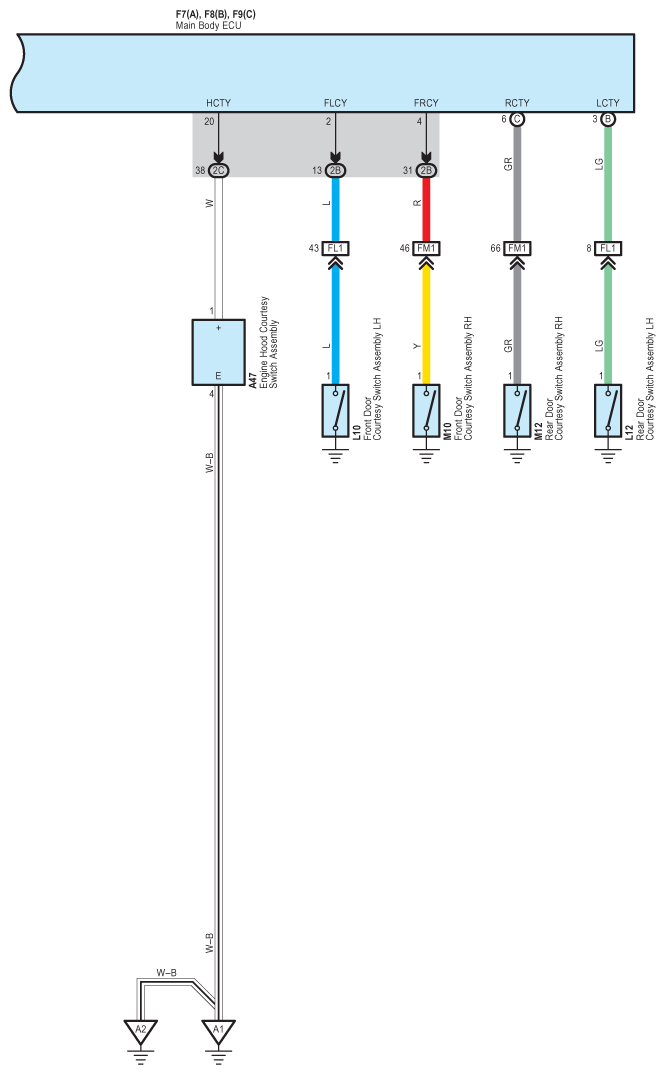

Fig 8: Combination Meter And Headup Display - Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Combination Meter And Headup Display - Wiring Diagram (9 Of 12)

Fig 10: Combination Meter And Headup Display - Wiring Diagram (10 Of 12)

Fig 11: Combination Meter And Headup Display - Wiring Diagram (11 Of 12)

Fig 12: Combination Meter And Headup Display - Wiring Diagram (12 Of 12)
