Cruise Control or Dynamic Radar Cruise Control: Notes

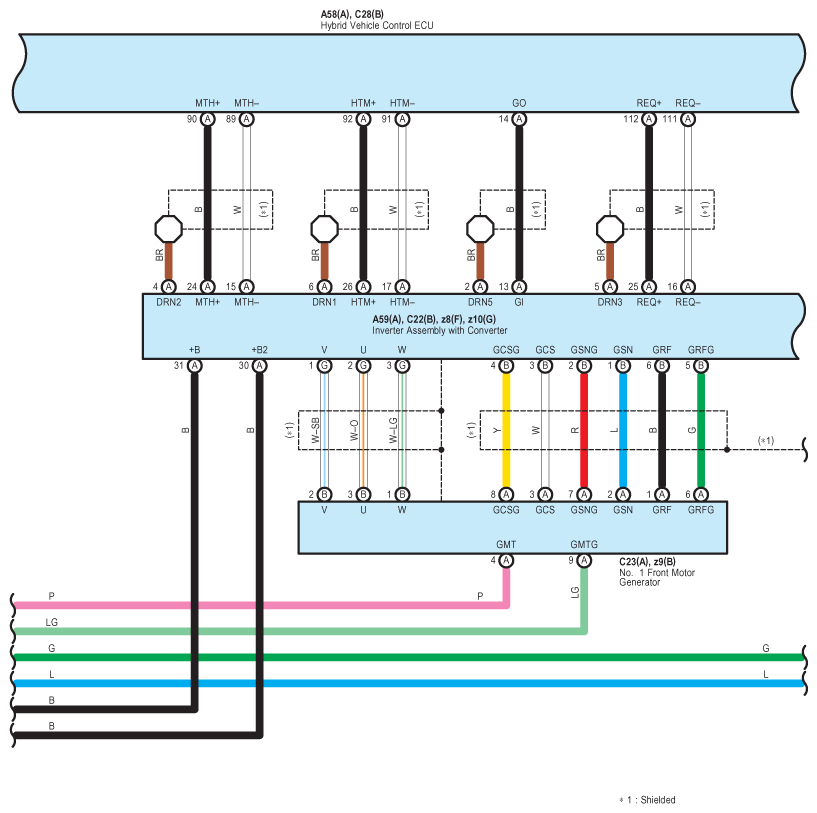

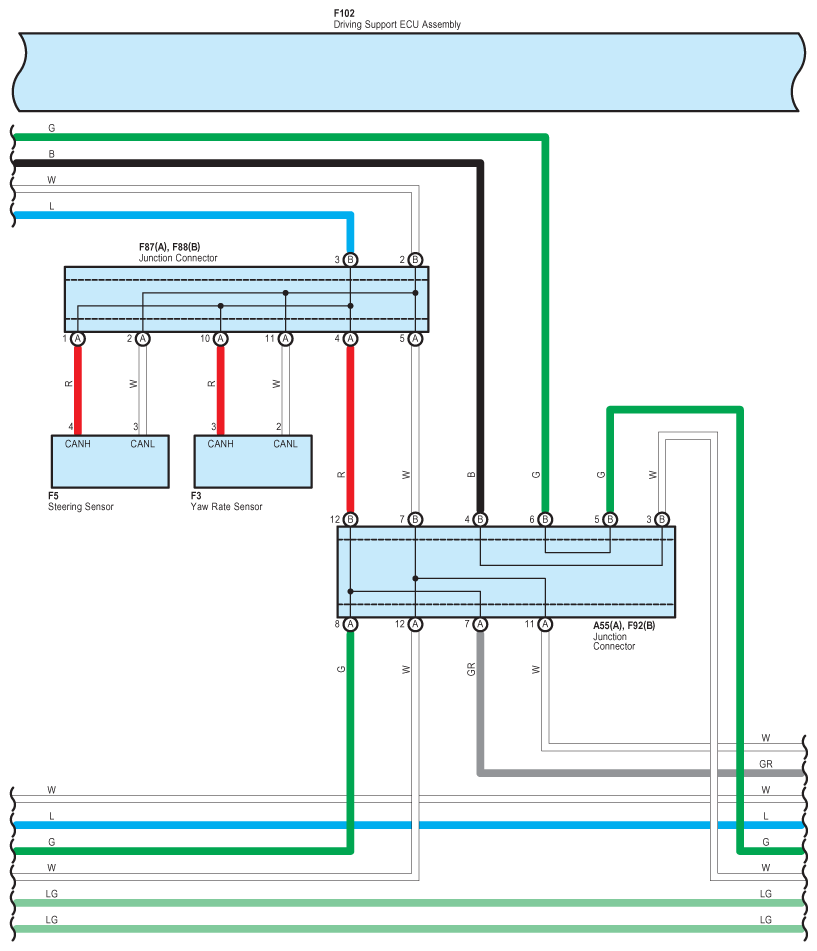

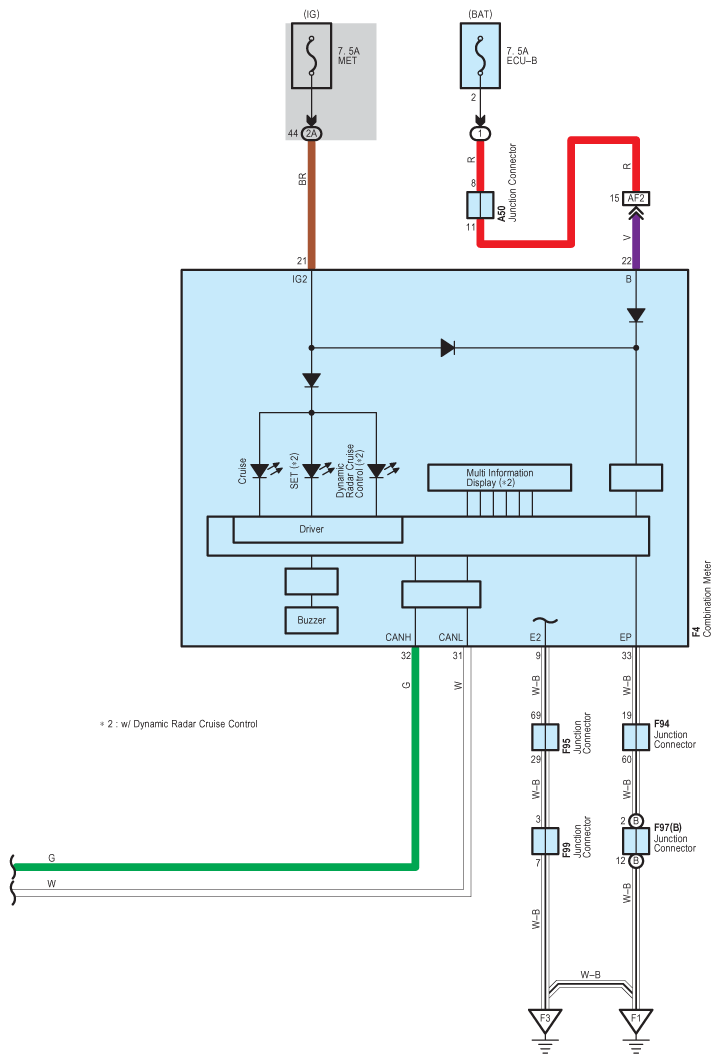

Fig 1: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (1 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

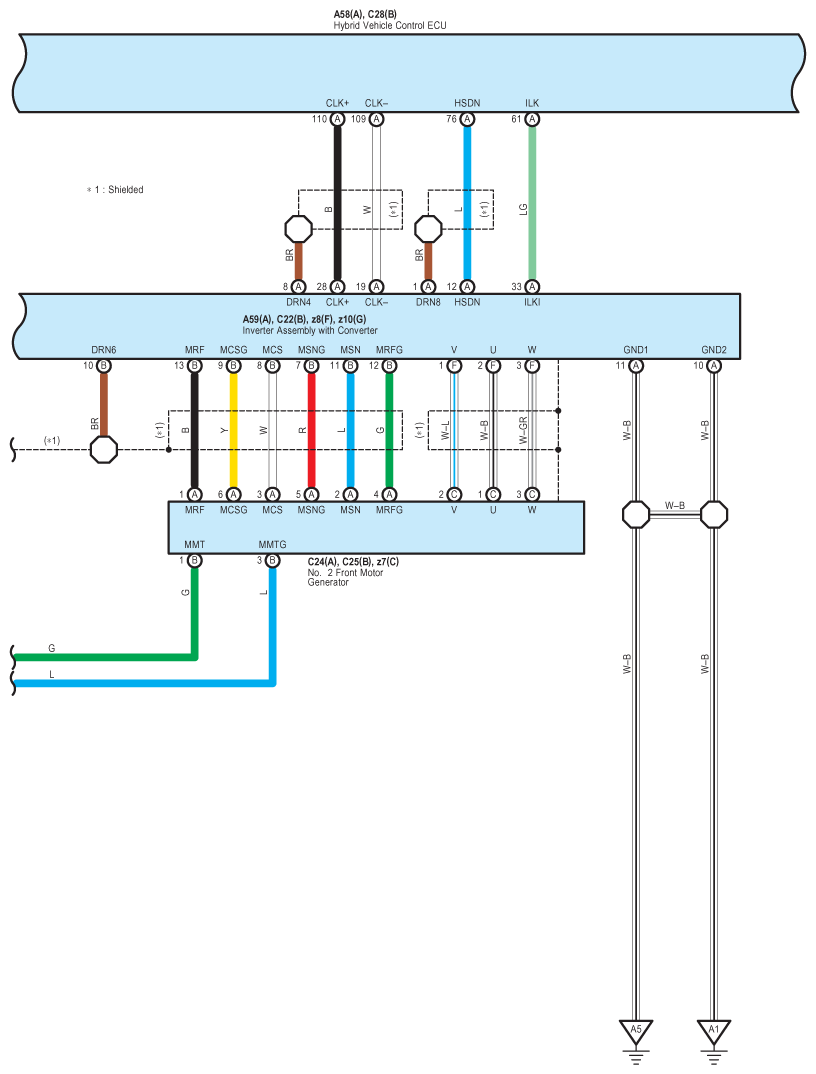

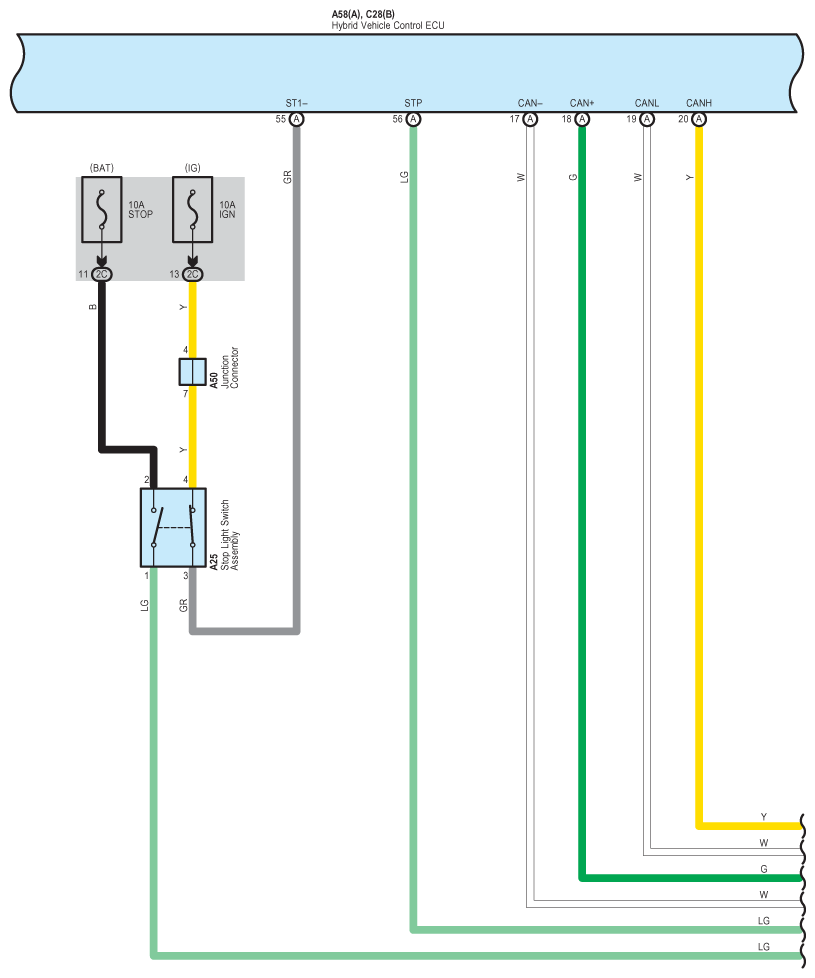

Fig 2: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (2 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

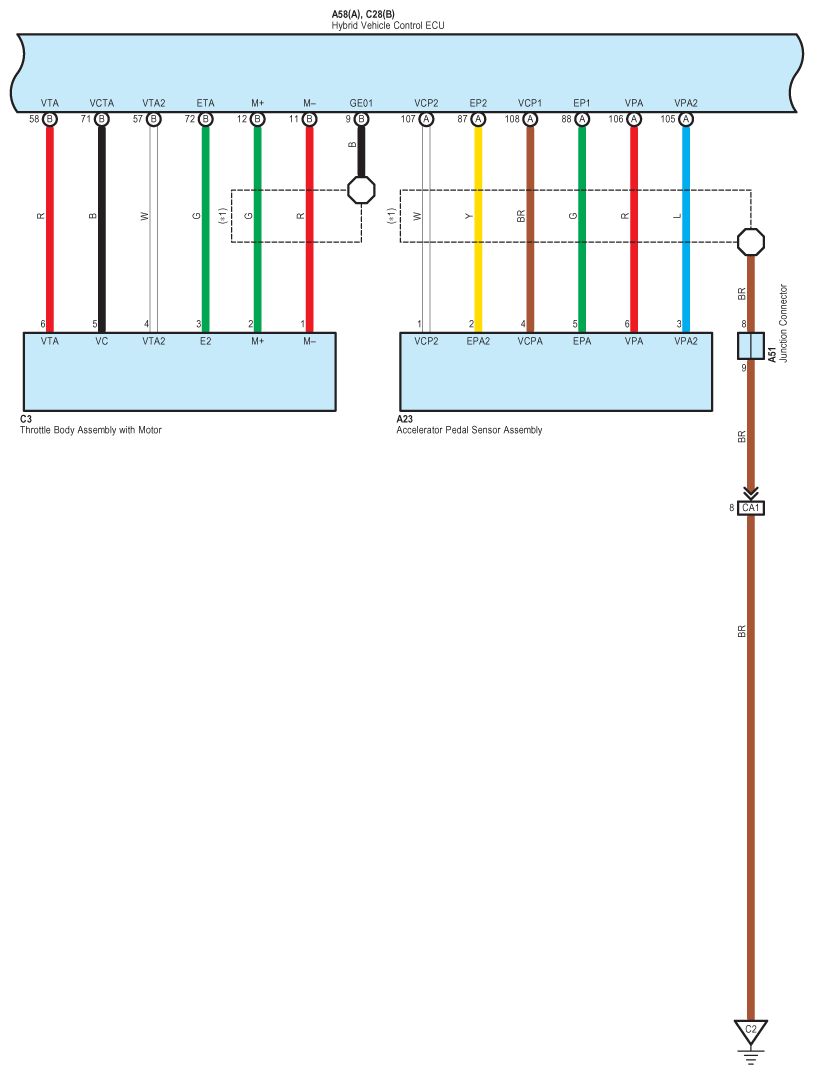

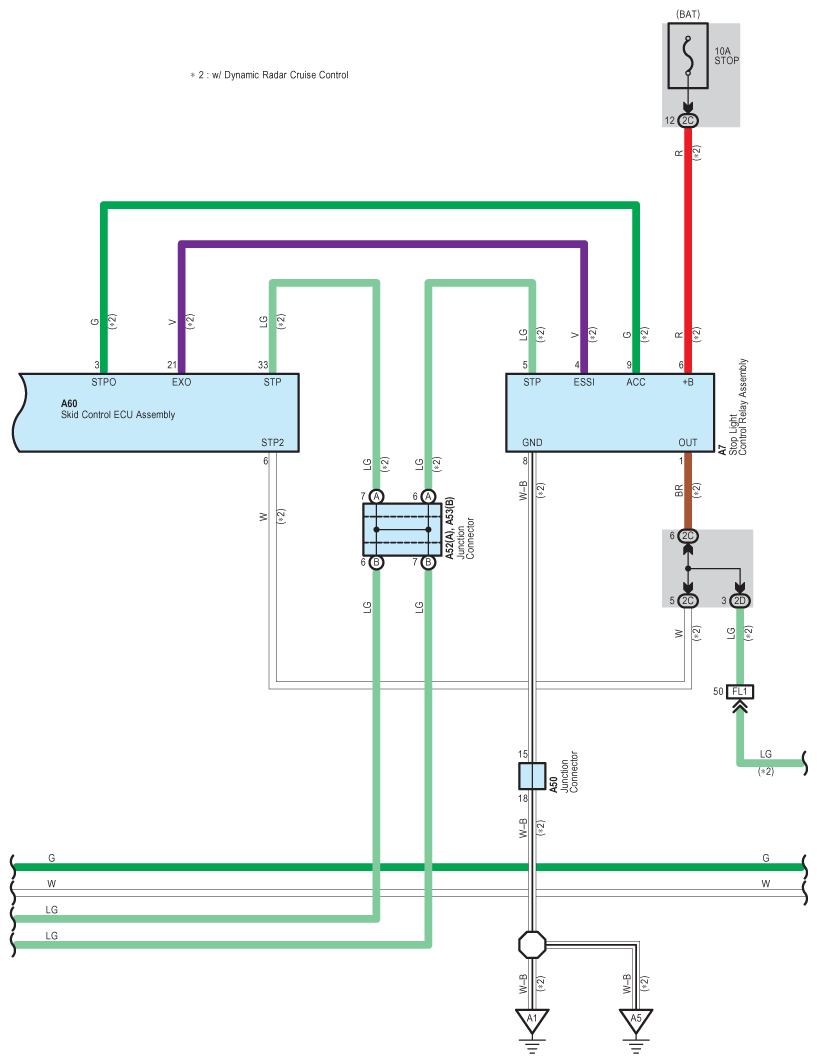

Fig 3: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (3 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

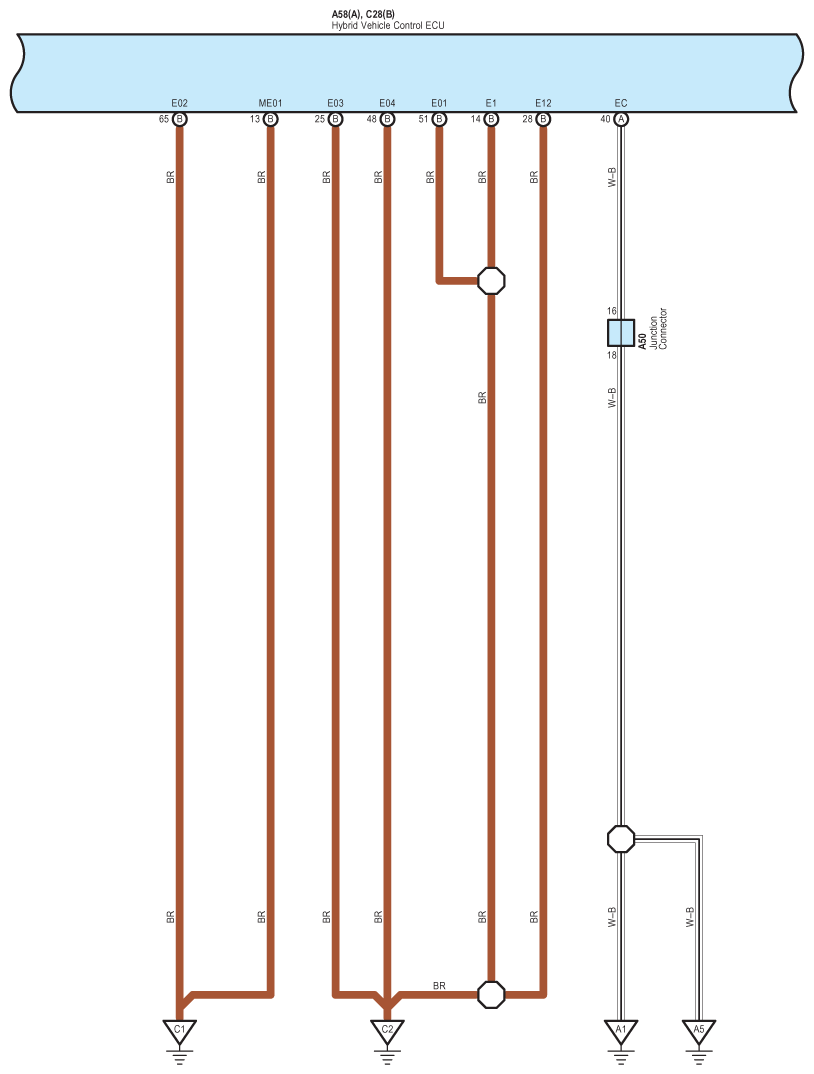

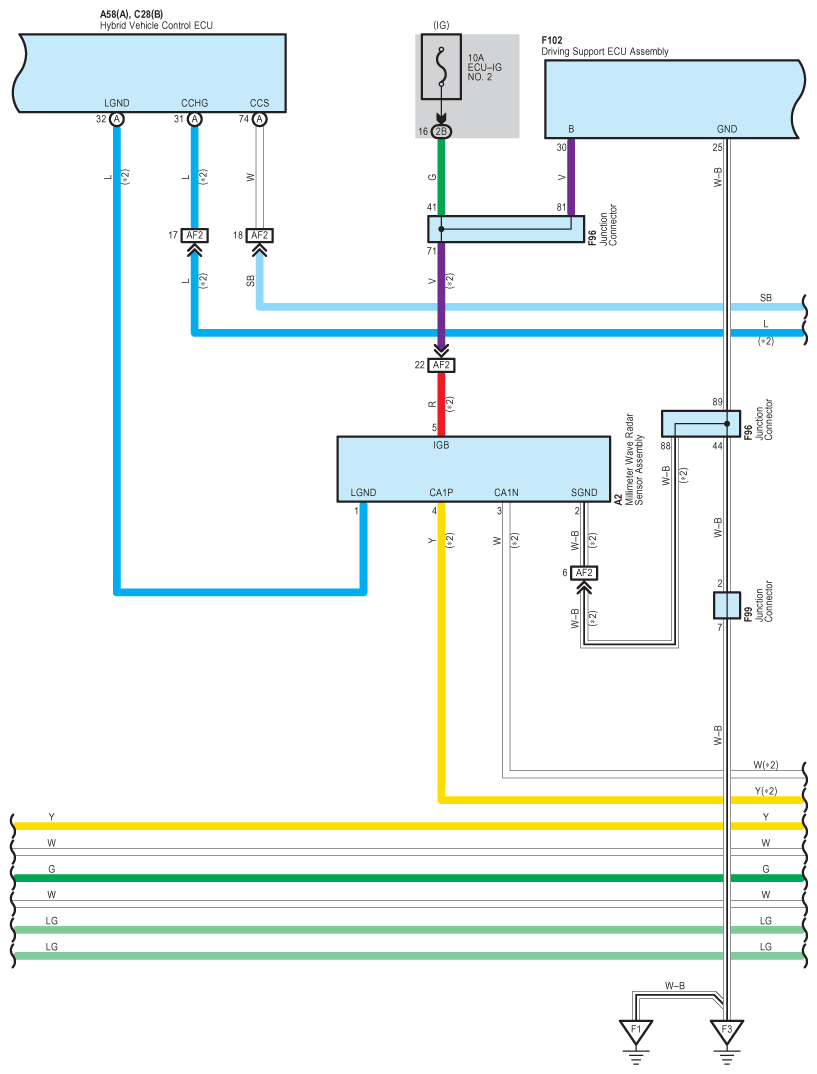

Fig 4: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (4 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

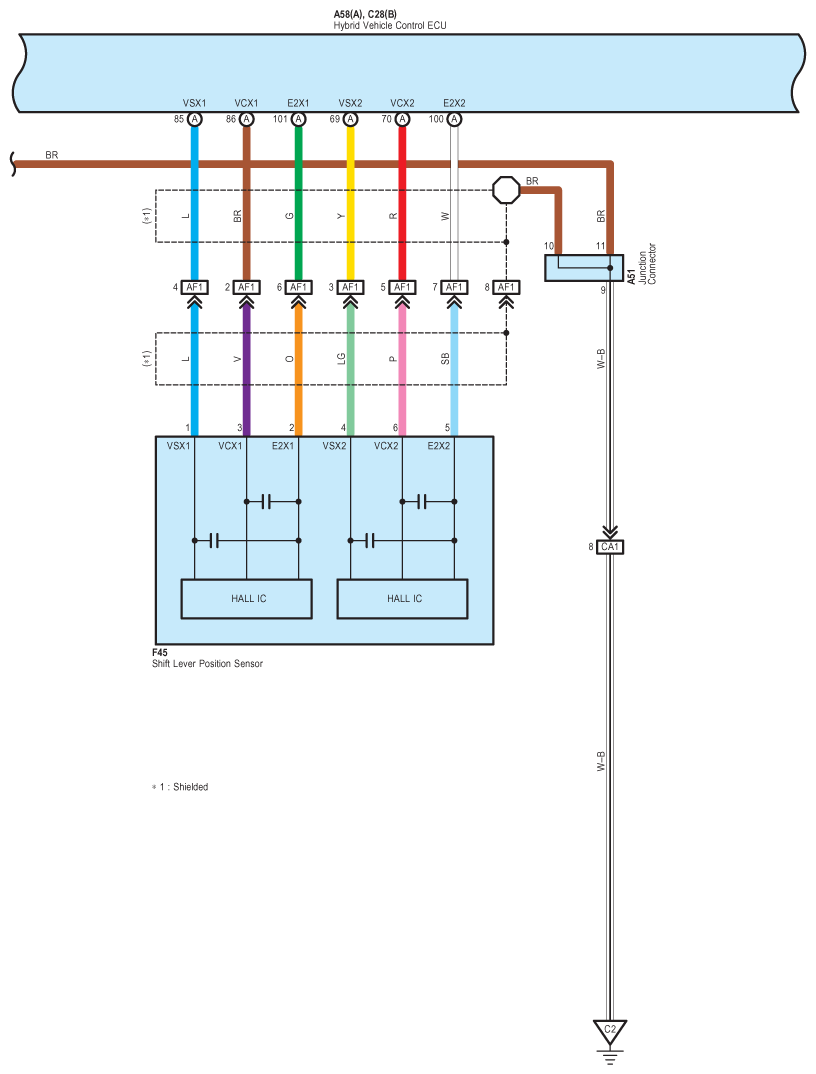

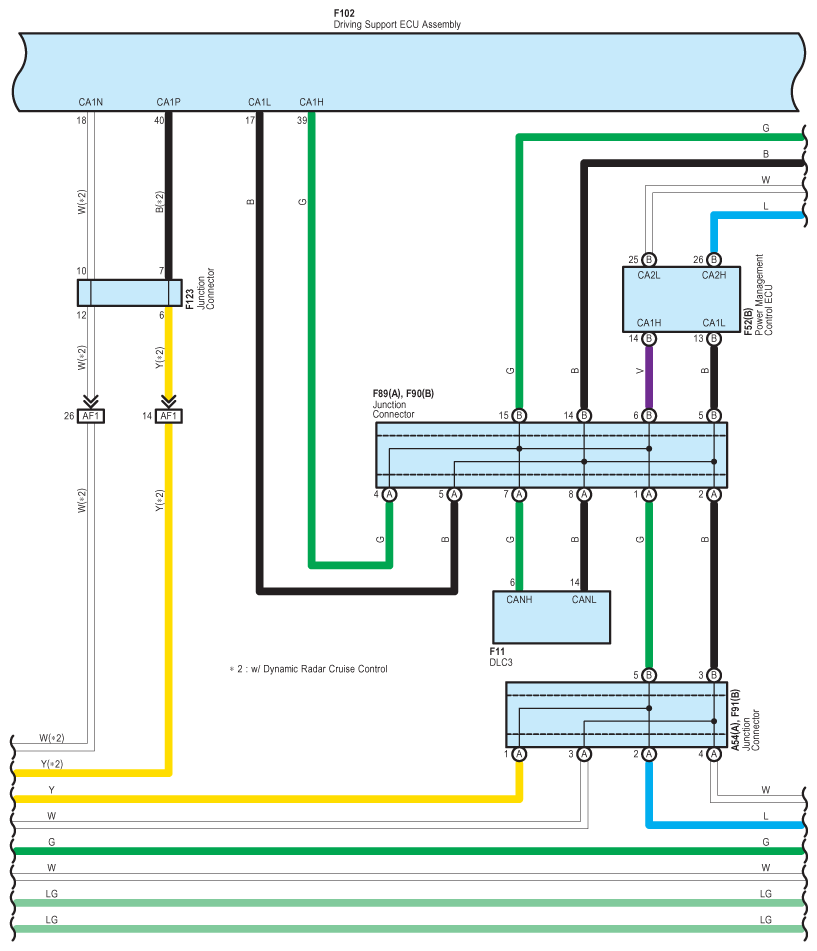

Fig 5: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (5 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

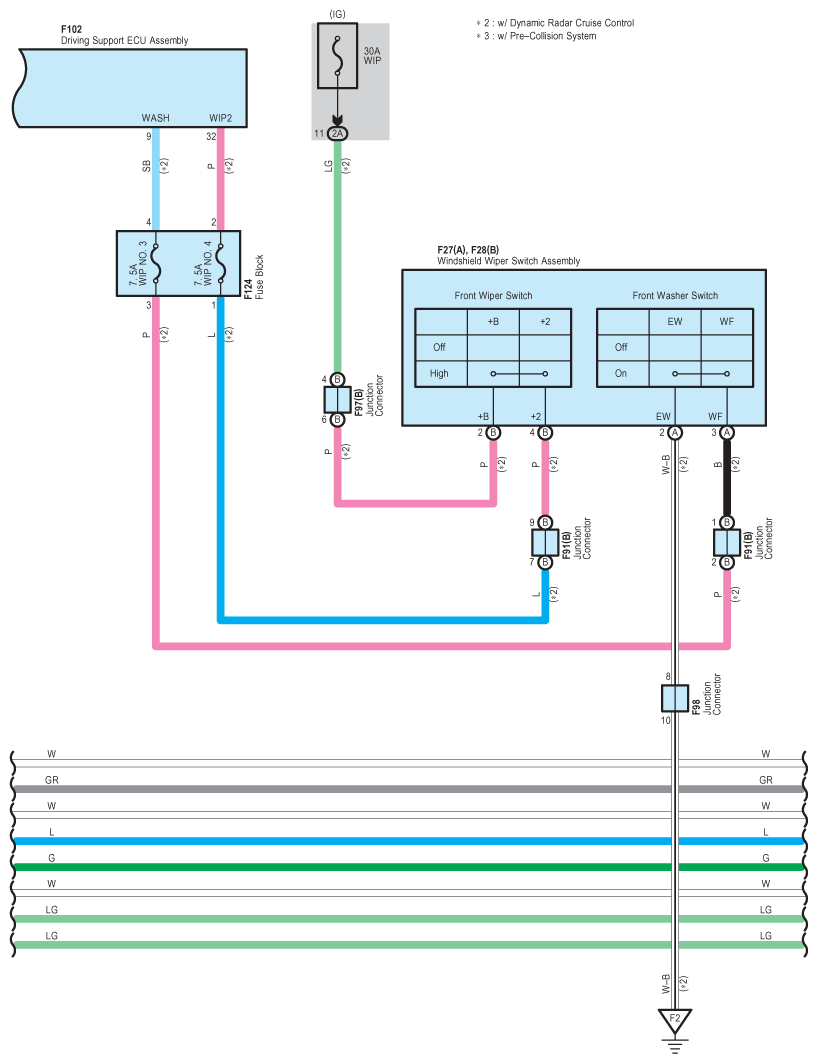

Fig 6: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (6 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

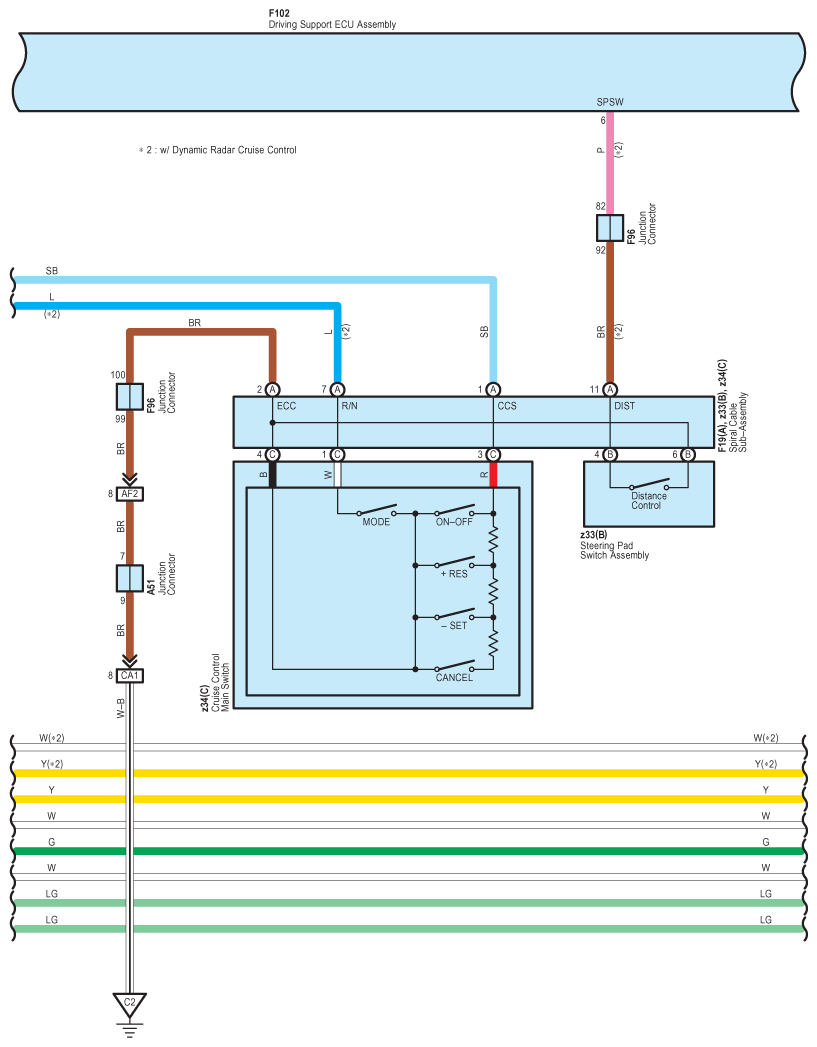

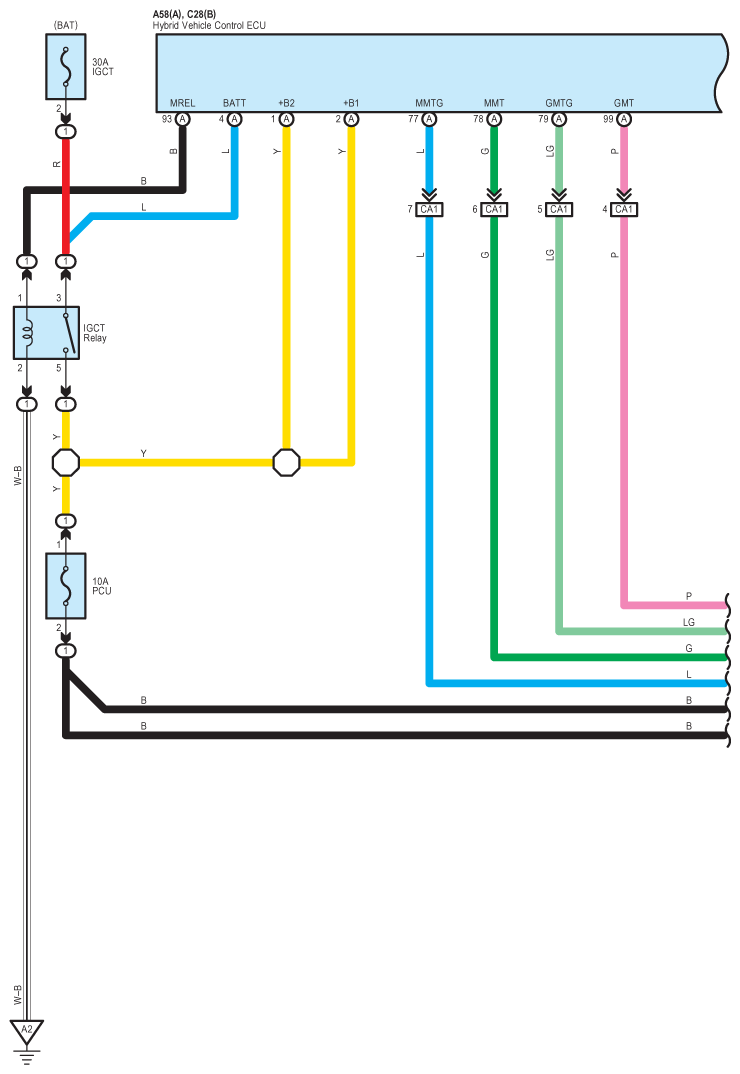

Fig 7: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (7 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

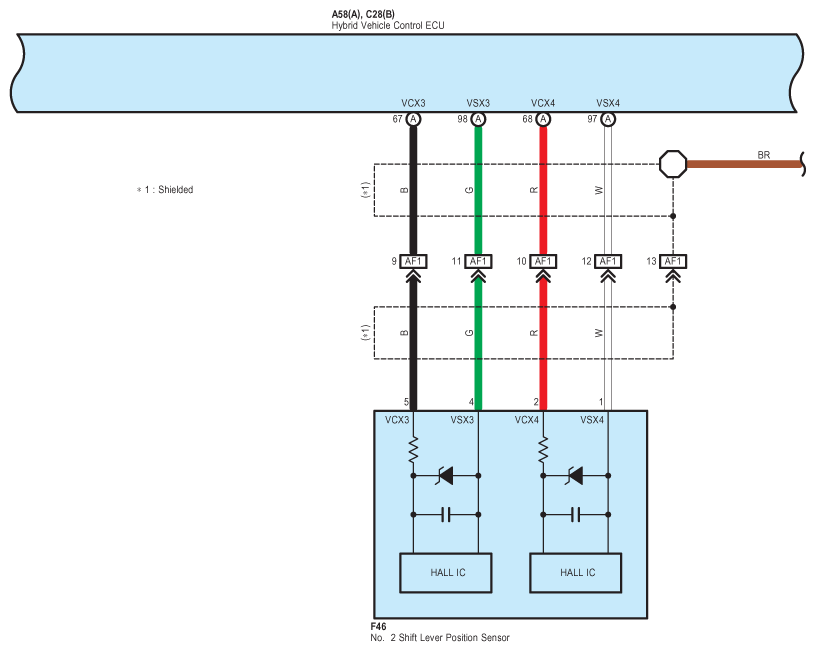

Fig 8: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (8 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

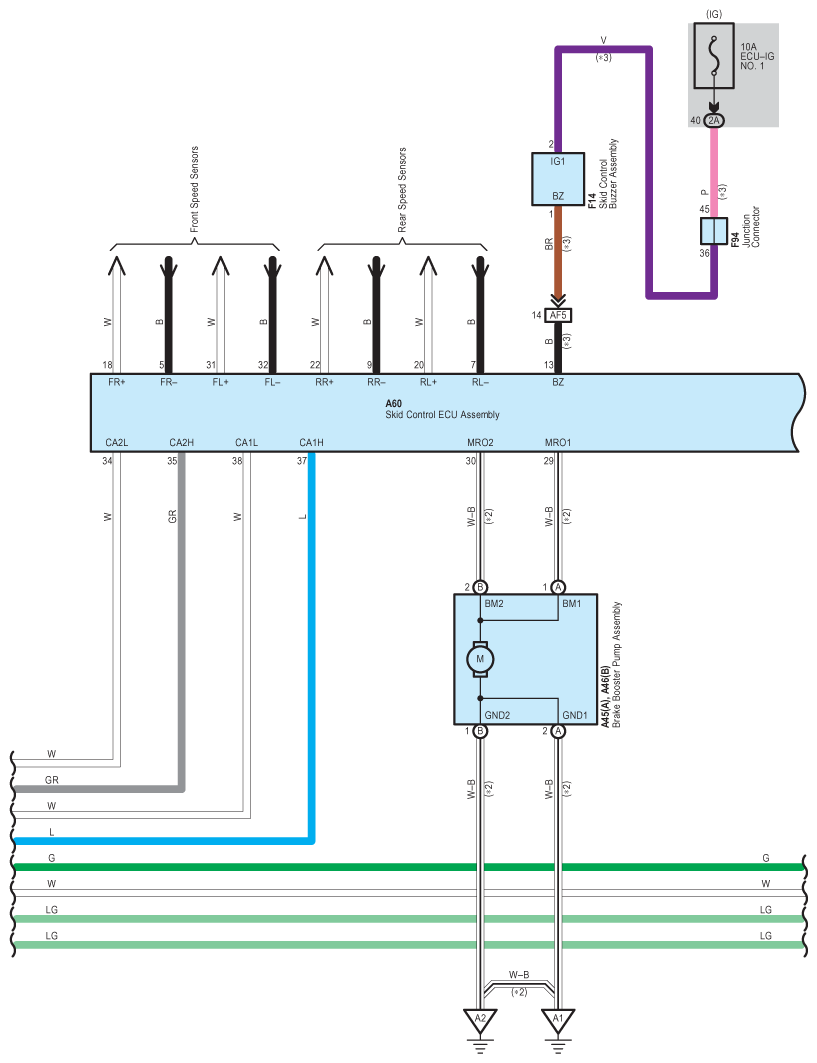

Fig 9: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (9 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (10 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

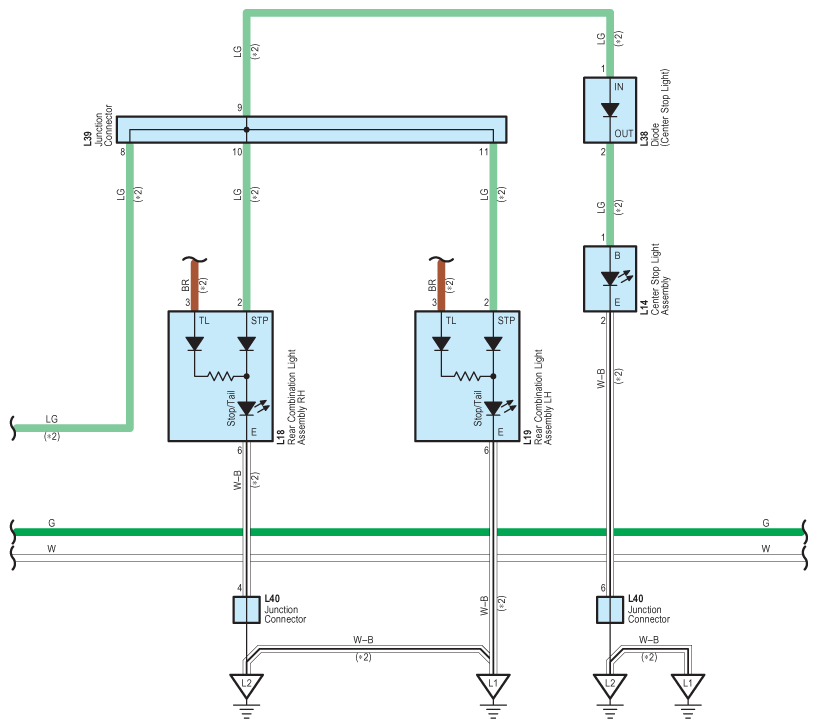

Fig 11: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (11 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (12 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (13 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (14 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (15 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (16 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Cruise Control Or Dynamic Radar Cruise Control - Wiring Diagram (17 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
