Oil Pressure Switch: Installation: Installation

INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

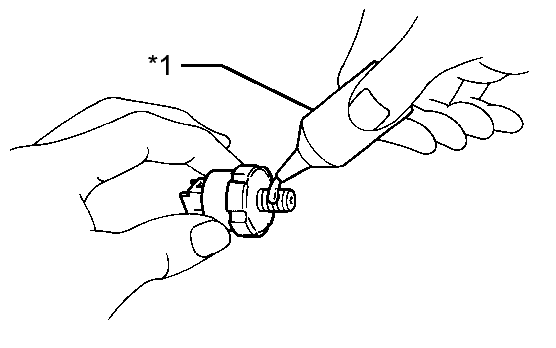

  Fig 1: Applying Adhesive To Threads Of Oil Pressure Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Adhesive

  Adhesive

  Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent
2. Using a 24 mm deep socket wrench, install the oil pressure switch.
  Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

  NOTE: Do not start the engine for at least 1 hour after installation.
3. Connect the oil pressure switch connector.
INSTALL AIR CLEANER CASE SUB-ASSEMBLY . Refer to INSTALLATION - Step 48
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 49
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 22
INSTALL COWL BODY MOUNTING REINFORCEMENT RH . Refer to INSTALLATION - Step 23
INSTALL NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL . Refer to INSTALLATION - Step 24
INSTALL WATER GUARD PLATE RH . Refer to INSTALLATION - Step 25
INSTALL FRONT WIPER MOTOR AND LINK
HINT:

Refer to INSTALLATION .
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 94
CHECK ENGINE OIL LEVEL . Refer to ON-VEHICLE INSPECTION - Step 1
INSPECT FOR OIL LEAK
