Engine Performance
>>
Tune-Up
>>
Ignition System (Inspection)
>>
Ignition System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

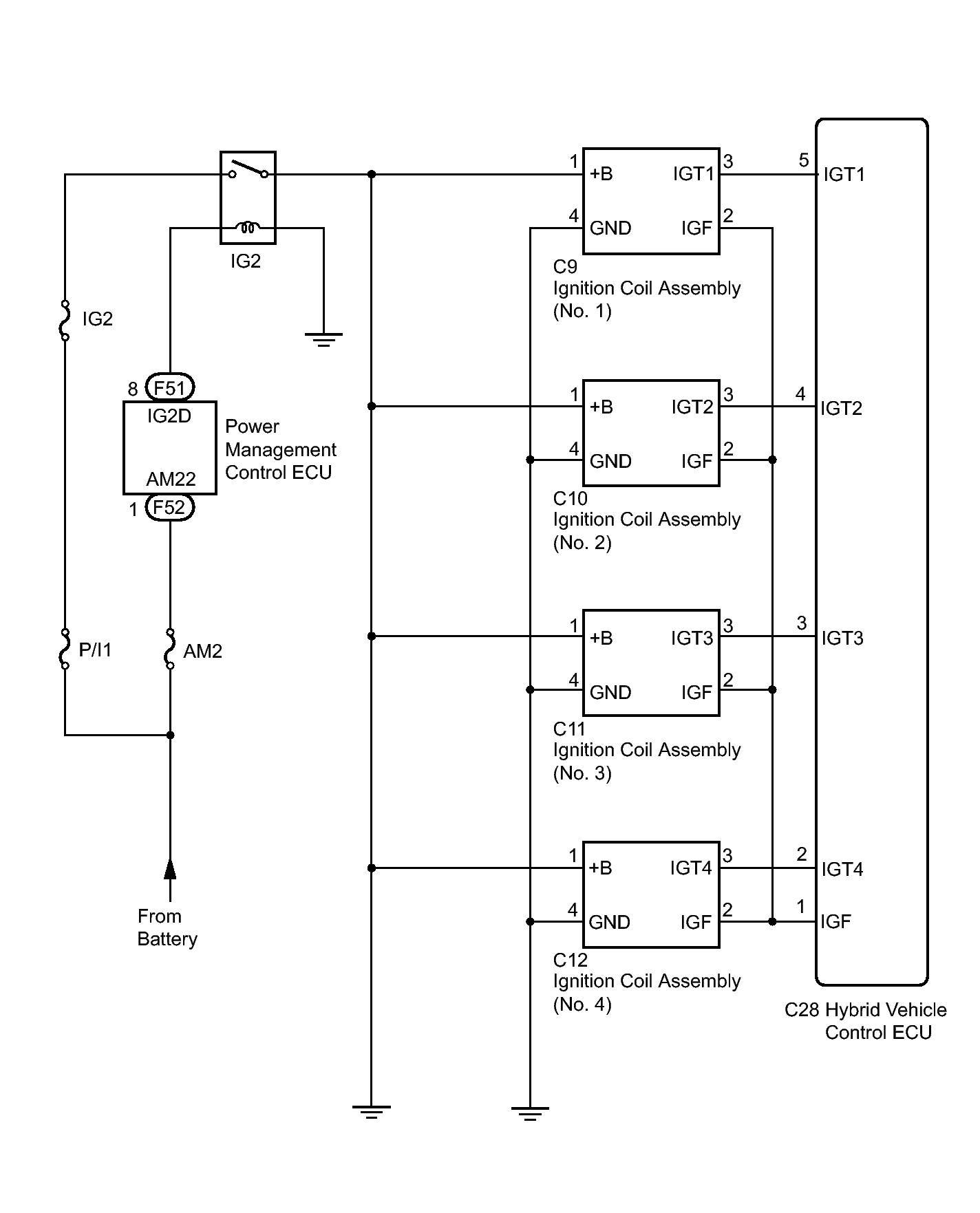

Fig 1: Identifying Ignition System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
