Oxygen Sensor Relay: Locations

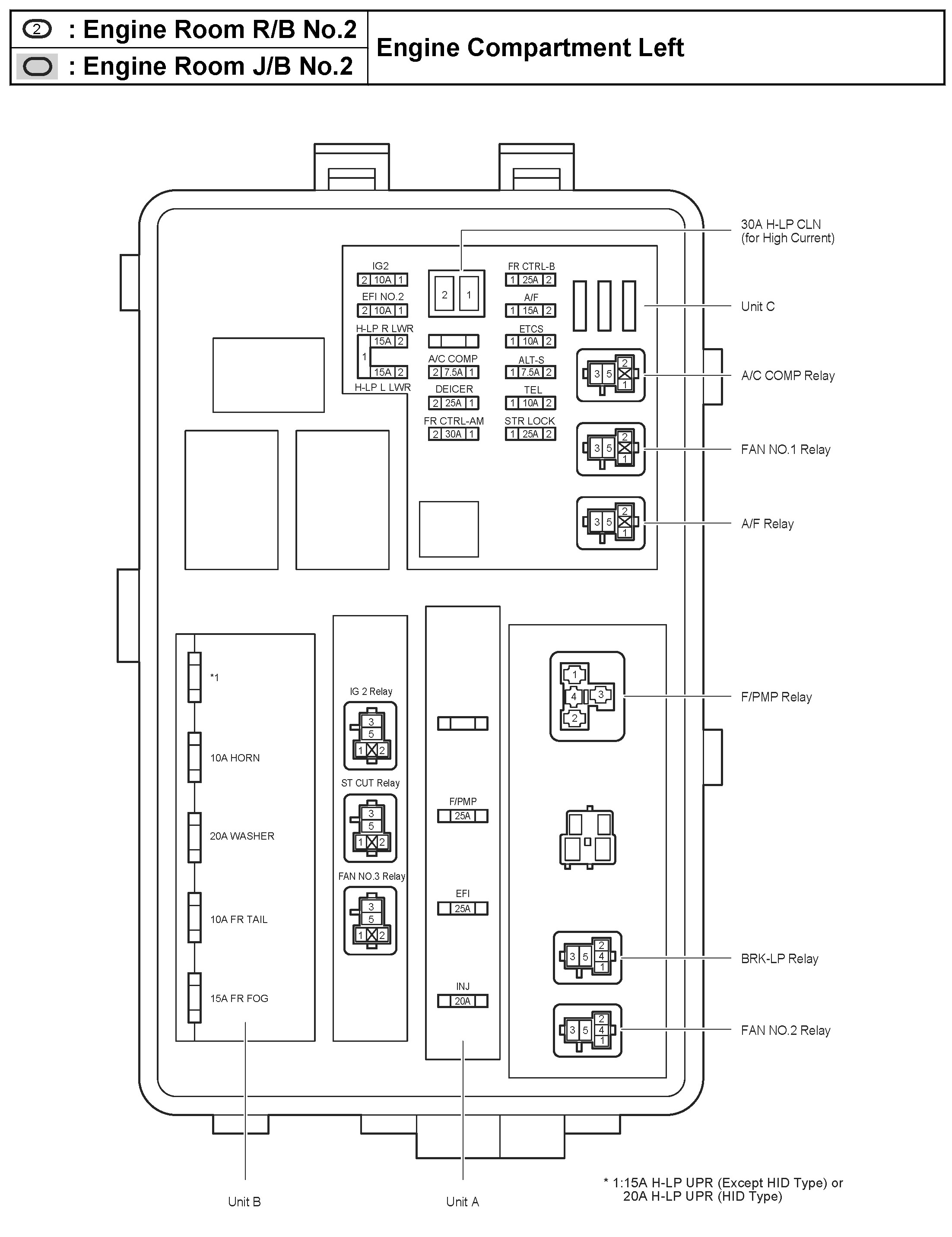

26 - Engine Room R/B No.2, Engine Room J/B No.2 - Engine Compartment Left:
