Installation

4GR-FSE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

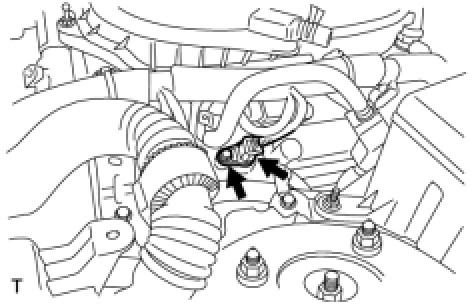

1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)

(a) Install the sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the sensor connector.

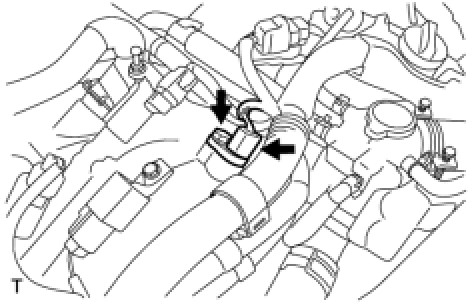

2. INSTALL VVT SENSOR (for Intake Side of Bank 2)

(a) Install the sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the sensor connector.

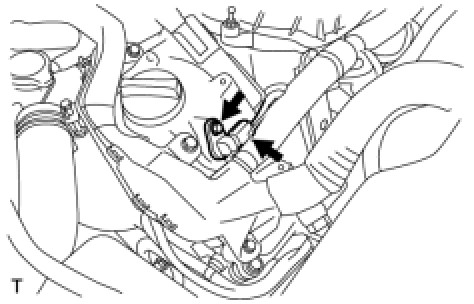

3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1)

(a) Install the sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the sensor connector.

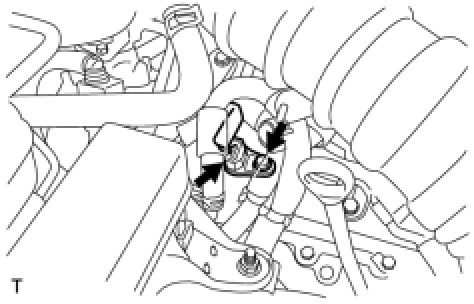

4. INSTALL VVT SENSOR (for Intake Side of Bank 1)

(a) Install the sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the sensor connector.

5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
