Removal

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: REMOVAL

1. REMOVE STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic Steering Column)

HINT
Refer to the instructions for removal of the steering column assembly (for Power Tilt and Power Telescopic) Removal.

2. REMOVE STEERING LOCK ACTUATOR ASSEMBLY

(a) Using a center punch, mark the center of the 2 tapered-head bolts.

(b) Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolts.

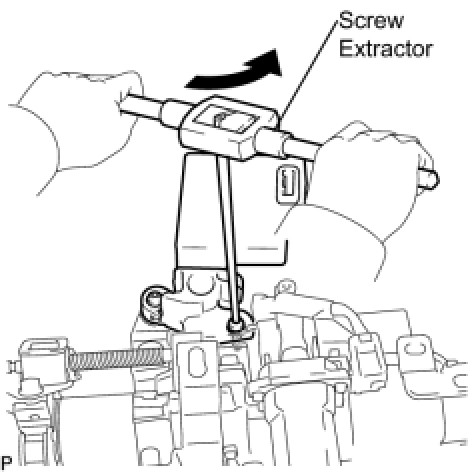

(c) Using a screw extractor, remove the 2 bolts and steering lock actuator assembly from the steering column assembly.





3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

(a) Disconnect the connector from the multiplex tilt and telescopic ECU.

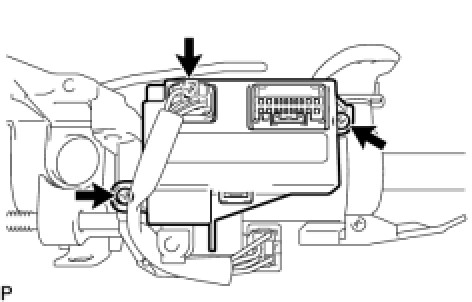

(b) Using a screwdriver, remove the 2 screws and multiplex tilt and telescopic ECU.
