Parts Location: Illustration

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (1 Of 3)
GTY347749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Smart Access System With Push-Button Start Components Location (2 Of 3)
GTY119492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

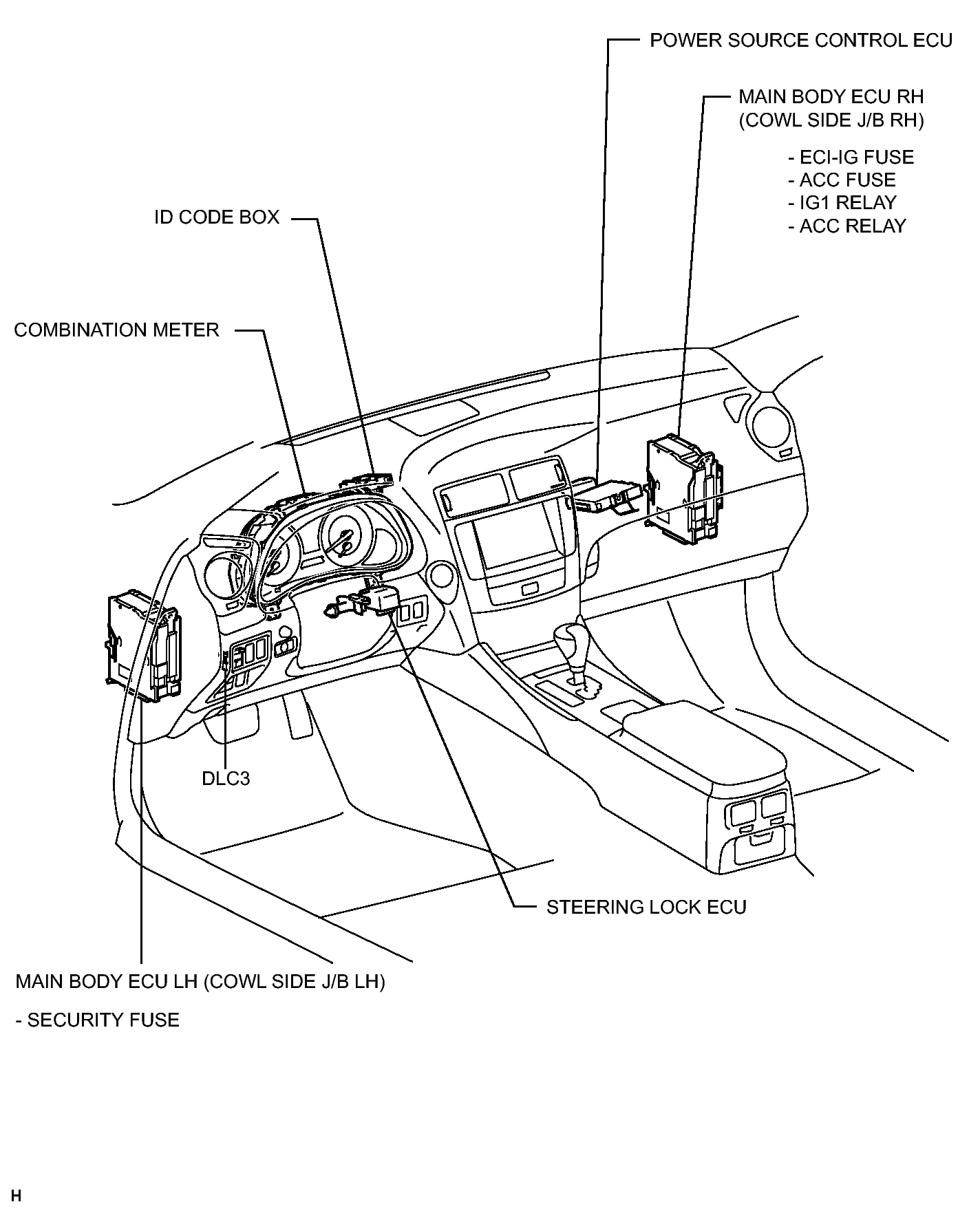

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (3 Of 3)
GTY119493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
