Emission Control System (Service Information): Canister: Installation: Installation

INSTALL CHARCOAL CANISTER ASSEMBLY
1. Install the charcoal canister assembly and 2 spacers and 4 nuts.

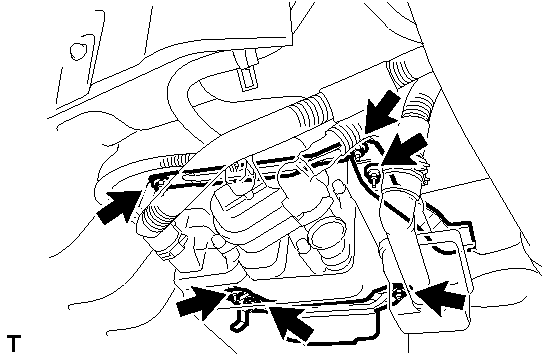

  Fig 1: Identifying Charcoal Canister Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the 2 quick connectors, hose and connector.

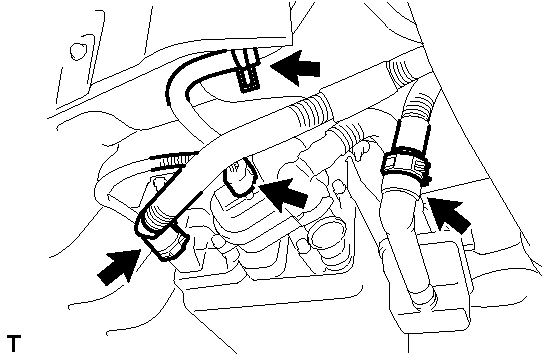

  Fig 2: Location of Quick Connectors, Hose And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the wire harness with the 2 clamps.

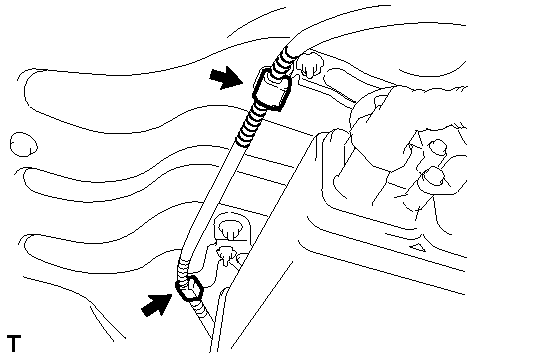

  Fig 3: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR UNDER COVER

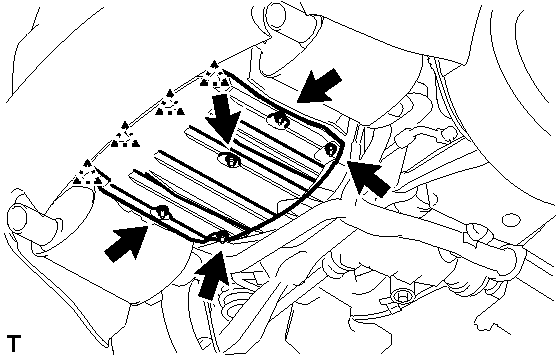

Fig 4: Locating Floor Under Cover Nuts And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the floor under cover with the 4 clips and 5 nuts.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
