Engine Control System (Diagnostic Codes (P0630-U0101) & Circuit Tests)
>>
SFI System
>>
Circuit Tests
>>
Cold Start Injector Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cold Start Injector Circuit: Wiring Diagram

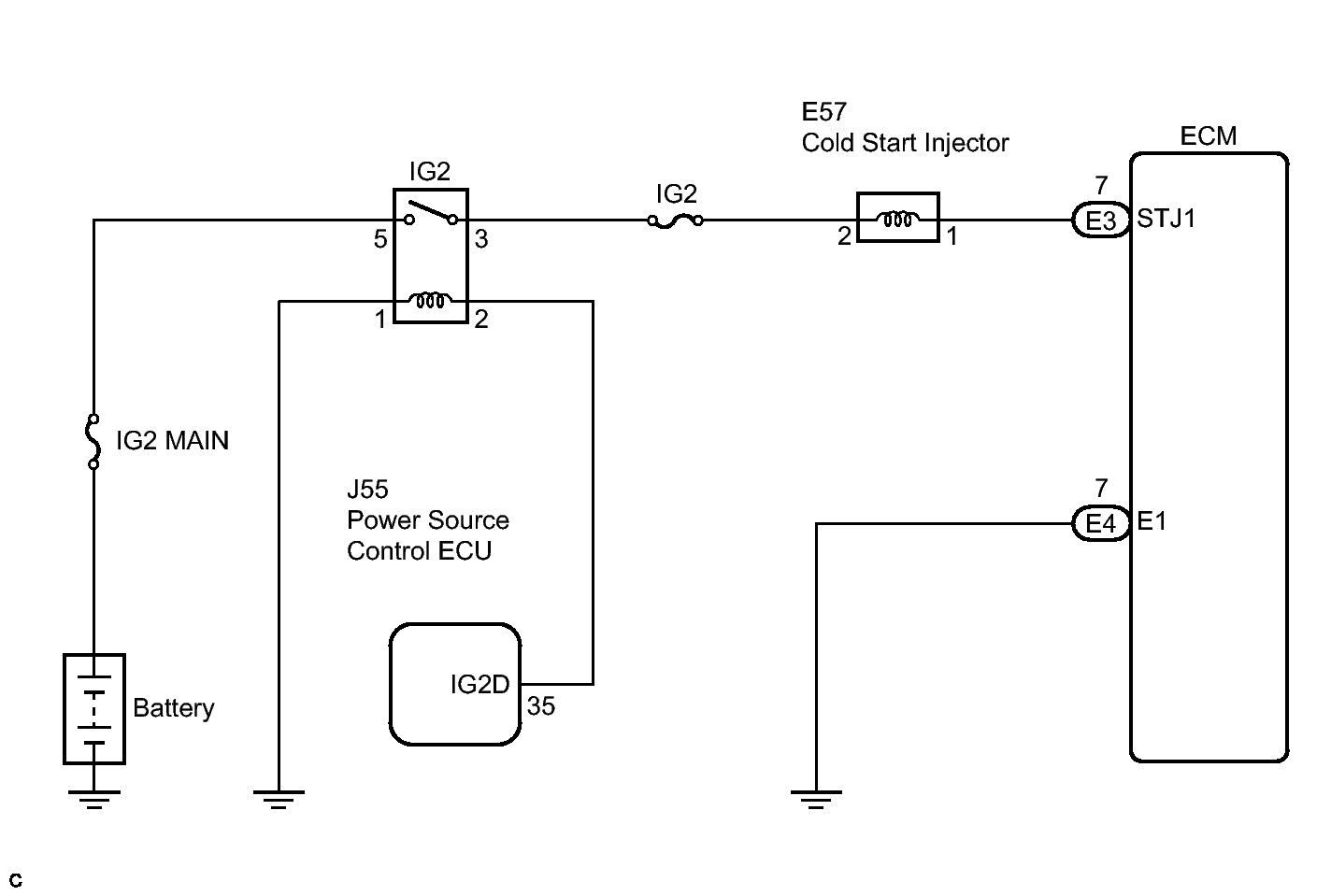

Fig 1: View Of Cold Start Injector Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
