ECM Power Source Circuit: Wiring Diagram

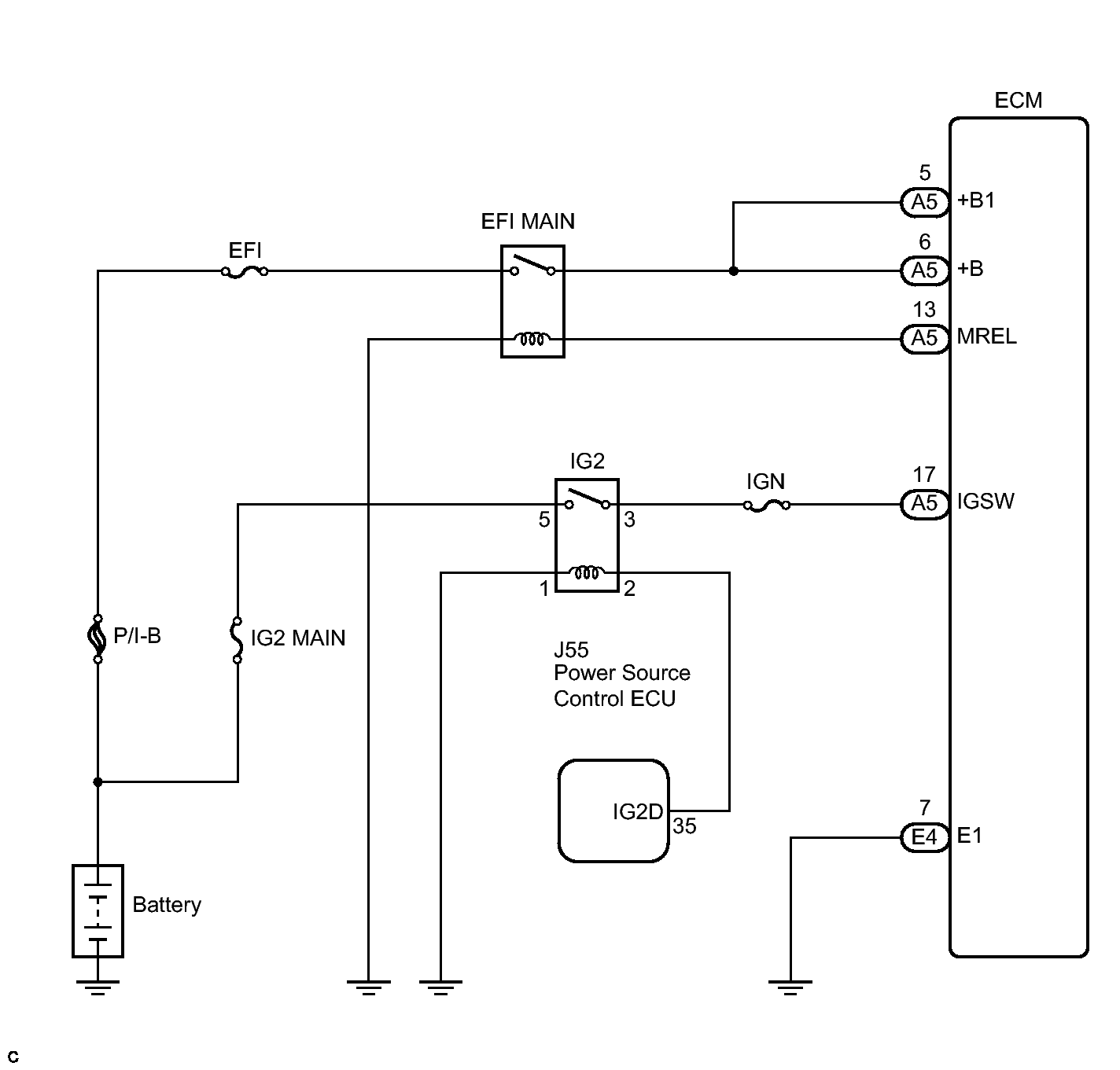

Fig 1: View Of ECM Power Source Circuit Wiring Diagram (1 Of 2)
GTY146093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
