VC Output Circuit: Wiring Diagram

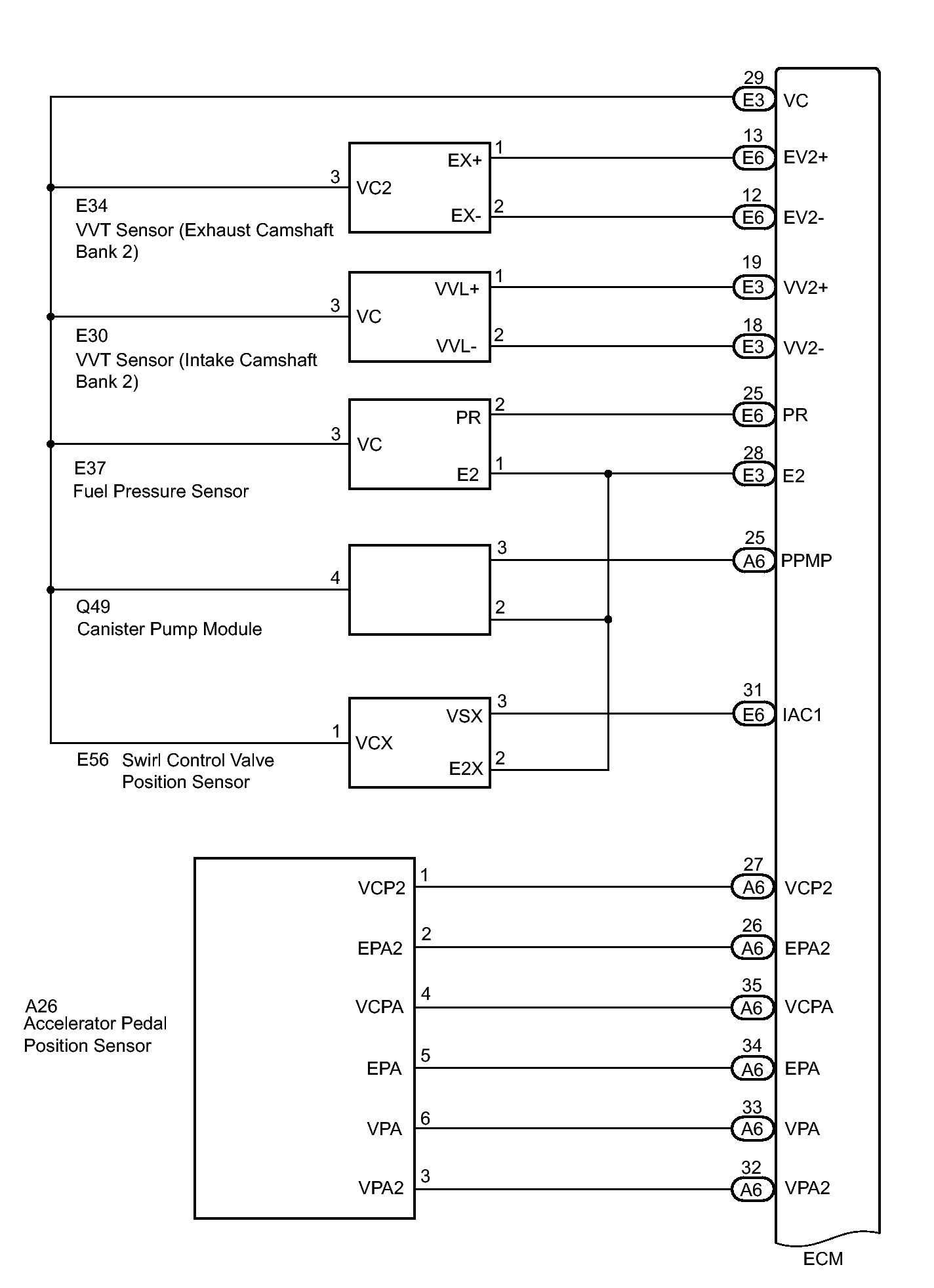

Fig 1: VC Output Circuit Wiring Diagram (1 Of 2)
GTY394673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

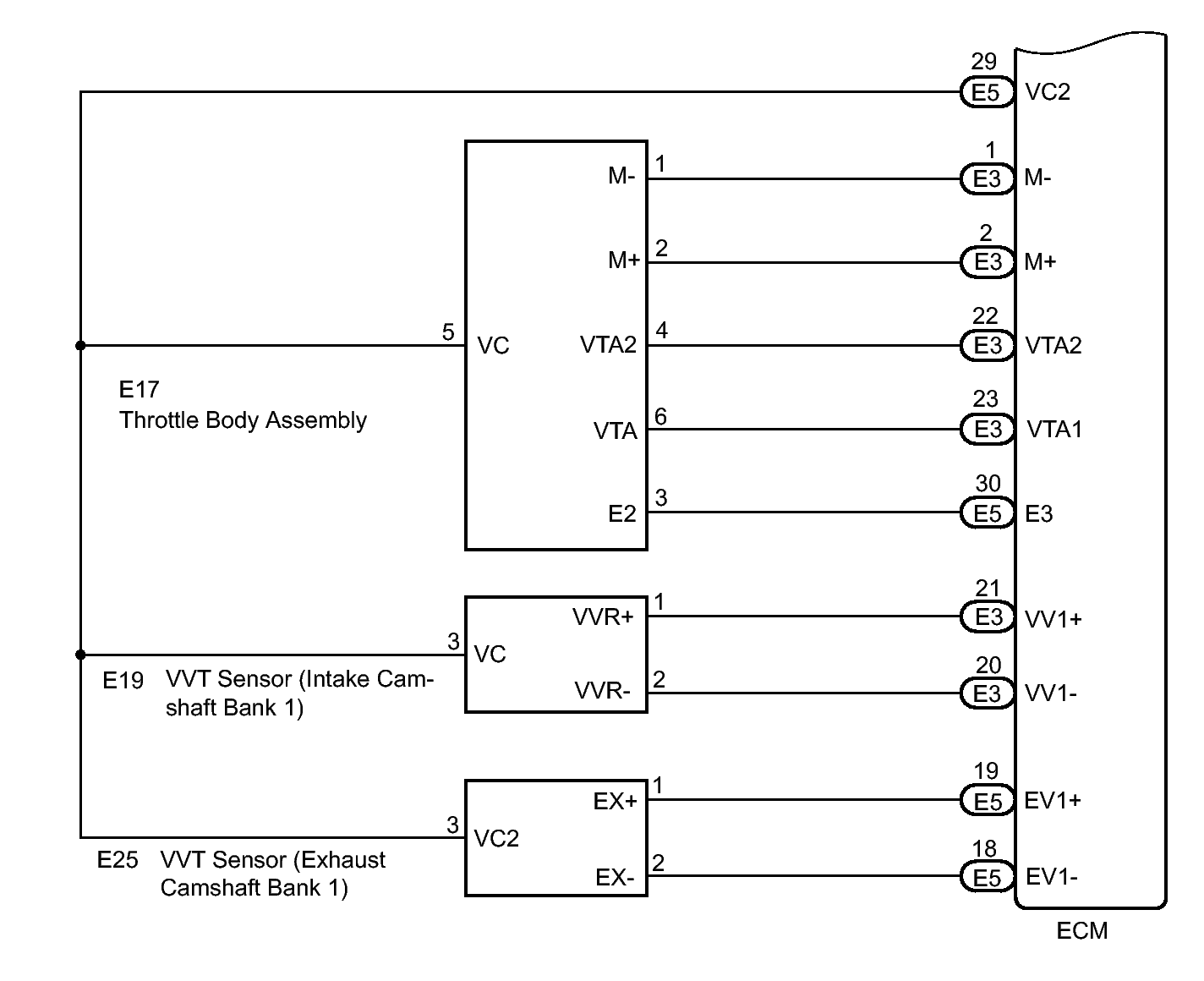

Fig 2: VC Output Circuit Wiring Diagram (2 Of 2)
GTY394096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
