Injector Driver: Installation: Installation

WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL INJECTOR DRIVER
1. Install the injector driver with the bolt and 2 nuts.

  Fig 1: Location of Injector Driver Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  NOTE:
  - Be careful not to drop or strike the injector driver.
  - The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
2. Connect the 3 connectors with wire harness locks and the connector to the injector driver. Move the lock lever in the direction indicated by the arrow to lock the connector.

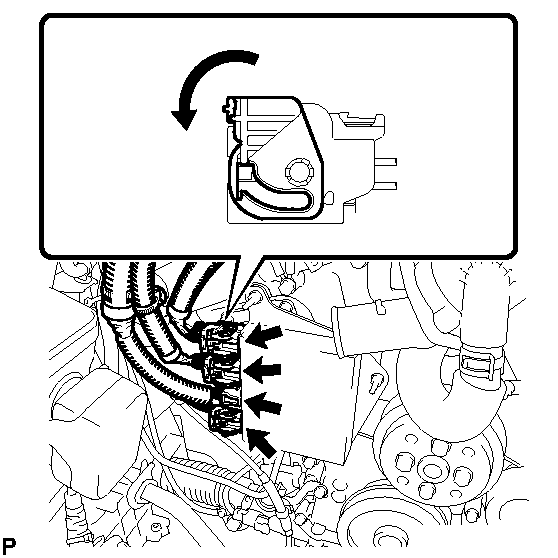

  Fig 2: Identifying Connectors With Wire Harness Locks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE COVER . Refer to INSTALLATION - Step 27
INSTALL NO. 1 INLET AIR CLEANER . Refer to INSTALLATION - Step 86
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 117
