System Diagram

WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

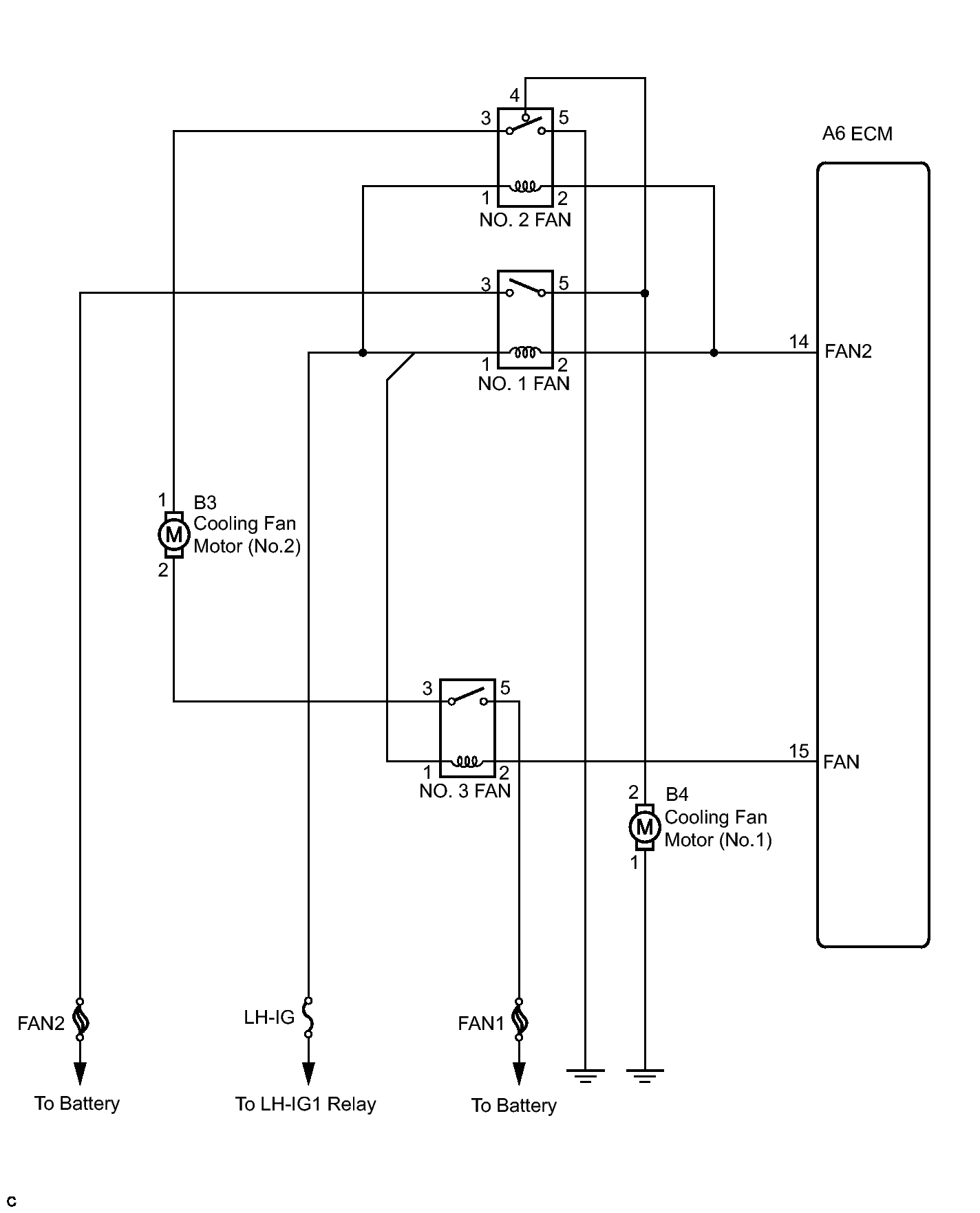

Fig 1: Cooling System Diagram
GTY146266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
