Parts Location: Illustration

WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

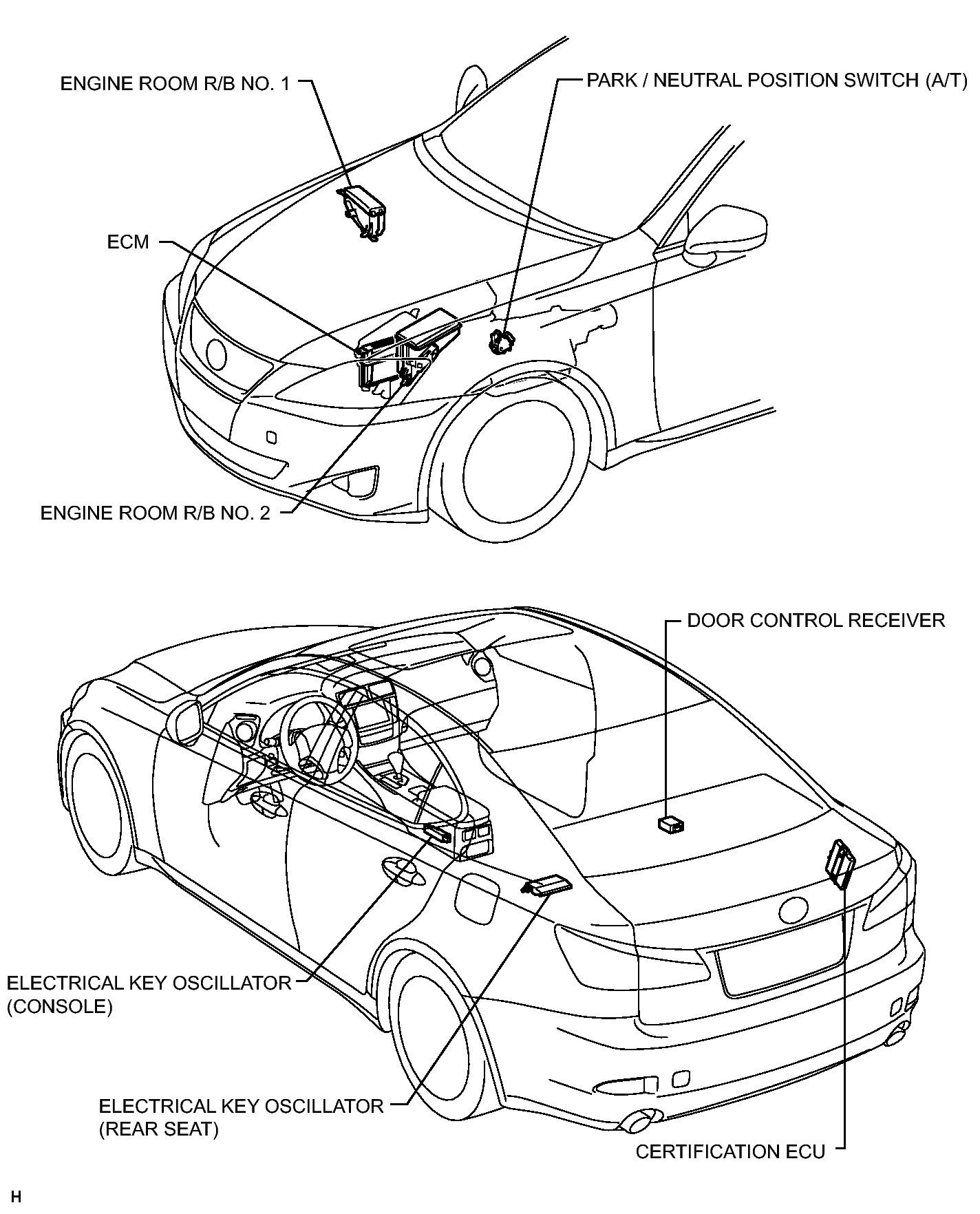

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (1 Of 2)
GTY119601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

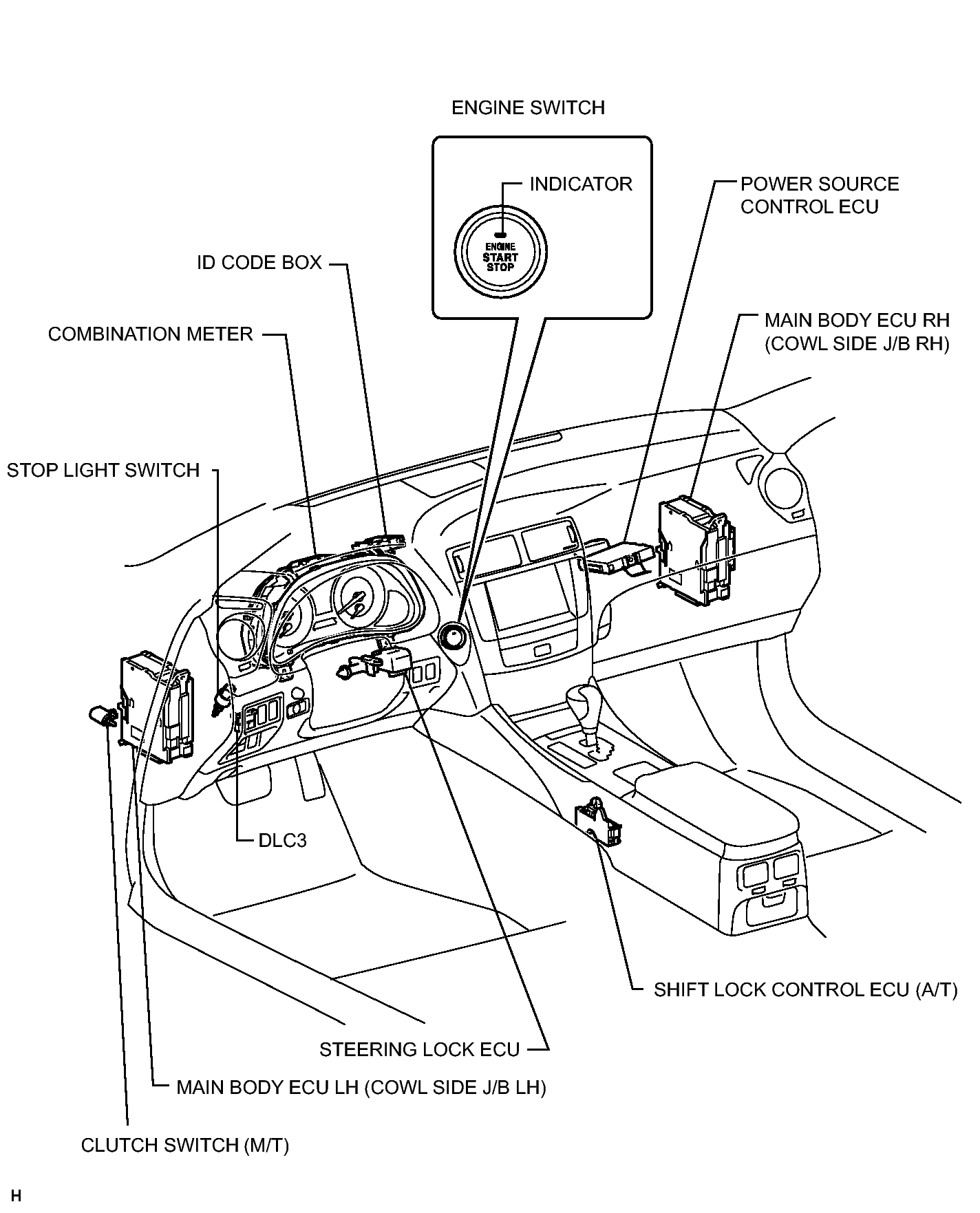

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (2 Of 2)
GTY119602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
