DTC B2788: IG2 Signal Malfunction: Wiring Diagram

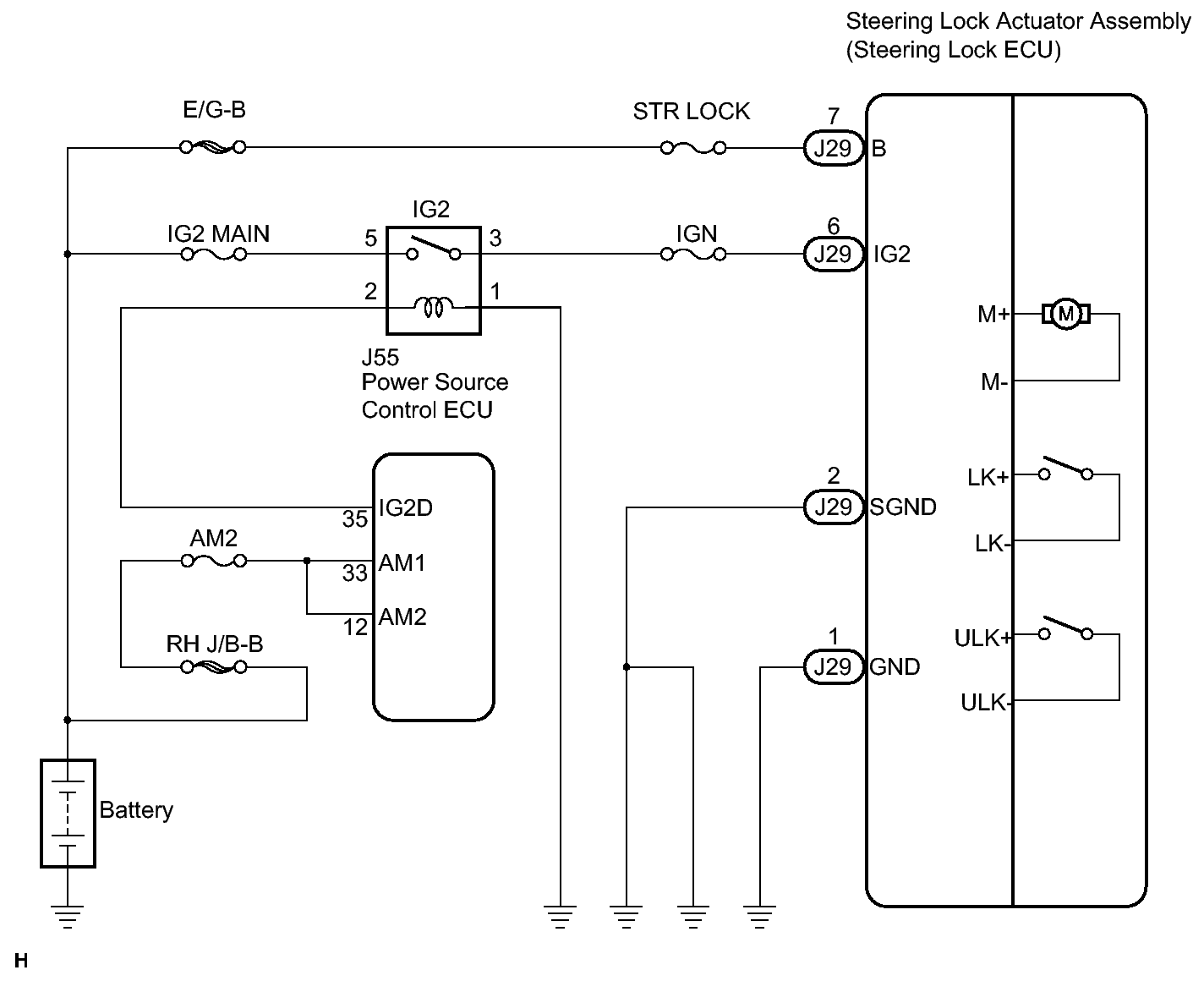

Fig 1: IG2 Signal Wiring Diagram

GTY394652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
