Windshield Glass: Installation: Installation

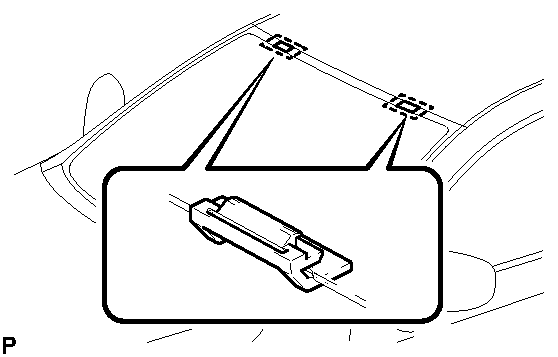

- INSTALL NO. 1 WINDSHIELD GLASS STOPPER
- Install 2 new stoppers to the vehicle body, as shown in the illustration.
- INSTALL NO. 2 WINDSHIELD GLASS STOPPER
- Coat the installation part of the stopper with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not keep any of the opened Primer G for later use.
- Do not apply too much primer.

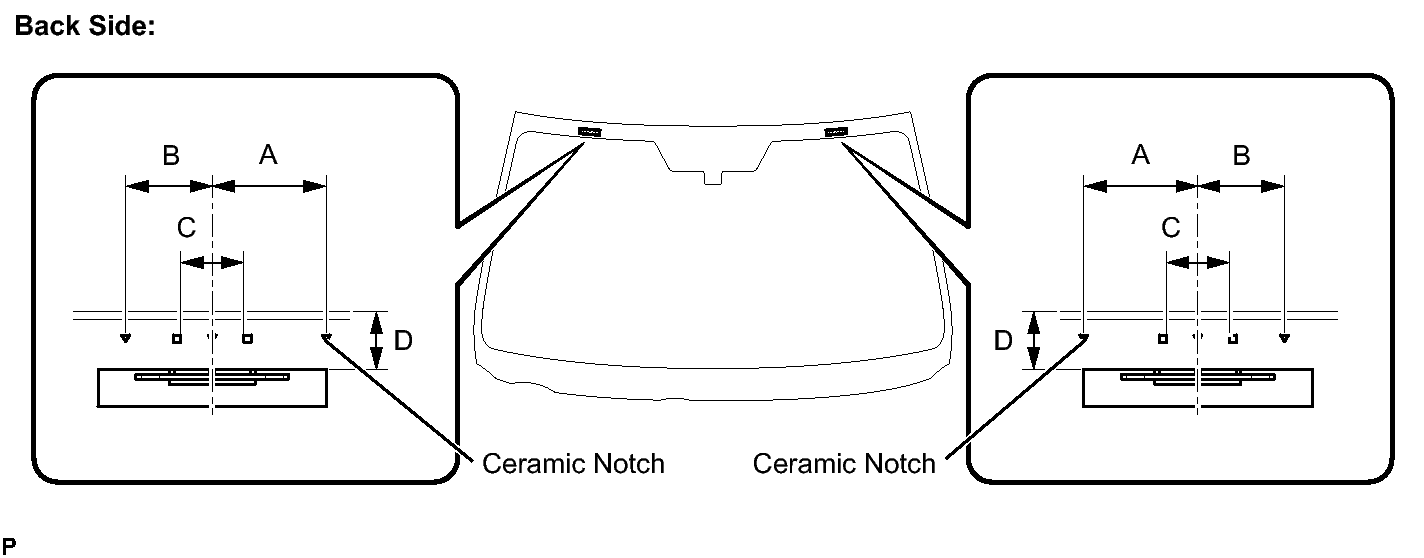

- Install 2 new windshield glass stoppers onto the glass, as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard dimension
Area Dimension A 40.0 mm (1.575 in.) B 30.0 mm (1.181 in.) C 25.0 mm (0.984 in.) D 14.2 mm (0.559 in.)
- Coat the installation part of the stopper with Primer G.
- INSTALL WINDSHIELD OUTSIDE MOULDING
- Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer G.
- Do not keep any of the opened Primer G for later use.

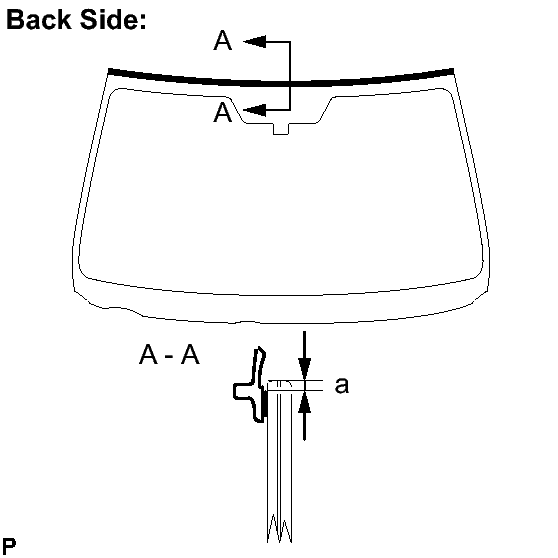

- Install the windshield outside moulding, as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard dimension
Area Dimension a 2.0 mm (0.079 in.)
- Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
- INSTALL WINDSHIELD GLASS ADHESIVE DAM
- Coat the installation part of the dam with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not apply too much primer.

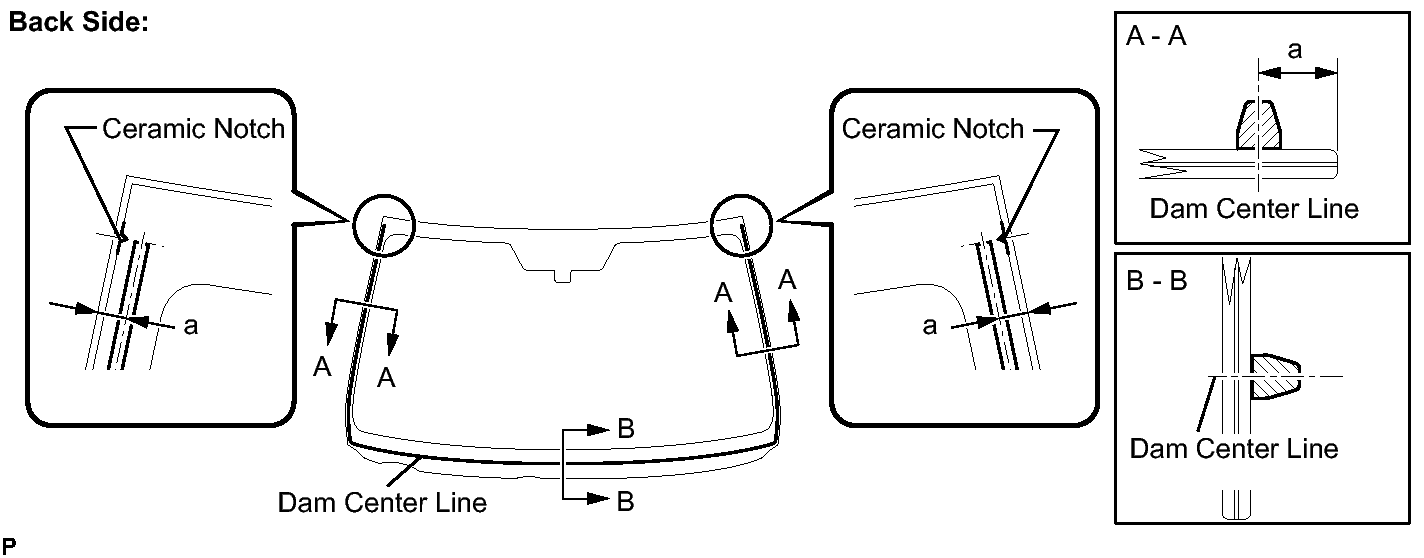

- Install a new dam, applying double-sided tape all the way around the glass except where the dam is installed, as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard dimension
Area Dimension a 9.5 mm (0.374 in.)
- Coat the installation part of the dam with Primer G.
- INSTALL WINDSHIELD GLASS
- Clean and shape the contact surface of the vehicle body.

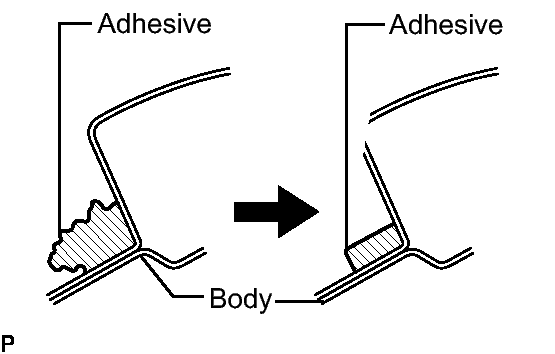

- Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.NOTE:
Be careful not to damage the vehicle body.
HINT:
Leave as much adhesive on the vehicle body as possible.
- Clean the contact surface of the vehicle body with a piece of shop rag saturated with cleaner.
HINT:
Even if all the adhesive has been removed, clean the vehicle body.
- Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
- Position the glass.
- Using a suction cup, place the glass in the correct position.
- Check that the whole contact surface of the glass rim is perfectly even.

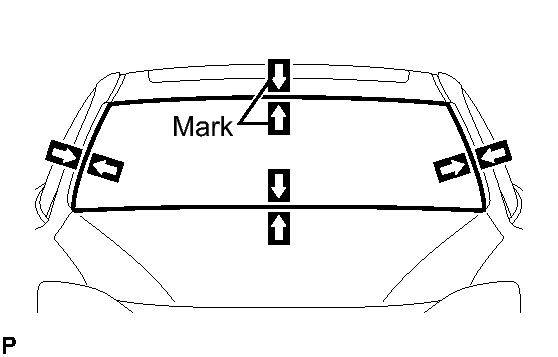

- Place reference marks between the glass and vehicle body.NOTE:
Check that the stoppers are attached to the vehicle body correctly.
HINT:
When reusing the glass, check and correct the reference mark positions.
- Remove the glass.

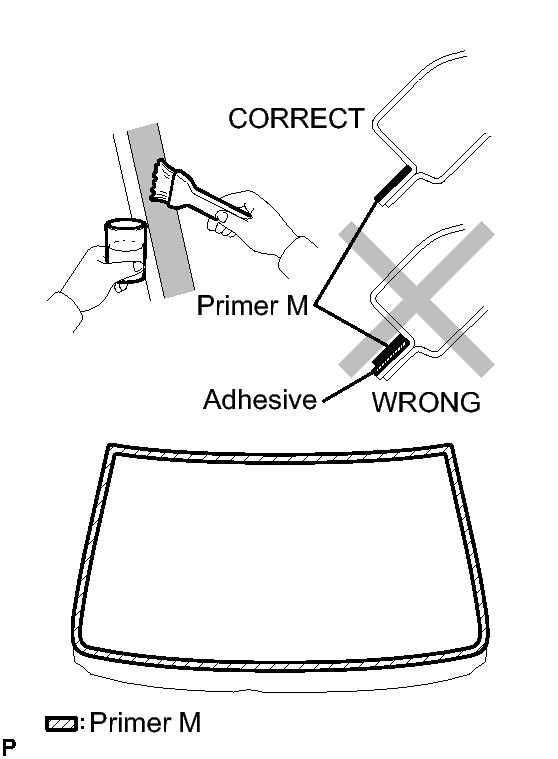

- Using a brush, coat the exposed part of the vehicle body on the vehicle side with Primer M.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer M.
- Do not keep any of the opened Primer M for later use.

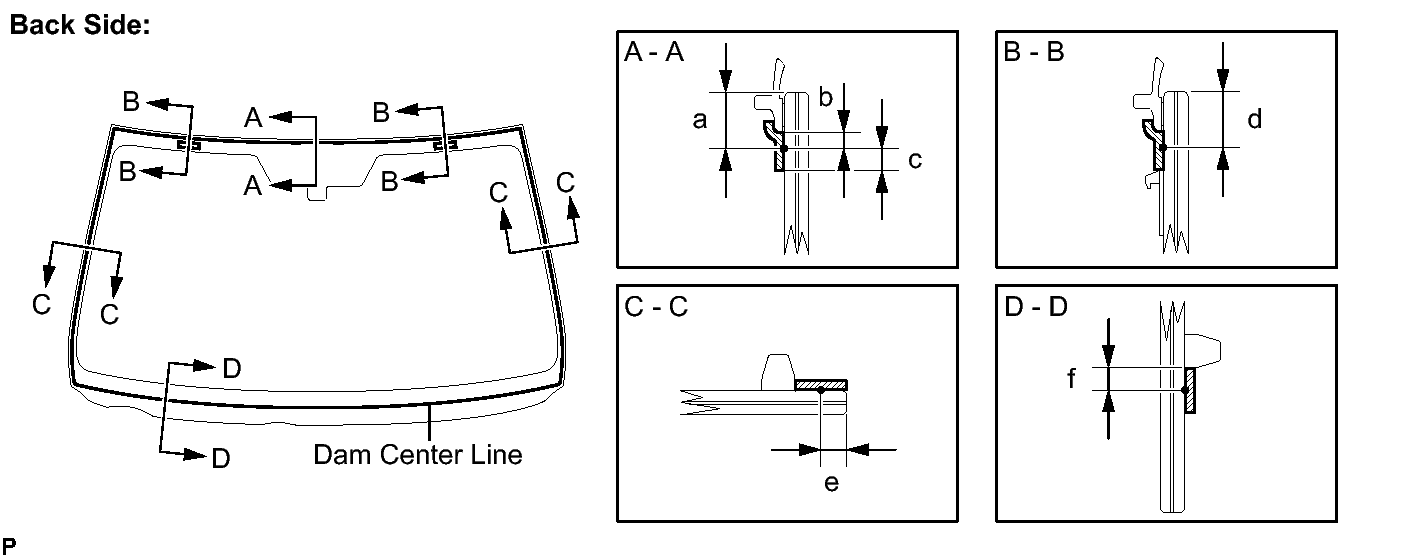

- Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard dimension
Area Dimension a 10.2 mm (0.402 in.) b 4.0 mm (0.158 in.) c 7.0 mm (0.276 in.) d 10.2 mm (0.402 in.) e 3.0 mm (0.118 in.) f 4.0 mm (0.158 in.) NOTE:- Allow the primer coating to dry for 3 minutes or more.
- Do not keep any of the opened Primer G for later use.
HINT:
If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
- Apply adhesive (Adhesive: Toyota Genuine Windshield Glass Adhesive or equivalent).
- Cut off the tip of the cartridge nozzle, as shown in the illustration.
HINT:
After cutting off the tip, use all adhesive within the time described in the table below.
Tack-free time
Temperature Tack-free Time 35°C (95°F) 15 minutes 20°C (68°F) 1 hour 40 minutes 5°C (41°F) 8 hours - Load the sealer gun with the cartridge.

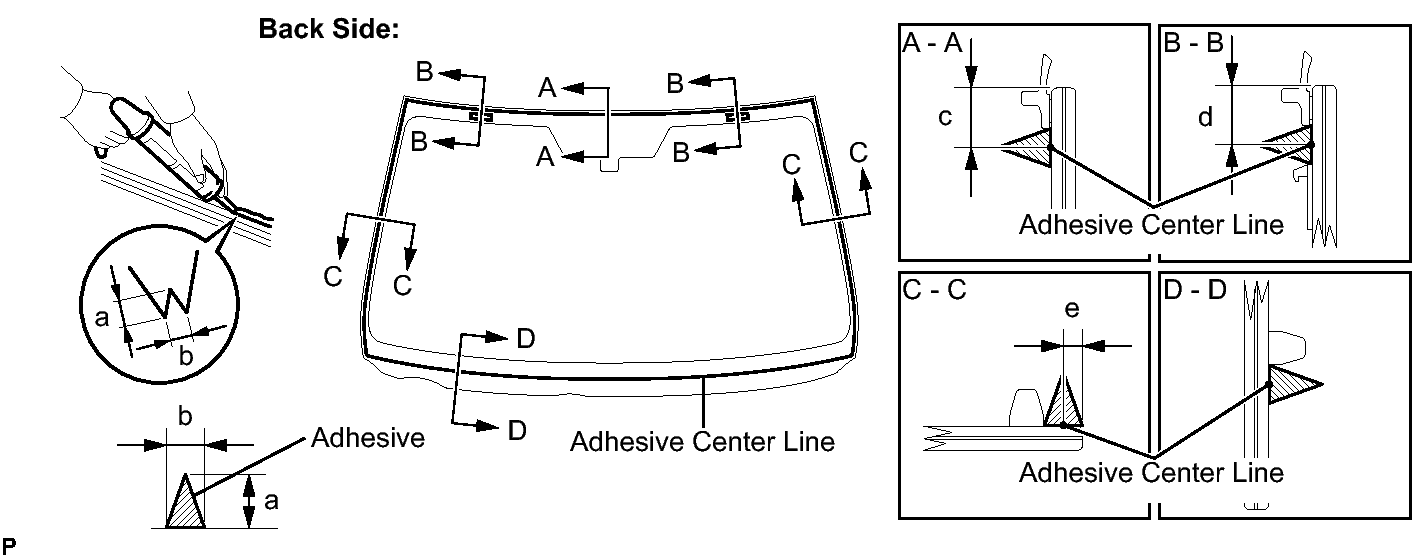

- Coat the glass with adhesive, as shown in the illustration.
Standard dimension
Area Dimension a 12.0 mm (0.472 in.) b 8.0 mm (0.315 in.) c 10.2 mm (0.402 in.) d 10.2 mm (0.402 in.) e 3.0 mm (0.118 in.)
- Cut off the tip of the cartridge nozzle, as shown in the illustration.

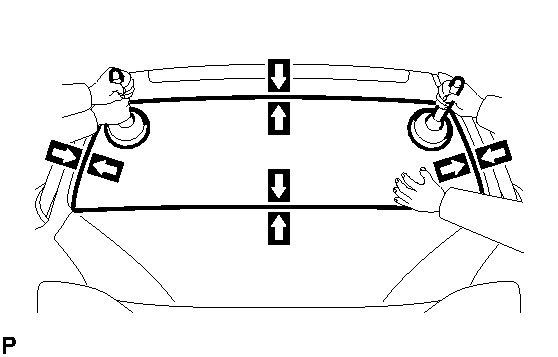

- Install the glass.
- Using a suction cup, position the glass so that the reference marks are aligned, and press it in gently along the rim.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Check that the stoppers are attached to the vehicle body correctly.
- Check the clearance between the vehicle body and glass.

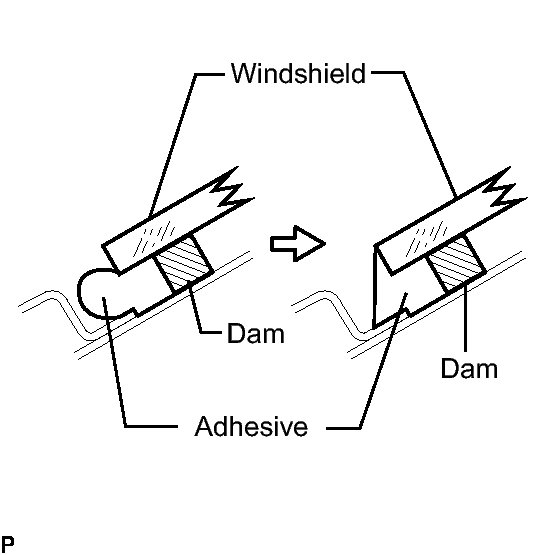

- Lightly press the front surface of the glass to ensure a close fit.
- Using a scraper, remove any excess or protruding adhesive.
NOTE:
Do not drive the vehicle for the time described in the table below.
Minimum time
Temperature Minimum time prior to driving vehicle 35°C (95°F) 1 hour 30 minutes 20°C (68°F) 5 hours 5°C (41°F) 24 hours HINT:
Apply adhesive onto the glass rim.
- Using a suction cup, position the glass so that the reference marks are aligned, and press it in gently along the rim.
- Connect each connector.
- Clean and shape the contact surface of the vehicle body.
- CHECK FOR LEAKS AND REPAIR
- Conduct a leak test after the adhesive has completely hardened.
- Seal any leaks with a sealer gun.
- INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof) . Refer to INSTALLATION - Step 12
- INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof) . Refer to INSTALLATION - Step 13
- INSTALL RAIN SENSOR TAPE . Refer to INSTALLATION - Step 1
- INSTALL RAIN SENSOR . Refer to INSTALLATION - Step 2
- INSTALL VISOR HOLDER . Refer to INSTALLATION - Step 14
- INSTALL VISOR ASSEMBLY LH . Refer to INSTALLATION - Step 15
- INSTALL VISOR ASSEMBLY RH
- INSTALL VISOR BRACKET COVER . Refer to INSTALLATION - Step 17
- INSTALL ASSIST GRIP SUB-ASSEMBLY . Refer to INSTALLATION - Step 18
- INSTALL INNER REAR VIEW MIRROR ASSEMBLY . Refer to INSTALLATION - Step 1
- INSTALL MAP LIGHT ASSEMBLY . Refer to INSTALLATION - Step 21
- INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER . Refer to INSTALLATION - Step 2
- INSTALL FRONT PILLAR GARNISH LH . Refer to INSTALLATION - Step 84
- INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 28
- INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) . Refer to INSTALLATION - Step 88
- INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) . Refer to INSTALLATION - Step 90
- INSTALL FRONT PILLAR GARNISH RH
- INSTALL FRONT DOOR OPENING TRIM COVER RH . Refer to INSTALLATION - Step 19
- INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
- INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to INSTALLATION - Step 4
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to INSTALLATION - Step 5
- INSTALL FRONT WIPER ARM HEAD CAP . Refer to INSTALLATION - Step 6
- INSTALL NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP
- INSTALL ROOF DRIP SIDE FINISH MOULDING LH
- INSTALL ROOF DRIP SIDE FINISH MOULDING RH
- INSTALL FRONT UPPER FENDER PROTECTOR LH . Refer to INSTALLATION - Step 9
- INSTALL FRONT UPPER FENDER PROTECTOR RH
- INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 116
- INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 115
- INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 117
